Showing all 5 results
-
Teledyne 8800 Controller – Multichannel Gas And Flame Monitoring System
The 8800 controller combines the reliability of our proven 7800 controller with advanced upgrades in one low cost package. The 8800 controller provides simultaneous display and alarm functions for up to 16 input variables. 8 or 16 channel display modes, and I/O modules arranged in groups of 8 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications. Features 8/16 channel display modes accept inputs from many sensor types and signal ranges. Input types include 4-20mA and Modbus Ethernet with Modbus TCP serves/client and web server for configuration and monitoring RS-485 serial ports allow simultaneous Modbus Master/Slave operation. Two standard ports and two optional isolated ports Three independent alarm levels per channel. “Relay Acknowledge” feature allows silencing of external audible devices during alarm conditions QVGA Color LCD displays monitored data as trends, bar graphs and engineering units. Readouts change colors to indicate alarms Five standard SPDT 5-amp alarm relays. HORN, FAULT and three programmable alarm relays Options cards such as 4-20mA inputs, 4-20mA outputs, discrete and programmable alarm relays Cal Mode offers push-button zero/span calibration for remote sensor applications Authorization Mode allows locking of critical settings Data Logger onto SD card allows recording of input values, and events for more than 10 years Power supply options include both 150 and 600 Watt Magnetic keypad standard for non-intrusive operation in potentially hazardous locations Enclosures include wall mount NEMA 4X - Non- Metallic, 316 SS, XP and Rack/Panel Mount 8800 Controller Input 12 bit 4-20mA into 150 ohms input impedance; includes +power supply terminals for each channel for routing power to two or three wire transmitters Serial Ports Two standard RS485 ports Two additional isolated ports optional Ethernet Port Modbus TCP Master/Slave port with web server (Gateway for Ethernet IP, Bacnet, and other protocols available) Alarm Relays 5 amp 30VDC or 250VAC resistive Form C Analog Outputs (Optional) 16 bit 4-20mA output. Max load 800 ohms with nominal 24VDC power supply Alarm Reset Two 10-60VDC Alarm Reset Input Terminals Digital Output 400mA @ VDC Display QVGA 320 x 240 pixel TFT graphic LCD with LED backlight Ambient Temperature Range -25 – +60 degrees C Power Supply 10 – 30VDC (24VDC nominal) 12 Watts max required 10-0172 option = 150 Watt 10-0307 option = 600 Watt Approvals CE Approved CSA C22.2 No 1010.1 and C22.2 No.152 for combustibles and ISA S82.02 CSA Class I Div 2 Grps A, B, C, D MAIN DATA SCREEN Displays all active channels on the same screen. Channel configurations include 16, active channels. Cells indicate alarm status by color. BAR GRAPH SCREEN Displays 16 channels at a time. Bar graphs change colors to indicate alarm status. 24 HOUR TREND SCREEN Displays 1 channel at a time as most recent 24 hour trend. Top data fields include current reading, max – min – average readings over the 24 hours, range, channel ID and engineering units. COMBINATION SCREEN Displays 1 channel at a time as most recent 30-minute trend, bar graph and large engineering units. Top data fields include current reading, max - min -average readings for trouble shooting, range, channel ID, and engineering units. Readings change color and flash on alarms. Flashing color becomes steady after acknowledge. ZONE SCREEN Displays all eight possible active zones. Alarm cells change colors and name field flashes indicating alarms. Allows user direct access to screen that shows which channels belong to each zone. Product Data Sheet -
Teledyne 8864 Controller – Multichannel Gas And Flame Monitoring System
The 8864 controller provides simultaneous display and alarm functions for up to 64 input variables. 16, 32, 48, and 64 channel display modes, and I/O modules arranged in groups of 16 channels, allow economical configuration of systems. This easy-to-configure, user friendly controller is ideal for centralizing display and alarm functions in critical multipoint monitoring applications. The similarity in function and user interface between the 8864 and the 16 channel 8800 makes usage of this family of controllers straightforward where both are used. Features 16, 32, 48, & 64 channel display modes accept inputs from many sensor types and signal ranges. Input types include 4-20mA, Modbus, and wireless options. Ethernet with Modbus TCP serves/client and web server for configuration and monitoring RS-485 serial ports allow simultaneous Modbus Master/ Slave operation. Two standard ports and two optional isolated ports Three independent alarm levels per channel. “Relay Acknowledge” feature allows silencing of external audible devices during alarm conditions QVGA Color LCD displays monitored data as trends, bar graphs and engineering units. Readouts change colors to indicate alarms CSA certified for Division 2 potentially hazardous areas Five standard SPDT 5-amp alarm relays. HORN, FAULT and three programmable alarm relays Options cards such as 4-20mA inputs, 4-20mA outputs, discrete and programmable alarm relays and bridge sensor inputs Cal Mode offers push-button zero/span calibration for remote sensor applications Authorization Mode allows locking of critical settings Data Logger onto SD card allows recording of minimum, maximum, and average values for one year Power supply options include both 150 and 600 Watt Magnetic keypad standard for non-intrusive operation in potentially hazardous locations Enclosures include wall mount NEMA 4X - Non- Metallic, 316 SS, XP and Rack/Panel Mount 8864 Controller Input 12 bit 4-20mA into 150 ohms input impedance; includes +power supply terminals for each channel for routing power to two or three wire transmitters Serial Ports Modbus Master and Slave RS485 ports equipped with Tx / Rx LEDs Ethernet Port Modbus TCP Master/Slave port with web server (Gateway for Ethernet IP, Bacnet, and other protocols available) Alarm Relays 5 amp 30VDC or 250VAC resistive Form C Analog Outputs (Optional) 16 bit 4-20mA output. Max load 800 ohms with nominal 24VDC power supply Bridge Inputs (Optional) 12 bit, 16 channel bridge input Display QVGA 320 x 240 pixel TFT graphic LCD with LED backlight5 LEDs show standard relay alarm status Ambient Temperature Range -25 – +60 degrees C Power Supply 10 – 30VDC (24VDC nominal) 12 Watts max required 10-0172 option = 150 Watt 10-0307 option = 600 Watt Approvals CSA C22.2 No 1010.1 and C22.2 No.152 for combustibles and ISA S82.02 UL 1604 / C22.2 No 213 (NEMA 4X = Division 2 Groups A,B,C,D,) EN55011 and EN61000 (CE Mark) MAIN DATA SCREEN Displays all active channels on the same screen. Channel configurations include 16, active channels. Cells indicate alarm status by color. BAR GRAPH SCREEN Displays 16 channels at a time. Bar graphs change colors to indicate alarm status. 24 HOUR TREND SCREEN Displays 1 channel at a time as most recent 24 hour trend. Top data fields include current reading, max – min – average readings over the 24 hours, range, channel ID and engineering units. COMBINATION SCREEN Displays 1 channel at a time as most recent 30-minute trend, bar graph and large engineering units. Top data fields include current reading, max - min -average readings for trouble shooting, range, channel ID, and engineering units. Readings change color and flash on alarms. Flashing color becomes steady after acknowledge. ZONE SCREEN Displays all eight possible active zones. Alarm cells change colors and name field flashes indicating alarms. Allows user direct access to screen that shows which channels belong to each zone. Product Data Sheet -

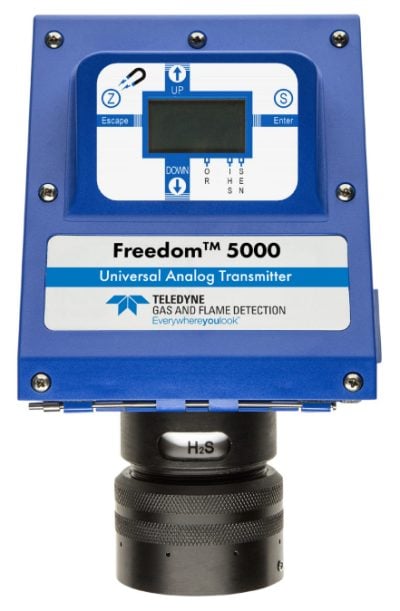

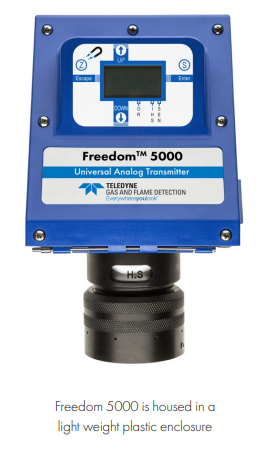

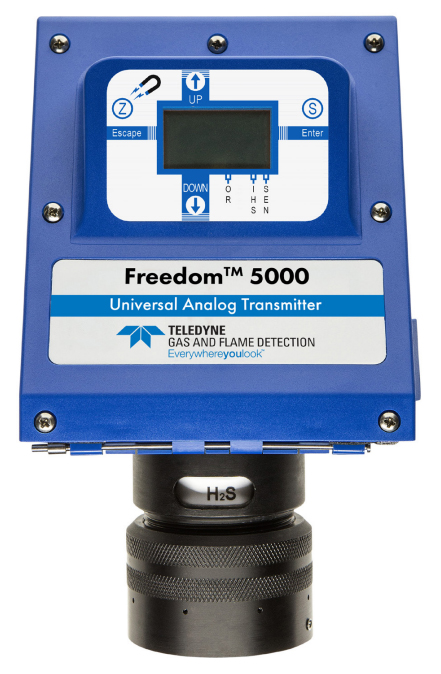

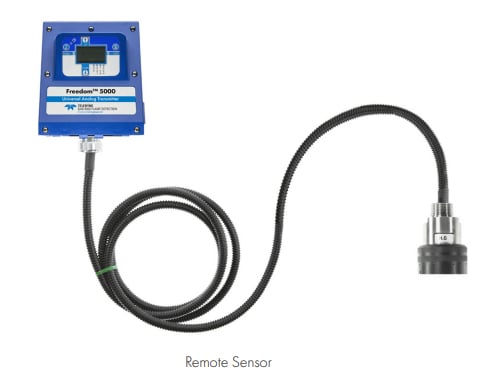

Teledyne Freedom 5000 Toxic Gas Detector

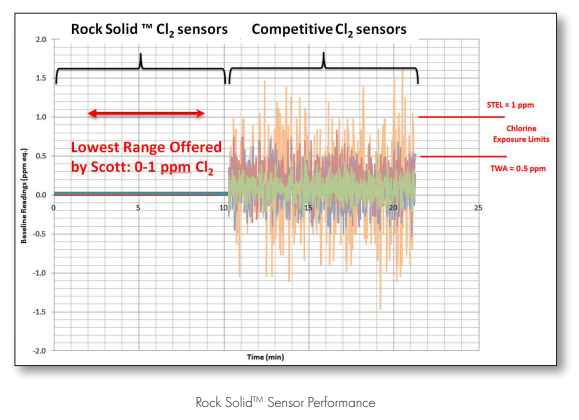

Making installation and everyday operation easy The Freedom Series 5000 are full-featured 4-20mA, loop powered transmitters designed to reliably detect oxygen and any of a number of toxic gases. Its universal electronics and flexible, user-friendly features drive down gas detection costs for almost any facility. Advanced Gas Sensors and Universal Electronics The Freedom series advanced GasPlus sensor technology combines with the Freedom’s universal electronics to simplify use and minimize maintenance requirements of your gas detection system. Every Teledyne Gas & Flame Detection instruments “smart” sensor provides data such as gas type, range, and calibration data to the universal electronics for automatic transmitter configuration. A built-in lithium battery keeps the sensor “hot,” which eliminates the need for sensor warm-up time. On board electronics enables users to easily zero and calibrate the sensor.. An E-connector eliminates pin alignments and makes sensor replacement quick and easy. Easy Installation, Operation and Maintenance The unique electrical design of the Freedom transmitter and sensor virtually eliminate false alarms due to RFI/EMI sources. The transmitter can be mounted directly to rigid conduit and is available with several optional adapters including wall/surface mount and a special “L” shaped bracket to allow mounting on top of flat surfaces such as gas cabinets. Freedom series transmitters are also available with quick connect 1/4 turn sample draw and (flat or round) duct mount adapters. The sensor can be ordered integral to the transmitter or remote on three feet of cable, perfect for mounting the sensor near ground level while keeping the display at eye level. Operating Freedom transmitters is simple and intuitive. After start-up, the transmitter automatically configures to the sensor's parameters. The “missing sensor indicator” alerts operators that the sensor is either missing or the sensor transmitter connection has been broken. Calibration is non-intrusive, performed by touching a magnet to the "Z" (zero), "S" (span), and up and down arrow markings on the enclosure. A programmable local inhibit feature and standard local display allows true one person calibration. Advanced features and smart sensor technology Standard Features of the Freedom 5000 Freedom from stocking additional electronics. Universal transmitter electronics for all gas models. Freedom from intrusive operation/calibration. A simple magnetic interface and local inhibit eliminates special tools or expensive IR remote controls. Freedom from sensor pins or wires. E-connector makes for quick easy installation. Freedom from field maintenance and calibration. Smart sensor technology permits sensor removal for remote calibration. Freedom from zero drift and interfering gases. Rock Solid Sensor Technology offers superior stability and selectivity. Freedom from sensor failure without warning. Built-in calibration factor notifies user of remaining sensor life. Freedom from RFI/EMI induced alarms. Design concept eliminates interference through electronic design versus shielding. Freedom from sensor warm-up times. An internal battery keeps the sensor “warm” for immediate start up. Freedom from corrosion. All plastic construction with conformal coated internal circuitry. Redundancy of Safety Features – gives confidence in the life-saving equipment and allows workers to focus on the critical job at hand. Ease of Use – provides users a simple-to-use gas detector that requires minimal training, increases operational efficiencies and reduces training costs. Low Cost of Ownership – lowers costs after initial sale through its rugged design, assembly and warranty policy enabling you to direct valuable funding to training and other equipment cost. We Make Sensors that Make a Difference Our team of research and development scientists work every day to advance sensor technologies and improve manufacturing techniques. The result – reliable, stable, and gas specific sensors including our Rock Solid series of high performance sensors. High Performance Gas Sensors Rock Solid high performance sensors use our proprietary technology that significantly enhances sensor performance. Rock Solid sensors can detect gas concentrations lower than other electrochemical gas sensor. Rock Solid sensors provide: Highest stability Lowest zero drift Greatest sensitivity Greatest specificity to the target gas Fastest speed of response and recovery time Rock solid Sensor technology Our advanced electrochemical, high performance Rock Solid sensors for the Freedom 5000 are available to detect many toxic gases. Chlorine Chlorine Dioxide Fluorine Hydrogen Bromide Hydrogen Chloride Hydrogen Fluoride Nitrogen Trifluoride Ozone Sulfur Dioxide Freedom 5000 Gas and sensor list: Ammonia (NH3) Arsine (AsH3) Carbon Monoxide (CO) Chlorine (Cl2) Rock Solid Chlorine Dioxide (ClO2) Rock Solid Fluorine (F2) Rock Solid Ethylene Oxide (ETO) Hydrogen Bromide (HBr) Rock Solid Hydrogen Chloride (HCl) Rock Solid Hydrogen Cyanide (HCN) Hydrogen Fluoride (HF) Rock Solid Hydrogen Sulfide (H2S) Nitrogen Dioxide (NO2) Nitrogen Trifluoride (NF3) Rock Solid Oxygen (O2) Ozone (O3) Rock Solid Silane (SiH4) Sulfur Dioxide (SO2) Rock Solid Sulfur Dioxide (SO2) Freedom 5000 sensor connections available Integral Sensor with Transmitter Separated Sensor with 3 ft of cable available with remote sensor, flowcell or duct mount configurations Freedom 5000 adapters available Rain Shield Flat Duct Adapter Round Duct Adapter (6 to 8 in diameter typical) Flow Cell Freedom 5000 transmitter mounting adapter Wall/Surface Mount “L” Bracket used for mounting horizontal surfaces Specifications and ordering information Freedom 5000 specifications Transmitter Enlosure NEMA-4X Noryl plastic with stainless steel screws and hinge 2 each 1/2 in FNPT Weight 1.0 lbs (0.45kg) without accessories Approvals CSA Ex ia IIC T4, AEx ia IIC T4 2002 1280868x Zone 0, Class 1, Division 1, Groups A, B, C and D (with conforming I.S. barrier) Class 1, Division 2, Groups A, B, C and D (without the need for an I.S. barrier) Common specifications CSA Class 1 Division 2 Groups A, B, C and D Self-Diagnostics Weak sensor indication; Electronic faults; Missing sensor; Sensor configuration (range and type) Repeatability +- 2% FS Linearity +- 2% FS Output 4-20mA Max Loop Road 2-Wire; 700 ohms at 24 VDC (22 mA based) Power 10 to 28 VDC 2-wire loop power, 0.5 Watts at 24 VDC Separated Sensor Up to 3 ft (0.9M) Display 3.5 digit LCD; 0 to 100% concentration bargraph; Inhibit Indication (IHB); Overrange Indication (OR); Low Cal Factor Indication – below 150 (SEN) Local Inhibit Programmable: 3.0 to 20mA Temperature Sensor: See Capabilities Chart Transmitter: -40° to 140°F (-40° to 60°C)* Note: at temperatures below 22°F display may not be visible Humidity Up to 99% RH, non-condensing (up to 100% R.H. with optional humi-shield) Not recommended for continuous extreme high/low humidity applications Product Data Sheet -
Teledyne Meridian Universal Gas Detector
Designed with safety and reliability in mind, the Meridian universal gas detector is suitable for use in SIL-2 and SIL-3-rated systems under the IEC 61508 standards, certified by TUV-Rheinland, an independent third-party agency. Third party SIL certification validates that the product meets the most rigorous standards for reliability and performance and confirms its ability to reduce your potential for downtime and increase your safety factor. (*SIL renewal pending) Features Minimal drift High specificity Digital ID Broader toxic gas detection The term “universal” is frequently used in the industry to characterize gas detectors that address both toxic and combustible gases, but it is rare to find instruments that truly live up to that claim. Upon close inspection, you will find that often the only characteristic that can be called “universal” is their user interface. In other words, the instrument provides a common user interface for both combustible and toxic gas detection. At Teledyne Gas & Flame Detection, we believe “universal” should be much more than a common user interface, and we applied this thinking to every aspect of the design of the Meridian universal gas detector. You will find that the Meridian universal gas detector is the industry’s first truly universal gas detection platform. Single detector head for all applications Whether you need an infrared or catalytic bead sensor to detect combustible gases or an electrochemical sensor for a toxic environment, the Meridian universal gas detector utilizes a single detector head to easily accept all sensor types. There is no requirement for distinct personality boards in the gas detector or different detector heads to make the instrument behave as a combustible or toxic gas detector. The Meridian gas detector accepts all sensor types in one detector. Simply attach the specific toxic or combustible sensor to the universal detector head and the Meridian gas detector will automatically determine the type of gas to be detected. Installation of the sensor is a simple plug-and-play action. At Teledyne Gas & Flame Detection, we are always looking to anticipate your future needs. We designed the Meridian gas detection platform to be future proof, allowing you to take advantage of new sensing technologies from Teledyne Gas & Flame Detection while maintaining ease of use and peace of mind. Single of accessories The Meridian gas detector has a single set of accessories for your application needs—another merit of a truly universal gas detection platform. Because all accessories for the Meridian gas detector are designed for the universal detector head, there is no need for purchasing separate accessories for toxic and combustible applications. The following accessories are available for the Meridian Transmitter: CALIBRATION ADAPTER: Easily attaches to the sensor housing to deliver calibration gases to the detector head. FLOW CELL: Allows customers to bring a gas sample to the sensor. DELUGE GUARD: Protects the sensor from heavy rain and water spray from plant wash down routines. DUCT MOUNT KIT: Allows you to remote mount sensors onto ventilation ducts to verify. SENSOR SIMULATOR: A useful commissioning and trouble-shooting tool to locally simulate gas concentration and trigger a response from the detector. UNIVERSAL MOUNTING KIT: With predefined cut outs, you can easily replace older gas detectors with the Meridian detector, making it an ideal choice for retrofit applications. SUN SHIELD: Deflects direct sunlight from the Meridian reducing glare on the display. It also helps reduce the internal temperature of the transmitter. One detector with global approvals and a plug-and-play design Safety integrity level: Designed with safety and reliability in mind, the Meridian universal gas detector is suitable for use in SIL-2 and SIL-3-rated systems under the IEC 61508 standards, certified by TUV-Rheinland, an independent third-party agency. Third party SIL certification validates that the product meets the most rigorous standards for reliability and performance and confirms its ability to reduce your potential for downtime and increase your safety factor. Key regulatory approvals: CCSAUS ATEX IECEx INMETRO SIL-2 certified by TUV-Rheinland (*SIL2 renewal pending) Global certifications and approvals The Meridian gas detector is certified using the highest international standards for global use. Our goal is to offer customers one instrument that can be used across regions. So whether you procure the instrument for use in a chemical plant in North America, on an FPSO in Latin America or in an oil refinery in Europe or Asia, the instrument will have the necessary approvals required for use in that region. Unlike industry standard offerings, the Meridian gas detector is not a collection of gas detectors, each certified for use in a particular region. What makes it truly universal is that it is a single detector that has all the required approvals for global use. Advancement in Sensor Technology At Teledyne Gas & Flame Detection, we believe in innovation with a purpose. To that end, we made a number of advancements in our sensor technology with the Meridian universal gas detector to deliver additional value to our customers and reduce their overall cost of ownership. Sensor replacement without declassifying the area The Meridian gas detector’s intrinsically safe, plug-and-play sensor design allows you to perform sensor replacements without powering down the instrument. You no longer need to declassify an area during sensor replacement. This allows you to maintain your plant production uptime and maintain a safe working environment for workers at the same time. Toxic sensors offer range invariant calibration Sensor calibration, while absolutely necessary, can be a very challenging and timeconsuming activity. To help our customers reduce operational hazard and maintenance cost, we have designed a toxic sensor technology that is linear throughout and range agnostic. With the Meridian gas detector, you can calibrate a toxic sensor to a particular gas level and then make adjustment to the range later without having to re-calibrate the sensor to the new range. For example, to optimize maintenance workload, you can calibrate sensors in a batch in the lab and set them to a default range. Upon installation, the range on the sensors can be adjusted to the requirements of the specific location. The range on the sensor can be readjusted anytime to the set of pre-defined ranges by the end user. This sensor design also provides flexibility in easily calibrating sensors where a specific gas range is inaccessible or unavailable. Simply calibrate the sensor with an available surrogate gas range and then readjust the sensor range to the set of predefined ranges available for that sensor. Automantic sensor voltage detection and adjustment To minimize installation and commissioning time, the Meridian automatically detects current voltage and makes the required voltage adjustments for catalytic bead sensors without intervention from the installer. This reduces installation time and also the required tooling expertise necessary for sensor installation. Complete sensor range & Best-in-class sensor performance Full-range detection The Universal Gas Detection System detects a full range of combustible and toxic gases. Multiple Sensors The Meridian gas detector allows up to three sensors to be attached to a single instrument. Use the multi-sensor detector to: Monitor for toxic and combustible gases from the same detector. Accurately detect gases particularly difficult to detect due to cross interference from other gases. Reduce your overall cost per point of detection while increasing overall safety. Remotely mount sensors up to 100 feet from the gas detector to meet requirements of specific applications. Combustible gases Acetaldehyde Decane Isobutane Pentane Acetone Diethyl Ether Isobutylene Propane Acetylene Ethane Isopentane Propylene Ammonia Ethanol Isopropanol Propylene Oxide Benzene Ethyl Acetate Methane Styrene Butadiene Ethylbenzene Methanol Tetrahydrofuran Butane Ethylene Methyl Chloride Toluene Butanol Ethylene Oxide Methylene Chloride Vinyl Chloride Butyl Acetate Heptane Methyl Ethyl Ketone (MEK) Xylene Chlorobenzene Hexane Octane Cyclohexane Hydrogen Octamethyl Trisiloxane Toxic Gases Ammonia Hydrogen Cyanide Bromine Hydrogen Fluoride Carbon Monoxide Hydrogen Sulfide Chlorine Nitrogen Dioxide Chlorine Dioxide Oxygen Fluorine Ozone Hydrogen* Silane Hydrogen Chloride Sulfur Dioxide Rock Solid Sensor available for toxic gases highlighted in bold. The Rock Solid Advantage: More Reliable, Accurate Detection Minimal drift: Performs reliably in harsh real-world environments by significantly reducing effects of temperature and humidity. High specificity: Allows for much lower interference from other gases than conventional gas sensors, reducing cross interference from other gases present and reduces the likelihood of a false alarm. Digital ID: Provides automatic recognition when sensors are replaced, reducing the likelihood of user error during maintenance in the field. Broader toxic gas detection: Several ranges are available for each gas to optimize the sensor’s response in the environment. The right choice for your Gas Detection application Making the best decision for today One product for toxic and combustible applications with global approvals Reduces inventory costs Reduces training costs Simplifies installation Easy to install, commission and train your instrumentation workers Reduces start-up time Reduces labor associated with initial installation Reduces risk for installer error Rock Solid sensing technology offers accurate and reliable detection Reduces the impact of environmental factors Improves safety factor of the facility Advanced communication protocols offer detailed diagnostics data allowing for proactive maintenance and a safer environment Offers flexibility in developing your gas detection system through industry standard communication protocols Increases safety by allowing improved access to real-time information on the detector status and environment Incorporation of a SIL-2-rated device into your facilities’ operation for industry validated best-in-class performance (*SIL2 renewal pending) Making the best decision for tomorrow Ability to incorporate new sensing technology in the future Future proof plug-and-play design allows all future sensing technologies from Teledyne to easily integrate into the Meridian gas detector Ability to seamlessly incorporate new communication protocols Stay current on industry trends and take advantage of new industry standard communications protocols as they become available on the Meridian gas detection platform—another example of future proof design Reduce maintenance time and cost associated with sensor calibration Innovative sensor design allows for bench calibration and range invariant calibration for toxic sensor, which optimize ongoing maintenance workloads and offer significant cost savings Teledyne gas & Flame Detection Global Service Network and warranty system Reduce cost, waste and environmental impact with an environment-friendly sensor design Commit to green technology initiatives and environmental stewardship Communication Protocols: Designed for global use, the Meridian universal gas detector supports industry standard protocols for integration into any industrial network. Support for digital protocols allows for advanced diagnostics data to be available, making it possible to take proactive measures to maintain a safe environment and lowering your overall cost of ownership. Standard, wired protocols 4–20 mA Modbus Optional protocols WiredHART Product specification Certifications Global Approvals IECEx, cCSAus, ATEX, INMETRO INDUSTRY CANADA, CE, SIL-2 (Third Party Certification by TUV-Rheinland) Area Classification Class I Div. 1 Group ABCD, Class II Div. 1 Group EFG, Class III Equipment Group I/II, Zone 0/20 & Zone 1/21, IIC Environmental Operating Temperature -40° to 75° Celsius Humidity 5–95% RH (non condensing) Storage Temperature -55° to 75° Celsius Specifications Power 2 wire, 3 wire, 4 wire Operating Voltage 3/4 wire 10-30 VDC (24 VDC nominal) Operating Voltage 2 wire 18-30 VDC (24 VDC nominal) Power Consumption 2.2 - 3.2 Watts based on sensor configuration Add 2.6 Watts to any configuration if heated display is used Enclosure Material Copper-free aluminum, 316 stainless steel Enclosure Ingress Protection NEMA 4X, IP66 Terminal Junction Box Material Copper-free aluminum, 316 stainless steel Terminal Junction Box Conduit Connection 3/4" NPT (M20 adapter available) Communication 4–20 mA, MODBUS; Optional HART Maximum 4–20 loop load, OHMS (@24 VDC) 680 Ohms current source 680 Ohms current sink Alarms 3 programmable alarms with set and reset (adjustable deadband); 1 fail safe system fault Relays 4 Form C relays, rated 5 Amp at 30 VDC/240 VAC, resistive loads Display Graphical LCD display visible in bright sunlight. Display indicates Sensor Name, Gas Name, Full Scale of Range, Gas Concentration, Fault, Alarm Status, Trend Graph with selectable time scale showing current reading, set points and full scale. Display provides simple, intuitive calibration instructions and guides user through the calibration process. Languages English, Portuguese, French, Spanish, Chinese, Russian User Configuration Control Transmitter GUI, HART hand-held Communicator, MODBUS User Interface Access Control Transmitter provides controlled access to sensor range, alarm settings and other safety functions; password protection for secure configuration control Memory Non-volatile memory ensures configuration parameters are retained in the event of power loss Sensor specifications Sensor Types Combustible: Catalytic bead Electrochemical: Standard and Rock Solid sensors Number of Sensors Supports up to 3 sensors per detector Installation Weight Aluminum enclosure: 6.5 lbs (3 kg); Stainless steel enclosure: 11 lbs (5 kg) Wiring Detector accepts industry standard 2-wire, 3-wire or 4-wire inputs Product Data Sheet -
Teledyne SafEye Open Path Combustible Gas Detector
The SafEye Open Path Detector is an innovative, next generation solution to open path combustible gas detection. It can replace multiple point detectors, detects multiple gases at once, and is durable, proving to be a smart, cost efficient choice for combustible gas detection. Features Three color LED gives a quick visual of unit status Intrinsically Safe communication port can be used with HART® Hand-Held in non-safe areas for setup and diagnostics Heated optics provide unfettered Detection in most environments Long range, up to 200 meters, reduces number of units required Fast response (< 3 seconds) gives quick alert to hazards Low maintenance requirements saves time and money Multiple regulatory approvals Connects easily to existing systems User programmable functions allow customization Event recorder keeps track of all alerts and warnings High reliability and a three-year warranty provide peace of mind Reliable open path gas detection Long range, fast detection and lower cost of ownership Save costs in line-of-sight applications One SafEye Open Path Detector can replace up to 20 point combustible gas detectors in line-of-sight applications, saving installation and ongoing maintenance costs. With the SafEye there are only two units to service and the maintenance requirements are minimized compared with point detectors. Additionally, there is only one consumable to replace periodically; SafEye Xenon Flash Bulb has a 10 year warranty. Detect multiple combustible gases simultaneously The SafEye IR sensor can detect multiple combustible hydrocarbon gases at the same time - perfect for facilities with multiple hydrocarbon gases to monitor, such as C1-C8 hydrocarbons (Methane, Ethane, Ethylene, Propane, Propylene, n-butane, Isobutane, 1, 3-butadiene, Isobutylene, Alkanes, Alkenes, Naphthenes, Benzenes). Handle tough environments with confidence, longer Robustly designed to handle the toughest work environments and maintain a long operating life, the SafEye Open Path Gas Detector is equipped with 316L stainless steel casings and mounts, coated circuit boards for protection, and is SIL-2 approved per IEC61508. Additionally, the SafEye detector meets MIL-C-810C standards for humidity, salt, fog, vibration, mechanical shock and temperature extremes, while the housings meet IP66, IP68 and NEMA 250 6P water and dust egress standards. Accessories Commissioning Kit PN 8000449 USB/RS485 Harness PN 8000453 HART® Hand-Held Communicator Kit PN 8000451 Commissioning kit includes: Alignment Telescope, Magnetic Mode Selector, Function Check Filters and socket keys. Connect to your PC to adjust detector settings. Only for use in Safe Areas. Tool to connect to the detector to view, change and maintain settings. While we may be more well-known for its long history in the fire safety industry, it has also proudly served the gas detection and protection industry for over 50 years. The SafEye Open Path Detector is part of the newest generation of gas detection equipment, proving to be yet another smart solution innovatively designed with customer needs and safety as first priority, always. Specifications and ordering information Product Specifications Detector /Source with Tilt Mount Dimensions (each) 10.5 x 11.4 x 5.1 inch (267 x 288 x 130 mm) Detector/Source with Tilt Mount Weight (each) 15.2 lbs (6.9 kg) Enclosure and Tilt Mount Material 316L Stainless Steel Operating Temperature Range / Humidity -67oF to 149oF -55oC to 65oC 0 – 95% RH (non condensing) Minimal Detectable Gas Level 0.15 LEL.m Communication 4-20 mA, MODBUS®, HART® Enclosure Ingress Protection NEMA 250 6P type, IP66/IP68 Electrical Connections 3 or 4 wire connections 10 – 32 VDC 6 Watts Max per unit Electromagnetic Compatibility EMI/RFI protected per EN50270 Approvals ATEX/IECEx: II 2(2)G D, Ex db eb [ib Gb] IIB+H2 T4 Gb, Ex tb IIIC T135oC Db, Ta = -55oC to +65oC FM/FMC: Class I Div. 1 Groupe B, C et D Class II/III Div. 1 Group E, F et G DNV: Type Approval Certification Certificate No. A-13607 SafEye Open Path Detector Kits OPGD-901-C-111 SafEye Model 20 (7-20 m Range), ATEX, M25 OPGD-901-C-112 SafEye Model 20 (7-20 m Range), ATEX, 3/4" NPT OPGD-901-F-111 SafEye Model 20 (7-20 m Range), FM, M25 OPGD-901-F-112 SafEye Model 20 (7-20 m Range), FM, 3/4" NPT OPGD-902-C-211 SafEye Model 40 (15-40 m Range), ATEX, M25 OPGD-902-C-212 SafEye Model 40 (15-40 m Range), ATEX, 3/4" NPT OPGD-902-F-211 SafEye Model 40 (15-40 m Range), FM, M25 OPGD-902-F-212 SafEye Model 40 (15-40 m Range), FM, 3/4" NPT OPGD-903-C-311 SafEye Model 100 (35-100 m Range), ATEX, M25 OPGD-903-C-312 SafEye Model 100 (35-100 m Range), ATEX, 3/4" NPT OPGD-903-F-311 SafEye Model 100 (35-100 m Range), FM, M25 OPGD-903-F-312 SafEye Model 100 (35-100 m Range), FM, 3/4" NPT OPGD-904-C-411 SafEye Model 200 (80-200 m Range), ATEX, M25 OPGD-904-C-412 SafEye Model 200 (80-200 m Range), ATEX, 3/4" NPT OPGD-904-F-411 SafEye Model 200 (80-200 m Range), FM, M25 OPGD-904-F-412 SafEye Model 200 (80-200 m Range), FM, 3/4"NPT Each kit contains source, detector and two Tilt Mounts. SafEye Accessories OPGD-888270 Tilt Mount OPGD-799225 Pole Mount (U-Bolt 5 inch) OPGD-888247-1 Commissioning, alignment and optical verification kit - Methane OPGD-888247-2 Commissioning, alignment and optical verification kit - Propane OPGD888247-3 Commissioning, alignment and optical verification kit - Ethylene OPGD-888815 HART Hand-Held Harness Kit OPGD-794079 USB/RS485 Harness Converter Kit OPGD-888263 Sunshade, Stainless Steel OPGD-888260-3 Function Check Filter Warning Level - Methane OPGD-888260-4 Function Check Filter Alarm Level - Methane OPGD-888260-1 Function Check Filter Warning Level - Propane OPGD-888260-2 Function Check Filter Alarm Level - Propane OPGD-790285 Magnetic Mode Selector Product Data Sheet
