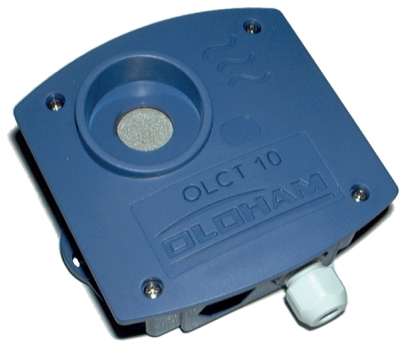

Oldham Simtronics OLCT10 Toxic Gas Detector
Bulk Orders
Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote
Designed for commercial applications, OLCT 10 detector perfectly suit the protection of equipment and personnel in presence of combustion and exhaust gases or refrigerants (freons) in ambient air.
Rugged, small, easy to install and operate, these detectors combined with the MX 32 control unit meet demanding user requirements.
Features:
- Electrochemical and semiconductor sensors
- 4-20 mA output signal
- Dust and humidity resistant (IP65)
- Fast and accurate response
- Up to 5 detectors on same line (CO, NO, NO2)
Applications:
- Cold rooms
- Car parks

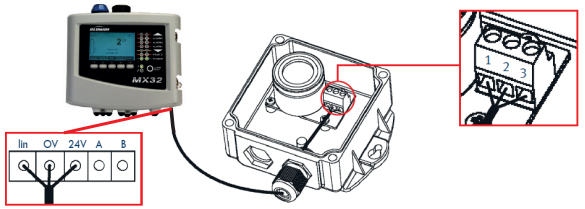

Wiring of 1 OLCT 10 detector
Wiring in parallel of 2 OLCT 10 detecting same gas (CO, NO or NO2)

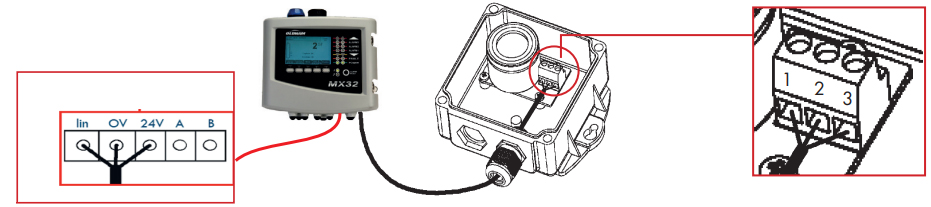

Wiring of 1 OLCT 10 SC (with a semi-conductor cell)
Dimensions:
Technical features:
| Electrochemical sensor | Semiconductor sensor | |
| Range | CO (0-300 ppm), NO (0-100 ppm), NO2 (0-30 ppm) | R134a, R404a, R22, R410a etc. |
| Signal output | Normal operation 4-20mA (Fault < 0.5 mA or > 23.2 mA) | Normal operation 4-20mA (Fault < 0.5 mA or > 23.2 mA) |
| Settings |
|
|
| Power Supply | 15 to 30 Vdc (nominal 24 Vdc) | 15 to 30 Vdc (nominal 24 Vdc) |
| Consumption | 30 mA max. | 100 mA max. |
| Cabling | 2-wire, shielded, core size 0.9mm2 2 cable gland M16 (outer 4 to 8 mm) |
3-wire, shielded, core size 0.9mm2 1 cable gland M16 (outer 4 to 8 mm) |
| Dimensions (LxHxP) | 118 x 126 x 63 mm | 118 x 126 x 63 mm |
| Material | ABS | ABS |
| IP rating | IP65 | IP65 |
| Expected Lifespan | 24 to 48 month, depending gas to detect | > 24 months |
| Operating temperature | -20 to +55°C | -20 to +55°C |
| Operating humidity | 15% HR to 90% HR | 20% HR to 90% HR |
| Pressure range | 1 bar ± 10 % | 1 bar ± 10 % |
| Response Time | NO2: T90 < 60s, NO : T90 < 120
CO : T50 < 15s, Fréon R134A : T50 < 30s |
|
| Certification |
|
|
