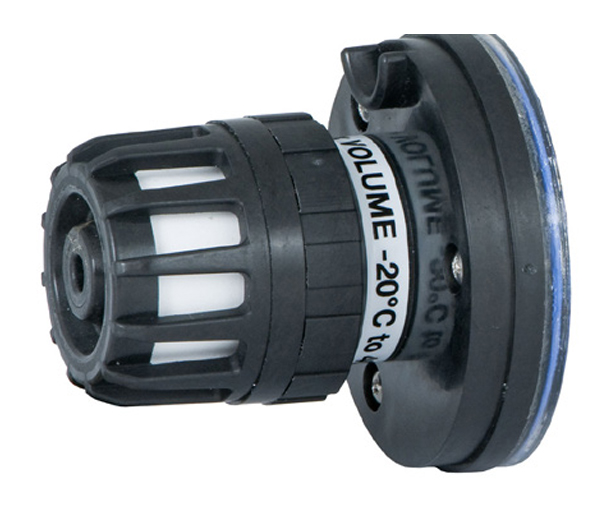

Det-Tronics GTS Toxic Gas Sensor Module (GT3000 Series)
Bulk Orders
GTS Toxic Gas Sensor Module (Spec Sheet: 90-1199) housings are incorporated into the
GTX toxic gas transmitter. The electrochemical cell is embedded in the module.
- Performance approved models
- NEW! Plus (+) series sensors with dual reservoir technology and extended temperature range
- Sensor modules are available in a variety of gas types and concentration ranges
- Hot-swappable capabilities with the GTX transmitter
- Easy install and removal with the GTX transmitter
- Intrinsically safe (IS) design
- SIL models available for Hydrogen Sulfide and Oxygen sensors
- DNV models available with Hydrogen Sulfide sensors
- Suitable for outdoor applications requiring IP66 rating
- Electrochemical sensor cell for increased accuracy, stability, and reliability
- Highly specific response reduces the chance of false alarms resulting from the presence of other gases
- Temperature compensated to ensure consistent performance over entire operating temperature range
- Hydrophobic filter easily replaced without opening the device or use of tools
- EMI/RFI hardened
- Event and calibration logs are stored in non-volatile memory and are accessible using a UD10/UD20, HART device, or AMS software.
- FDT/DTM capable
- Real-time clock with battery back-up
GTS Model Matrix
| MODEL | Â DESCRIPTION |
| GTS | Toxic Gas Sensor Module |
| TYPE | GAS / RANGE | |
| H2S+ | Hydrogen Sulfide (certified SIL 2 capable) |
|
| 20P | 0 – 20 PPM | |
| 50P | 0 – 50 PPM | |
| 100P | 0 – 100 PPM | |
| CL2 | Chlorine | |
| 10P | 0 – 10 PPM | |
| NH3 | Ammonia | |
| 100P | 0 – 100 PPM | |
| 500P | 0 – 500 PPM | |
| H2 | Hydrogen | |
| 1000P | 0 – 1000 PPM | |
| O2 | Oxygen (certified SIL 2 capable) | |
| 25V | 0 – 25 % by Vol | |
| CO | Carbon Monoxide | |
| 100P | Â 0 – 100 PPM | |
| 500P | 0 – 500 PPM | |
| SO2+ | Sulfur Dioxide | |
| 20P | 0 – 20 PPM | |
| 100P | 0 – 100 PPM | |
| NO2 | Nitrogen Dioxide | |
| 20P | 0 – 20 PPM | |
| TYPE | SAFETY INTEGRITY LEVEL |
| S | SIL 2 |
| N | NON-SIL |
| TYPE | LABEL |
| C | CHINESE |
| E | ENGLISH |
| K | KAZAKH |
| P | PORTUGUESE (Brazil) |
| R | RUSSIA |
| TYPE | HOUSING |
| S | STANDARD |
| E | ENHANCED SHIELDING |
GTS Toxic Gas Sensor Module – ENGLISH
| Model Number | Part Number | Toxic Gas | ppm Range | % by Volume |
| GTSH2S+20PSEE1 | 009471-3411 | H2S | 0-20 | |
| GTSH2S+50PSEE1 | 009471-3421 | H2S | 0-50 | |
| GTSH2S+100PSES2 | 009471-3432 | H2S | 0-100 | |
| GTSH2S+100PSEE1 | 009471-3441 | H2S | 0-100 | |
| GTSCL210PNES3 | 009471-3043 | Cl2 | 0-10 | |
| GTSNH3100PNES2 | 009471-3052 | NH3 | 0-100 | |
| GTSNH3500PNES3 | 009471-3063 | NH3 | 0-500 | |
| GTSH21000PNES3 | 009471-3083 | H2 | 0-1000 | |
| GTSO225VSES3 | 009471-3093 | O2 | 0-25% | |
| GTSCO100PNES2 | 009471-3102 | CO | 0-100 | |
| GTSCO500PNES2 | 009471-3112 | CO | 0-500 | |
| GTSSO2+20PNES3 | 009471-3133 | SO2 | 0-20 | |
| GTSSO2+100PNES3 | 009471-3143 | SO2 | 0-100 | |
| GTSNO220PNES3 | 009471-3163 | NO2 | 0-20 |
NOTE: Refer to the GT3000 Instruction Manual 95-8616 for details on performance approvals.
| NOTES: | GTS Approval when paired with approriate GTX approval type |
GTX approval types |
| 1 | DNV/FM/CSA/IECEx | N |
| 2 | FM/CSA/IECEx | N |
| 3 | CSA/IECEx | N |
Sensor Comparison
| Gas | Range | Response Time1 | Accuracy of Reading (Whichever is Greater) |
Operating Temperature Range |
Zero Drift | Performance Approved Standard |
| Hydrogen Sulfide (H2S) | 0-20 ppm | T20 = ≤7 Sec. T50 = ≤10 Sec. T90 = ≤16 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +50°C | ± 1 ppm/Mo. | ISA 92.00.014 |
| Hydrogen Sulfide (H2S) | 0-50 ppm | T20 = ≤4 Sec. T50 = ≤7 Sec. T90 = ≤16 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +50°C | ± 1 ppm/Mo. | ISA 92.00.014 |
| Hydrogen Sulfide (H2S) | 0-100 ppm | T20 = ≤5 Sec. T50 = ≤8 Sec. T90 = ≤21 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +50°C | ± 2 ppm/Mo. | ISA 92.00.014 |
| Hydrogen Sulfide (H2S+) |
0-20 ppm | T20 = ≤10 Sec. T50 = ≤13 Sec. T90 = ≤23 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +55°C | ± 1 ppm/Mo. | ISA 92.00.014 |
| Hydrogen Sulfide (H2S+) |
0-50 ppm | T20 = ≤6 Sec. T50 = ≤9 Sec. T90 = ≤15 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +55°C | ± 1 ppm/Mo. | ISA 92.00.014 |
| Hydrogen Sulfide (H2S+) |
0-100 ppm | T20 = ≤6 Sec. T50 = ≤8 Sec. T90 = ≤15 Sec. |
±2 ppm or ±10% of Reading |
–40°C to +55°C | ± 2 ppm/Mo. | ISA 92.00.014 |
| Ammonia (NH3) | 0-100 ppm2 | T50 = 24 Sec. T90 = 65 Sec. |
±4 ppm or ±10% of Reading |
–20°C to +40°C | ± 2 ppm/Mo. | FM63404 |
| Ammonia (NH3) | 0-500 ppm2 | T50 = 30 Sec. T90 = 120 Sec. |
±4 ppm or ±10% of Reading |
–20°C to +40°C | ± 10 ppm/Mo. | Det-Tronics Verified |
| Oxygen (O2) | 0-25% V/V3 | T20 = 7 Sec. T90 = 30 Sec. |
< 0.5% V/V | –20°C to +50°C | < 2 %/Mo. | Det-Tronics Verified |
| Carbon Monoxide (CO) |
0-100 ppm | T50 = 15 Sec. T90 = 40 Sec. |
±5 ppm or ±10% of Reading |
–20°C to +50°C | ± 2 ppm/Mo. | ISA 92.00.014 |
| Carbon Monoxide (CO) |
0-500 ppm | T50 = 12 Sec. T90 = 25 Sec. |
±5 ppm or ±10% of Reading |
–40°C to +50°C | ± 9 ppm/Mo. | ISA 92.00.014 |
| Sulfur Dioxide (SO2+) |
0-20 ppm | T50 = 12 Sec. T90 = 30 Sec. |
±0.6 ppm or ±10% of Reading |
–40°C to +55°C | ± 0.4 ppm/Mo. | Det-Tronics Verified |
| Sulfur Dioxide (SO2+) |
0-100 ppm | T50 = 15 Sec. T90 = 35 Sec. |
±0.6 ppm or ±10% of Reading |
–20°C to +55°C | ± 0.4 ppm/Mo. | Det-Tronics Verified |
| Chlorine (Cl2) |
0-10 ppm | T50 = ≤14 Sec. T90 = ≤34 Sec. |
±0.6 ppm or ±10% of Reading |
–20°C to +50°C | < 0.2 ppm/Mo. | Det-Tronics Verified |
| Hydrogen (H2) |
0-1000 ppm | T50 = 8 Sec. T90 = 60 Sec. |
±50 ppm or ±10% of Reading |
–20°C to +40°C | ± 20 ppm/Mo. | Det-Tronics Verified |
| Nitrogen Dioxide (NO2) |
0-20 ppm | T50 = 7 Sec. T90 = 31 Sec. |
±2 ppm or ±10% of Reading |
–20°C to +40°C | ± 0.1 ppm/Mo. | Det-Tronics VerifiedZ |
1 Time to reach percentage of final reading when gas concentration equal to full scale is applied to sensor.
2 Background concentrations of ammonia may shorten lifetime of sensor.
3 Sensor approved for oxygen depletion (< 21% V/V) only.
4 Factory Mutual Performance Approved.
 |

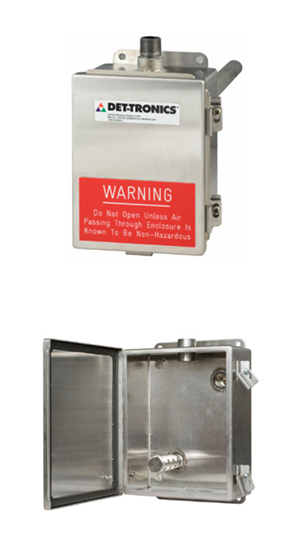

Model Q912 Duct Mount Enclosure The Model Q912 Duct Mount Enclosure provides reliable detection of toxic gases within air-handling ductwork. The device mounts directly to the ductwork, and uses a cross-sectional inlet and outlet sampling tube arrangement that allows large volume air sampling. The Q912 is compatible with the entire Det-Tronics GT3000 family of gas detectors, and is suitable for hazardous industrial and commercial applications.
|
Model Q912 Toxic Duct Mount Enclosure
| Part Number | Description* | Detector Conduit | Inlet Tube Length |
| 012513-001 | Q912 Duct Mount M25, 1ft inlet | M25 | 1 ft (0.3m) |
| 012513-003 | Q912 Duct Mount M25, 3ft inlet | M25 | 3 ft (0.9m) |
| 012513-006 | Q912 Duct Mount M25, 6ft inlet | M25 | 6 ft (1.8m) |
| 012513-010 | Q912 Duct Mount M25, 10ft inlet | M25 | 10 ft (3.1m) |
| 012513-013 | Q912 Duct Mount M25, 13ft inlet | M25 | 13 ft (4m) |
| 012514-001 | Q912 Duct Mount 3/4″, 1ft inlet | 3/4″ | 1 ft (0.3m) |
| 012514-003 | Q912 Duct Mount 3/4″, 3ft inlet | 3/4″ | 3 ft (0.9m) |
| 012514-006 | Q912 Duct Mount 3/4″, 6ft inlet | 3/4″ | 6 ft (1.8m) |
| 012514-010 | Q912 Duct Mount 3/4″, 10ft inlet | 3/4″ | 10 ft (3.1m) |
| 012514-013 | Q912 Duct Mount 3/4″, 13ft inlet | 3/4″ | 13 ft (4m) |
| 012363-001 | Spare Diffuser Insert |
*1 ft outlet tube included with each duct mount.
Model Q912 Spare Parts
| Part Number | Description* | Length | Material | Ship Weight |
| 000214-281 | Inlet Tube | 1 ft (0.3 m) | 316 SS | 8 oz (0.23 kg) |
| 000214-282 | Inlet Tube | 3 ft (0.9 m) | 316 SS | 1 lb (0.45 kg) |
| 000214-283 | Inlet Tube | 6 ft (1.8 m) | 316 SS | 3 lb (1.35 kg) |
| 000214-284 | Inlet Tube | 10 ft (3.1 m) | 316 SS | 6 lb (2.4 kg) |
| 000214-285 | Inlet Tube | 13 ft (4 m) | 316 SS | 9 lb (4.0 kg) |
| 000214-280 | Outlet Tube | 1 ft (0.3 m) | 316 SS | 8 oz (0.23 kg) |
| 102359-001 | Stopper Plug | N/A | Rubber | <1 lb (<0.45 kg) |
