Det-Tronics Eagle Quantum Premier Controller EQ30XX

SKU: EQ30XX
Manufacturer:
Det-Tronics

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

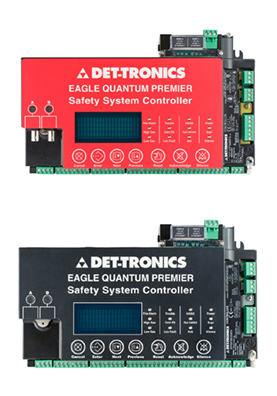

Eagle Quantum Premier Controller EQ30XX (Spec Sheet: 90-1148) The Eagle Quantum Premier Controller is a microprocessor-based module that performs all the communication and control functions for the system. The controller can be configured in a simplex or redundant mode of operation. It includes all the required operator interface controls for a fire alarm and releasing system.

  • Fire detection and alarm
  • Fire suppression control
  • Gas detection and alarm
  • Available in certified enclosures
  • Compliance to ANSI/ISA-12.13.01-2000 performance standard
  • Performance certified to FM 6310/6320
  • Performance certified to ATEX/IEC 60079-29-1
  • Simplex or redundant operation
  • Models with SIL 2 certification
  • Programmable logic
  • Optional Dual Ethernet Ports (Modbus TCP/IP)
  • Multiple serial ports (three RS-232 and two RS-485)
  • Transformer isolation of network ports
  • Utilizes Modbus RTU, Modbus TCP/IP, or Allen Bradley protocols
  • ControlNet Interface (Optional DRL Device level ring EtherNet DLR)
  • Eight Programmable Relay Outputs
  • Dedicated Fault Output
  • Eight Digital Inputs
  • Four-line, 20-character alphanumeric display
  • LED status indicators
  • Fault-tolerant communication loop
  • Extensive built-in diagnostics
  • Real-time clock
  • Compact design
  • US Coast Guard type approval.
  • Lloyd’s Register Type Approval.

EQ30XX Model Matrix

MODEL DESCRIPTION
EQ3001 Eagle Quantum Premier Controller – 246 Nodes
EQ3016 Eagle Quantum Premier Controller – 16 Nodes



TYPE MOUNTING OPTION
D Din Rail
P Panel



TYPE COM BOARD 1
N None
C ControlNet
D EtherNet DLR



TYPE COM BOARD 2
N None
D Ethernet IP with DLR
E Ethernet IP
S Serial Port Expansion



TYPE APPROVALS*
R VNIIPO/VNIIFTRI (RUSSIA)
S SIL
T SIL/FM/CSA/ATEX/IECEx
W FM/CSA/ATEX/IECEx

*Type Approvals can use one or more letters to designate the approvals of the product.

EQ3001 Controller – SIL 2

Model Part Number Mounting ControlNet Ethernet Ethernet/
IP DLR
Serial Port Expansion/
Redundancy Port
SIL/FM/CSA/
ATEX/IECEx
EQ3001PNNT 007609-072 Panel X
EQ3001DNNT 007609-073 DIN X
EQ3001PCNT 007609-075 Panel X X
EQ3001DCNT 007609-076 DIN X X
EQ3001PNET 007609-086 Panel X X X
EQ3001DNET 007609-087 DIN X X X
EQ3001PCET 007609-088 Panel X X X X
EQ3001DCET 007609-089 DIN X X X X
EQ3001PNST 007609-077 Panel X X
EQ3001DNST 007609-078 DIN X X
EQ3001PCST 007609-079 Panel X X X
EQ3001DCST 007609-080 DIN X X X
EQ3001DDET 007609-189 DIN X X X X
Ship Weight: 5.0 lb (2.3 kg)



EQ3016 Controller – SIL 2

Model Part Number Mounting ControlNet Ethernet Ethernet/
IP DLR
Serial Port Expansion/
Redundancy Port
SIL/FM/CSA/
ATEX/IECEx
EQ3016PNNT 007609-472 Panel
EQ3016DNNT 007609-473 DIN
EQ3016PCNT 007609-475 Panel X
EQ3016DCNT 007609-476 DIN X X
EQ3016PNET 007609-486 Panel X X X
EQ3016DNET 007609-487 DIN X X X
EQ3016PCET 007609-488 Panel X X X X
EQ3016DCET 007609-489 DIN X X X X
EQ3016PNST 007609-477 Panel X X
EQ3016DNST 007609-478 DIN X X
EQ3016PCST 007609-479 Panel X X X
EQ3016DCST 007609-480 DIN X X X
EQ3016DDET 007609-689 DIN X X X X
Ship Weight: 5.0 lb (2.3 kg)



EQ3001 Controller

Model Part Number Mounting ControlNet Ethernet Ethernet/
IP DLR
Serial Port Expansion/
Redundancy Port
FM/CSA/
ATEX/IECEx
EQ3001PNNW 007609-062 Panel X
EQ3001DNNW 007609-063 DIN X
EQ3001PCNW 007609-065 Panel X X
EQ3001DCNW 007609-066 DIN X X
EQ3001PNEW 007609-082 Panel X X X
EQ3001DNEW 007609-083 DIN X X X
EQ3001PCEW 007609-084 Panel X X X X
EQ3001DCEW 007609-085 DIN X X X X
EQ3001PNSW 007609-067 Panel X X
EQ3001DNSW 007609-068 DIN X X
EQ3001PCSW 007609-069 Panel X X X
EQ3001DCSW 007609-070 DIN X X X
EQ3001PCSW-C* 007609-269 Panel X X X
EQ3001DDEW 007609-185 DIN X X X X
Ship Weight: 5.0 lb (2.3 kg)

*US Coast Guard type approval under 46 CFR 161.002. For use with USCG approved system only.

EQ3016 Controller

Model Part Number Mounting ControlNet Ethernet Ethernet/
IP DLR
Serial Port Expansion/
Redundancy Port
FM/CSA/
ATEX/IECEx
EQ3016PNNW 007609-462 Panel X
EQ3016DNNW 007609-463 DIN X
EQ3016PCNW 007609-465 Panel X X
EQ3016DCNW 007609-466 DIN X X
EQ3016PNEW 007609-482 Panel X X X
EQ3016DNEW 007609-483 DIN X X X
EQ3016PCEW 007609-484 Panel X X X X
EQ3016DCEW 007609-485 DIN X X X X
EQ3016PNSW 007609-467 Panel X X
EQ3016DNSW 007609-468 DIN X X
EQ3016PCSW 007609-469 Panel X X X
EQ3016DCSW 007609-470 DIN X X X
EQ3016PNNW-C* 007609-282 Panel X
EQ3016DDEW 007609-685 DIN X X X X
Ship Weight: 5.0 lb (2.3 kg)

*US Coast Guard type approval under 46 CFR 161.002. For use with USCG approved system only.

Redundancy Parts

Part Number* Description Ship Weight
008981-001 Controller to Controller High Speed Serial Cable (4 ft) 1.0 lb (0.45 kg)
008982-001 EQ3LTM LON Termination Module (2 required per LON) 1.0 lb (0.45 kg)

*Parts can only be used with EQP Controllers with serial port expansion option.

Controller Communication Cables

Part Number Description Length Ship Weight
15 ft.
(4.57 m)
30 ft.
(9.14m)
50 ft.
(15.24m)
007633-001 Controller RS-232 Cable (DB9 Female PC Connection) X 1.0 lb (0.45 kg)
007633-002 Controller RS-232 Cable (DB9 Female PC Connection) X 1.0 lb (0.45 kg)
007633-003 Controller RS-232 Cable (DB9 Female PC Connection) X 1.6 lb (0.7 kg)



Typical Order for a Redundant System

Qty Part Number Description
2 007609-078 EQ3001DNST Controller
1 008981-001 Controller to Controller redundancy High Speed Serial Cable (4 ft)
2 008982-001 EQ3LTM LON Termination Module (2 required per LON)



Interface Hardware RS 485 and Hart

Part Number Description Ship Weight
014008-001 EQ2230RSP Surge Protector RS485 1.0 lb (.45 kg)
008056-001 HIM, HART Interface Module, EQP 1.0 lb (.45 kg)
