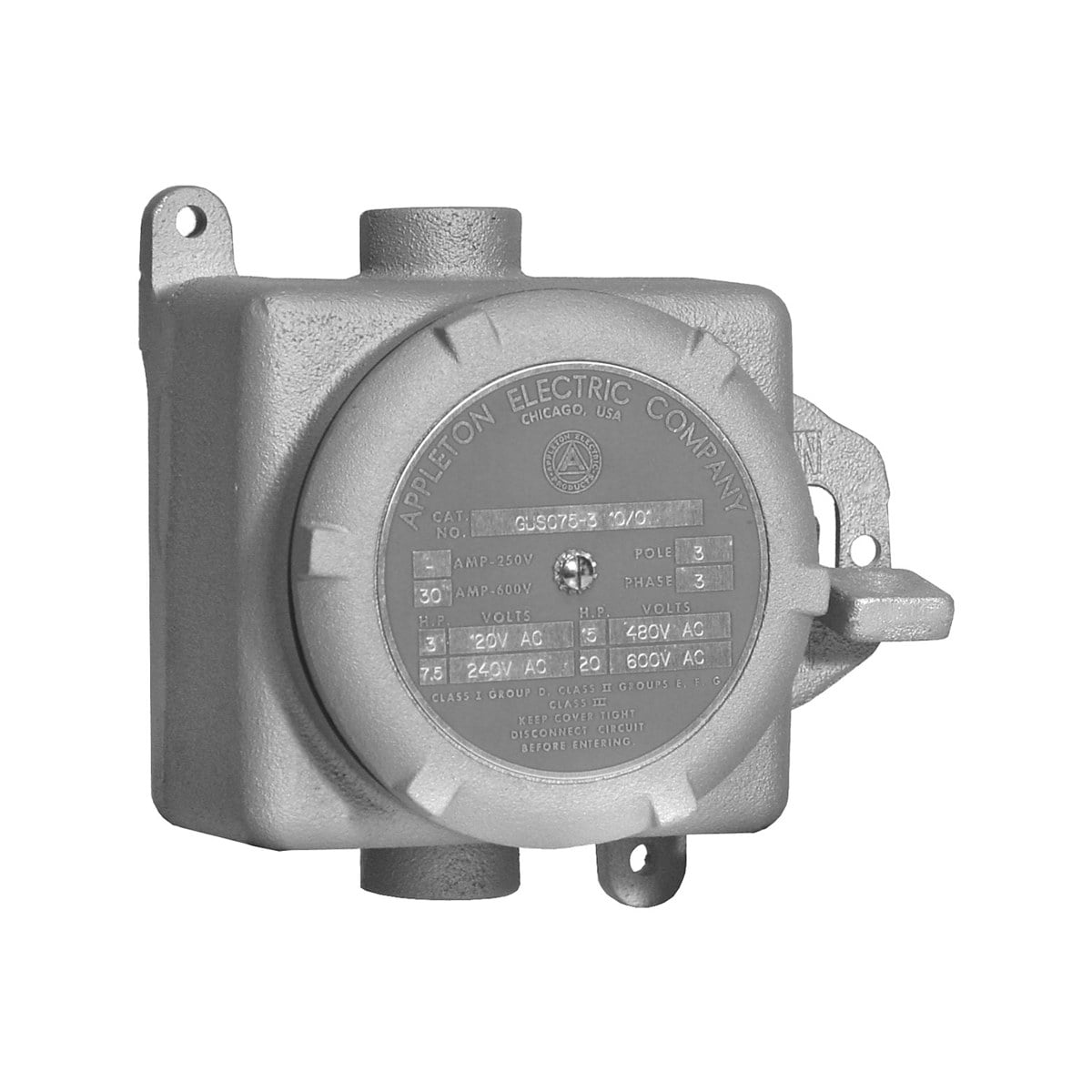

Appleton GUSC Heavy Duty Tumbler Switches

What are Appleton GUSC Heavy Duty Tumbler Switches?

Appleton GUSC Heavy Duty Tumbler Switches are designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of motors and other apparatus with a switch rating up to 20 HP at 600 Vac. These explosionproof, dust-ignitionproof, heavy-duty usage tumbler switches are manufactured with accurately tapped, tapered hub threads for tight, rigid joints and ground continuity. The compact design makes them ideal for use in cramped quarters and on machinery, and the threaded cover provides easy access for wiring and maintenance. Enclosures have external mounting lugs for ease of mounting and a smooth, rounded integral bushing in each hub protects conductor insulation.

What are the key features of the Appleton GUSC Heavy Duty Tumbler Switches?

• GUSC is UL Listed for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit.

What are the specifications of the Appleton GUSC Heavy Duty Tumbler Switches?

Environment: Hazardous (Classified) Locations
Product type and listings: Control Station, Control Switch
Enclosure material: Iron
Cover material: Copperfree Aluminum
Operator type: Tumbler Switch

Which Appleton catalog numbers belong to the GUSC Heavy Duty Tumbler Switches?

Appleton lists 2 catalog numbers in this series:

GUSC752, GUSC753

How do I request a quote for the Appleton GUSC Heavy Duty Tumbler Switches?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
