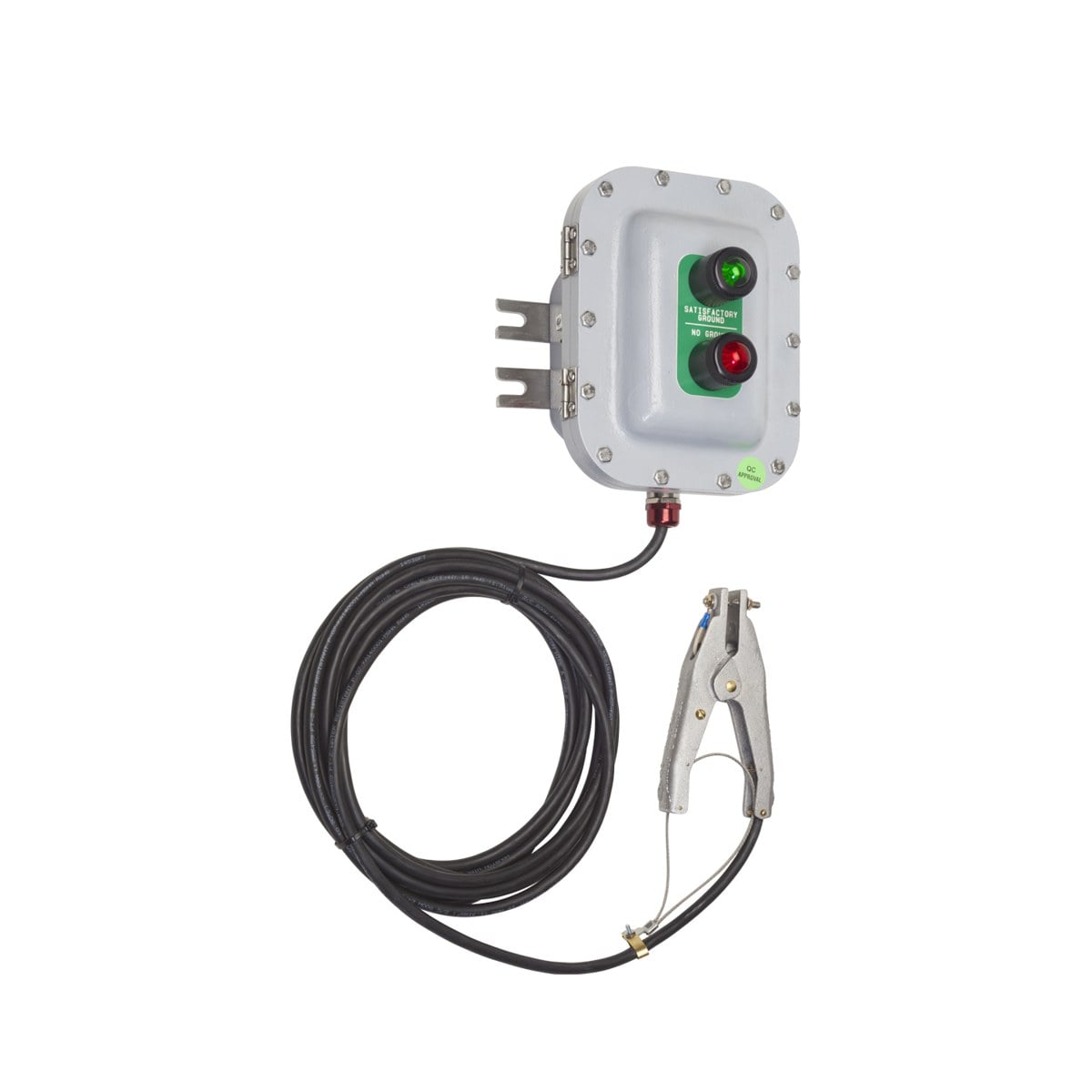

Appleton AEPGI Series Ground Indicator

What is the Appleton AEPGI Series Ground Indicator?

Appleton AEPGI Series Ground Indicator is used to indicate the presence of grounding of tank cars or tank trucks before and during transfer of combustible materials. When connected to a truck prior to loading or unloading, the presence of a safe ground is indicated by a green light and the absence of ground is indicated by a red light. The interlocking circuitry will prevent pumps from starting until a ground is established or will shut pumps down if a ground is lost at any time during loading or unloading. The explosionproof, dust-ignitionproof enclosure enables the ground device to be used in hazardous location areas.

What are the key features of the Appleton AEPGI Series Ground Indicator?

• AEPGI is cULus Classified for use in Hazardous (Classified) Locations.
• Supplied with external and internal ground lug.

What are the specifications of the Appleton AEPGI Series Ground Indicator?

Environment: Hazardous (Classified) Locations
Product type and listings: Emergency Disconnect, Ground Connector
Enclosure material: Copperfree Aluminum
Cover material: Copperfree Aluminum
Operator type: Ground Indicator

Which Appleton catalog numbers belong to the AEPGI Series Ground Indicator?

Appleton lists 8 catalog numbers in this series:

AEPGI120C25, AEPGI120C50, AEPGI120S25, AEPGI120S50, AEPGIC25KIT, AEPGIC50KIT, AEPGIS25KIT, AEPGIS50KIT

How do I request a quote for the Appleton AEPGI Series Ground Indicator?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
