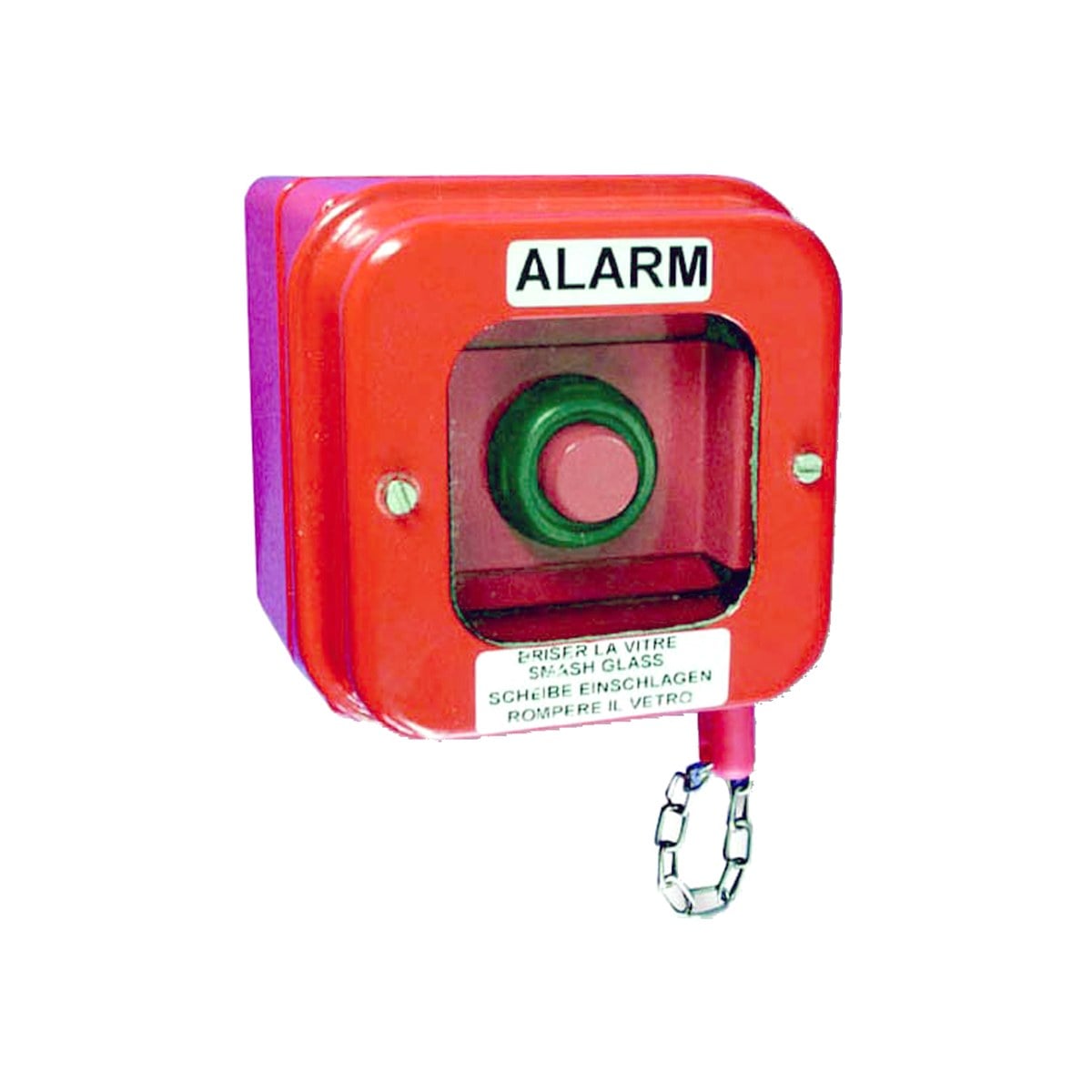

Appleton ATX FAS Series “Break Glass” Call Points FASDA

What is the Appleton ATX FAS Series “Break Glass” Call Points FASDA?

Appleton ATX FAS Series “Break Glass” Call Points should be installed along exit routes, typically on the floor landings of staircases and at all exits to the open air. They are available in an Increased Safety or flameproof enclose make them ideal for use in classified areas where ignitable vapors, gases or highly combustible dusts are present. Both models feature a hammer and stainless steel chain, NO+NC contacts with terminals, and an internal and external earth terminal. Type PCe (increased safety version) has two M20 bottom entries, one polyamide cable gland, and one polyamide blanking plug. Type BR1d (flameproof version) has one M20 entry at the top, one M20 entry at the bottom, and one aluminum blanking plug.

What are the key features of the Appleton ATX FAS Series “Break Glass” Call Points FASDA?

• FAS is ATEX Certified for use in Hazardous (Classified) Locations.
• For use with non-armored or armored cable.

What are the specifications of the Appleton ATX FAS Series “Break Glass” Call Points FASDA?

Environment: Hazardous (Classified) Locations
Product type and listings: Alarm, Signaling Device
Enclosure material: Aluminum
Cover material: Steel
Operator type: Alarm/Call Point

How do I request a quote for the Appleton ATX FAS Series “Break Glass” Call Points FASDA?

Request a quote by the catalog number FASDA. Tell us the quantity you need. We confirm price, availability and lead time with the quote.
