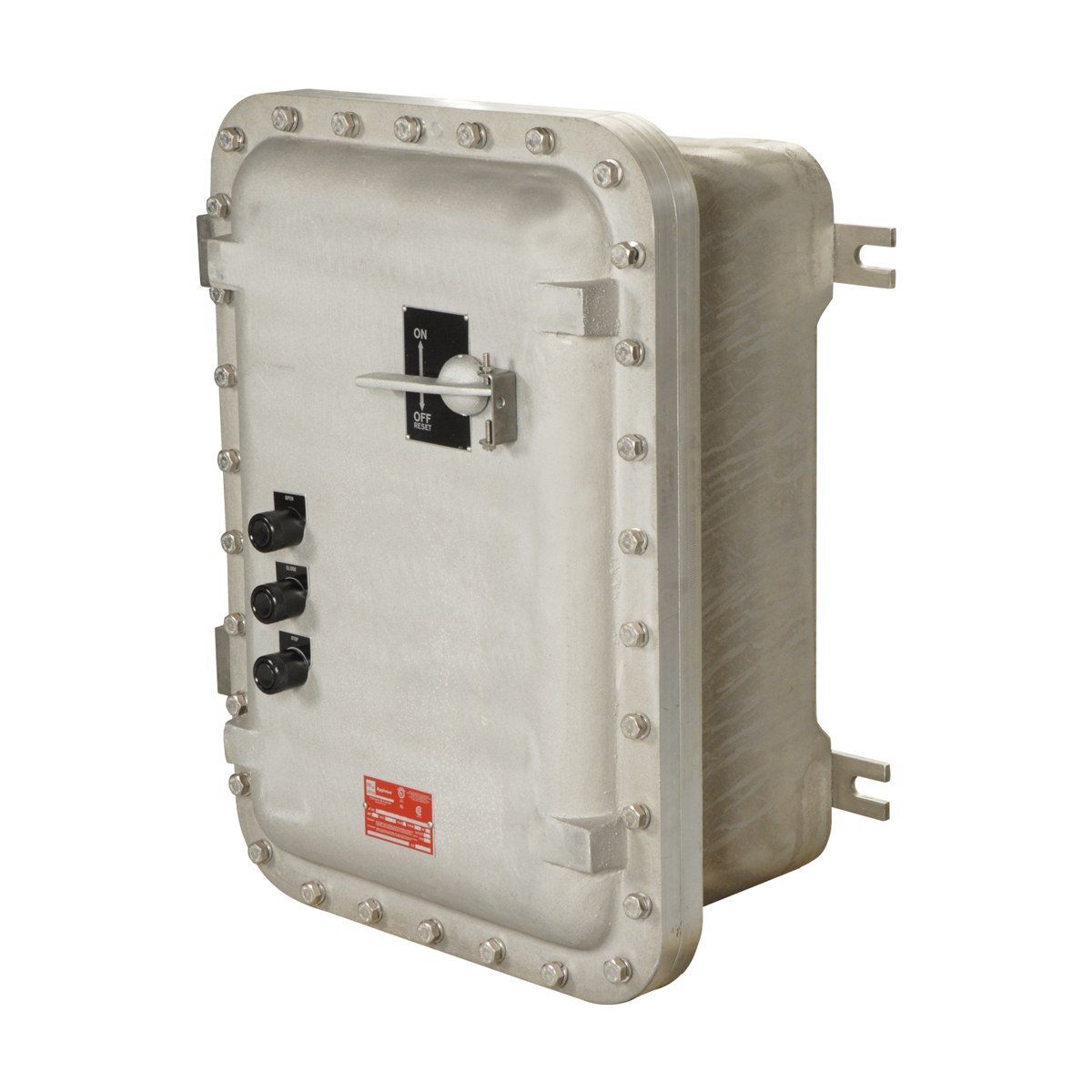

Appleton ACSEW Cast Control Centers and Operators

What are Appleton ACSEW Cast Control Centers and Operators?

Appleton ACSEW Cast Control Centers and Operators ensure application flexibility. They allow you to combine a variety of buttons, switches, and pilot device combinations into one control center and include a window option. They are ideal for use in indoor, outdoor, wet, or corrosive environments where hazardous materials are handled or stored. These explosionproof, dust-ignitionproof enclosures are designed with a precision machined flame path between the box and the cover. An O-ring gasket is provided to seal out moisture, dust, oil, dirt etc. All enclosures feature an external flange which maximizes internal space and a wall thickness which is suitable for a minimum of five full threads. They are designed with bolt on stainless steel slotted mounting feet for either horizontal or vertical mounting. The cover features a flexible hinge mounting for either the left or right side as standard on all boxes 12 x 12 x 06 and larger. The ACSEW offers a wide range of drilled and tapped outlets to accommodate different application requirements.

What are the key features of the Appleton ACSEW Cast Control Centers and Operators?

• ACSEW is UL Classified and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with ground lug package.

What are the specifications of the Appleton ACSEW Cast Control Centers and Operators?

Environment: Hazardous (Classified) Locations
Product type and listings: Accessories, Control Station, Control Box
Enclosure material: Copperfree Aluminum
Cover material: Copperfree Aluminum
Operator type: Selector Switch, Push Button, Pilot Light

Which Appleton catalog numbers belong to the ACSEW Cast Control Centers and Operators?

Appleton lists 198 catalog numbers in this series:

44116, A44102, A44104, A44109, A44110, A44132, A44133, A44140, AA9400, ACSEW040604, ACSEW050903, ACSEW060604, ACSEW060804, ACSEW060804G2, ACSEW060804QRP, ACSEW060806, ACSEW060806G2, ACSEW061004, ACSEW061004G2, ACSEW061204, ACSEW061604, ACSEW071106, ACSEW071106HG2, ACSEW071106HZG2, ACSEW080806, ACSEW080806G2, ACSEW080806HZ, ACSEW080806QRP, ACSEW080806Z, ACSEW081006, ACSEW081006H, ACSEW081006HG2, ACSEW081006HZ, ACSEW081006QRP, ACSEW081307, ACSEW081307HZG2, ACSEW091105, ACSEW091105G2, ACSEW091105H, ACSEW091504, ACSEW101004, ACSEW101006, ACSEW101006G2Z, ACSEW101006QRP, ACSEW101006Z, ACSEW101406, ACSEW101406G2, ACSEW101406H, ACSEW101406HG2Z, ACSEW101406HZ, ACSEW101406QRP, ACSEW101408, ACSEW101408G2, ACSEW101408HZ, ACSEW112005, ACSEW112406, ACSEW112406201, ACSEW112406G2, ACSEW113006, ACSEW121206, ACSEW121206G2, ACSEW121206HZ, ACSEW121206HZG2, ACSEW121206QRP, ACSEW121206Z, ACSEW121208, ACSEW121208G2, ACSEW121208QRP, ACSEW121208Z, ACSEW121806, ACSEW121806Z, ACSEW121808, ACSEW121808G2, ACSEW121808HZ, ACSEW121808QRP, ACSEW122408, ACSEW122408G2, ACSEW122408Z, ACSEW123608, ACSEW123608Z, ACSEW133806, ACSEW141406, ACSEW141406HZ, ACSEW141406HZG2, ACSEW141406Z, ACSEW141408, ACSEW141408G2, ACSEW141408HZ, ACSEW141408QRP, ACSEW141408Z, ACSEW141608, ACSEW142408, ACSEW142408G2, ACSEW153707, ACSEW161606, ACSEW161606QRP, ACSEW161606Z, ACSEW161608, ACSEW161608G2, ACSEW161608HZ, ACSEW161608HZG2, ACSEW161608QRP, ACSEW161608Z, ACSEW161812, ACSEW161812HG2, ACSEW162005, ACSEW162206, ACSEW162408, ACSEW162408G2, ACSEW162408HZG2, ACSEW162806, ACSEW164208, ACSEW181806, ACSEW181806QRP, ACSEW181808, ACSEW181808G2, ACSEW181808G2Z, ACSEW181808HZ, ACSEW181808QRP, ACSEW181808Z, ACSEW181808ZMH8, ACSEW182408, ACSEW182408AHZ, ACSEW182408G2, ACSEW182408HZG2, ACSEW182408QRP, ACSEW182408Z, ACSEW182410, ACSEW182410ABZ, ACSEW182410G2, ACSEW182410QRP, ACSEW182410Z, ACSEW183008, ACSEW183008G2, ACSEW183608, ACSEW183608Z, ACSEW183610, ACSEW183610G2, ACSEW183610Z, ACSEW184207, ACSEW206008, ACSEW242408, ACSEW242408G2, ACSEW242408H, ACSEW242408HZMH, ACSEW242408QRP, ACSEW242408Z, ACSEW242408ZMH8, ACSEW242410, ACSEW242410G2, ACSEW242410QRP, ACSEW242410Z, ACSEW243008, ACSEW243008G2, ACSEW243008HZ, ACSEW243008QRP, ACSEW243608, ACSEW243608G2, ACSEW243608HG2, ACSEW243608HZG2, ACSEW243608QRP, ACSEW243610, ACSEW243610G2, ACSEW243610HG2, ACSEW243610QRP, ACSEW243610Z, ACSEW303808, ACSEW303808HZ, ACSEW303816, ACSEW303816HZG2, ACSEW303817, AECB13612G, AEPBA, AEPL1GLED, AEPL1RLED, AEPL7ALED, AEPL7BLED, AEPL7RLED, AEPL8ALLED, AEPL8CLLED, AEPLG4GL, AEPLG4RL, AEPLG7BLED, AEPTAEL24V, AEPTGB24V, AEPTGEL24V, AESS31MN, AZ141468, AZ2436810, EPL3GL, EPMCRE, EPRSL, ESS31MR, HND312T33W, KC100T, W10, Z121868, Z141468

How do I request a quote for the Appleton ACSEW Cast Control Centers and Operators?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
