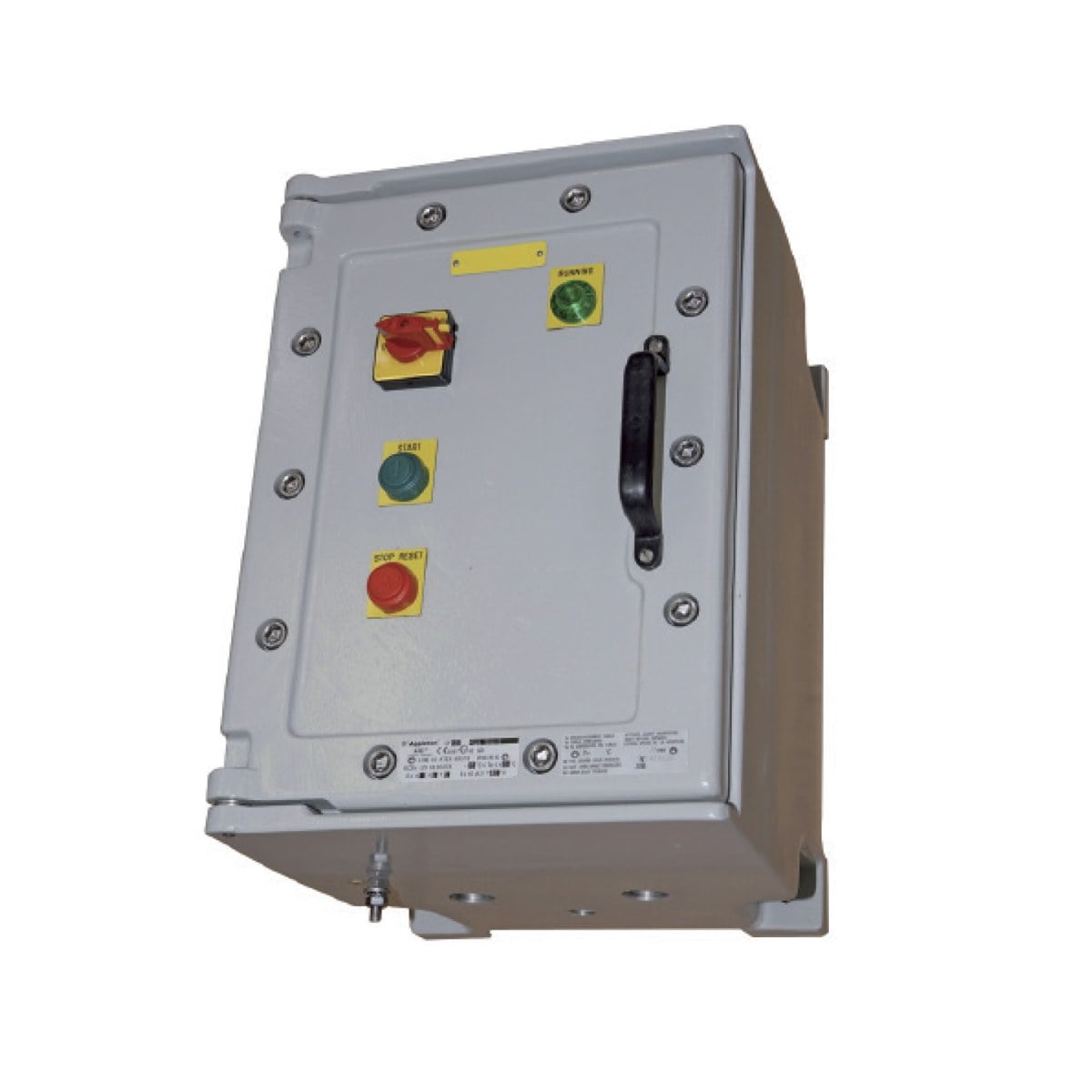

Appleton ATX MS Series Motor Starters

What are Appleton ATX MS Series Motor Starters?

Appleton ATX MS Series Motor Starters provide disconnecting means and overload protection in areas where hazardous materials are handled or stored. The MS Series feature magnetic circuit breakers to eliminating the need for fuse replacement. These flameproof motor starters are ideal for use in wet, corrosive environments or where either continuously or intermittently, ignitable vapors, gases or flammable dusts are present. The MS is available with a three-pole contactor, thermal overload relay with manual reset push button, and a green pilot light. They can be used with armored or unarmored cable in conjunction with appropriate ATEX/IECEx certified cable glands.

What are the key features of the Appleton ATX MS Series Motor Starters?

• MS is ATEX and IECEx Certified for use in Hazardous (Classified) Locations.
• For use with non-armored or armored cable.

What are the specifications of the Appleton ATX MS Series Motor Starters?

Environment: Hazardous (Classified) Locations
Product type and listings: Manual, Motor Starter
Enclosure material: Aluminum, Stainless Steel
Cover material: Aluminum, Stainless Steel
Operator type: Selector Switch, Push Button, Pilot Light

Which Appleton catalog numbers belong to the ATX MS Series Motor Starters?

Appleton lists 8 catalog numbers in this series:

MSB007D42, MSB150D42, MSB150D42200, MSB185D42, MSB220D42, MSB220D42200, MSB300D42, MSB750D42200

How do I request a quote for the Appleton ATX MS Series Motor Starters?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
