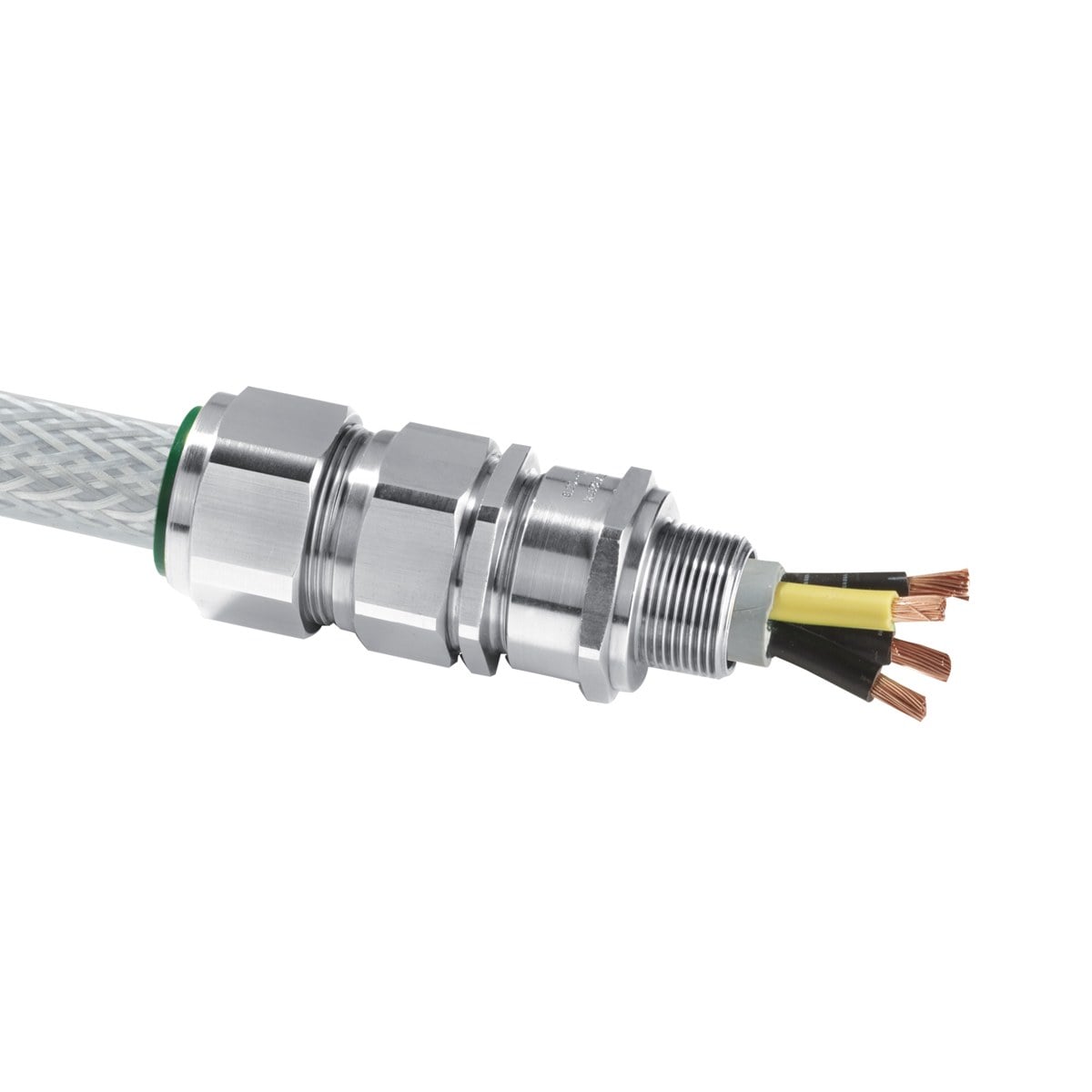

Appleton E1FX Series Nickel Plated Brass Cable Gland

What is the Appleton E1FX Series Nickel Plated Brass Cable Gland?

Appleton E1FX Series Nickel Plated Brass Cable Glands are for use with armored cable (braid, tape, tape with lead sheath) to terminate an Ex d (flameproof IIB or IIC), Ex e (increased safety), Ex nR (restricted breathing), D (dust environment), hazardous area (gas and dust), onshore, or open-sea pipeline certified enclosure. They provide mechanical cable retention and earth continuity via cable armor termination. The E1FX features an elastomer seal, a detachable armor cone and AnyWay clamping ring arrangement. Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure.

What are the key features of the Appleton E1FX Series Nickel Plated Brass Cable Gland?

• E1FX is cCSAus, ATEX, IECEx, UKEX, INMETRO, and EAC Certified for use in Hazardous (Classified) Locations. Other certifications are available.
• For use with armored cables (braid, tape, tape with lead sheath).

What are the specifications of the Appleton E1FX Series Nickel Plated Brass Cable Gland?

Environment: Hazardous (Classified) Locations
Product type and listings: Cable Gland
Materials: Copperfree Aluminum, Nickel Plated Brass, Lead Sheath
Used with: Armored Cable, Tape Cable, Braided Armor Cable

Which Appleton catalog numbers belong to the E1FX Series Nickel Plated Brass Cable Gland?

Appleton lists 44 catalog numbers in this series:

2016E1FX0507, 2016E1FX0755, 2016E1FX5, 20E1FX0505, 20E1FX0507, 20E1FX0755, 20E1FX1RA731, 20E1FX5, 20E1FX7, 20S16E1FW0505, 20S16E1FW5, 20S16E1FX0505, 20S16E1FX1RA731, 20SE1FX0505, 20SE1FX0507, 20SE1FX1RA731, 20SE1FX5, 20SE1FX7, 25E1FX0755, 25E1FX0757, 25E1FX5, 25E1FX7, 25SE1FX0755, 25SE1FX075NPT7, 25SE1FX5, 32E1FX1005, 32E1FX5, 32E1FX7, 40E1FX1255, 40E1FX5, 50E1FX5, 50SE1FX1505, 50SE1FX5, 63E1FW2505, 63E1FX2505, 63E1FX5, 63SE1FX2005, 63SE1FX5, 75E1FX5, 75SE1FW2505, 75SE1FX2505, 75SE1FX5, 90E1FW3505, 90E1FX5

How do I request a quote for the Appleton E1FX Series Nickel Plated Brass Cable Gland?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
