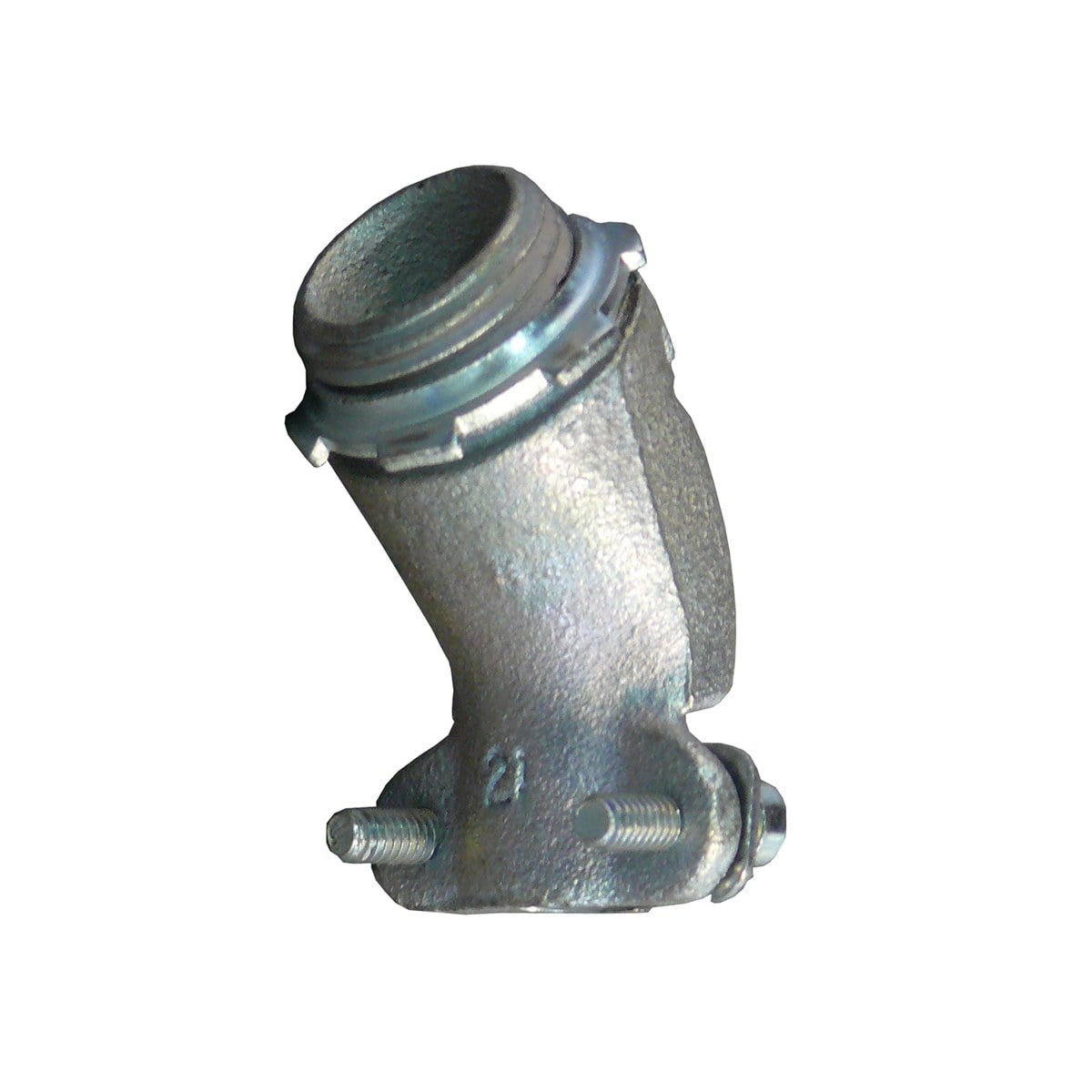

Appleton Armored Cable and Flexible Metal Conduit Connectors

What are Appleton Armored Cable and Flexible Metal Conduit Connectors?

Appleton Armored Cable and Flexible Metal Conduit Connectors are used to ground and secure conduit and cable to boxes and enclosures. Single and duplex connectors are available with male NPS threaded hubs. They are furnished with or without an insulated throat and are provided with locknuts.

What are the key features of the Appleton Armored Cable and Flexible Metal Conduit Connectors?

• TW38-50DC is NEC and CEC Rated for use in Ordinary (Unclassified) Locations. All other Connectors are UL Listed and CSA Certified for use in Ordinary (Unclassified) Locations.
• For use with flexible metal conduit, armored cable, and nonmetallic sheathed cable.

What are the specifications of the Appleton Armored Cable and Flexible Metal Conduit Connectors?

Environment: Ordinary (Unclassified) Locations
Product type and listings: Conduit Connector
Materials: Iron, Steel, Zinc
Used with: Flexible Metal Conduit, Armored Cable, Nonmetallic Sheathed Cable

Which Appleton catalog numbers belong to the Armored Cable and Flexible Metal Conduit Connectors?

Appleton lists 34 catalog numbers in this series:

7230V, 7240V, 7245V, 7246V, 7247V, 7265V, 7287V, 7288V, 7380V, 7381V, 7381VI, 7382V, 7382VI, 7383I, 7384I, 7385I, 7386I, 7387I, 7388I, 7480V, 7480VI, 7481V, 7481VI, 7482V, 7482VI, 7483I, 7484I, 7485, 7485I, 7486I, 7487I, 7488I, 7489I, 7490I

How do I request a quote for the Appleton Armored Cable and Flexible Metal Conduit Connectors?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
