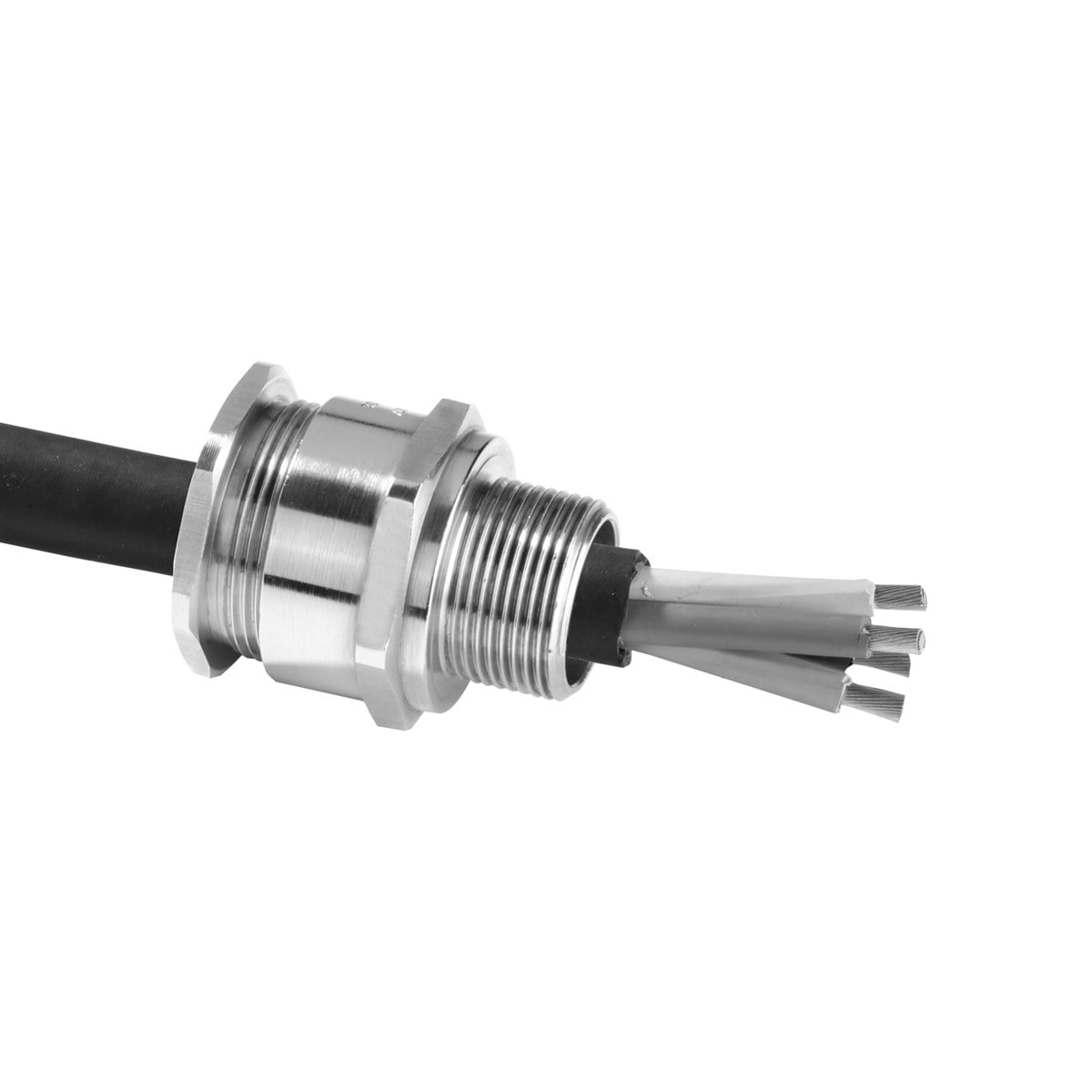

Appleton A2 Series Industrial Cable Gland

What is the Appleton A2 Series Industrial Cable Gland?

Appleton A2 Series Industrial Cable Glands are for use with all types of unarmored cable and exterior braid armor cable with a protective sheath in both indoor and outdoor applications. They provide mechanical cable retention and an environmental seal on the outer sheath of the cable. The A2 has a continuous operating temperature range of -60 to +130 °C (-76 to -266 °F).

What are the key features of the Appleton A2 Series Industrial Cable Gland?

• A2 is cCSAus Certified for use in Ordinary (Unclassified) Locations.
• For use with unarmored cable and exterior braid armor cable with protective sheath.

What are the specifications of the Appleton A2 Series Industrial Cable Gland?

Environment: Ordinary (Unclassified) Locations
Product type and listings: Cable Gland
Materials: Aluminum, Stainless Steel, Nickel Plated Brass
Used with: Unarmored Cable, Braided Cable

Which Appleton catalog numbers belong to the A2 Series Industrial Cable Gland?

Appleton lists 45 catalog numbers in this series:

100A24005, 100A25, 115A24005, 2016A20505, 2016A20755, 2016A25, 20A20505, 20A20755, 20A25, 20S16A20505, 20S16A25, 20SA20505, 20SA20755, 20SA25, 25A20755, 25A21005, 25A25, 32A21005, 32A21255, 32A25, 40A21255, 40A21505, 40A25, 50A22005, 50A22505, 50A25, 50SA21505, 50SA22005, 50SA25, 63A22505, 63A23005, 63A25, 63SA22005, 63SA22505, 63SA25, 75A23005, 75A23505, 75A25, 75SA22505, 75SA23005, 75SA25, 90A23005, 90A23505, 90A25, 90A2X3505

How do I request a quote for the Appleton A2 Series Industrial Cable Gland?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
