Det-Tronics Ultra-High Speed Flame Detection and Releasing System Remote Input Output (Ultra FDRS RIO)

SKU: Ultra-FDRS-RIO
Manufacturer:
Det-Tronics

Bulk Orders

Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote

The Ultra FDRS RIOmodel allows for the remote installation of high speed deluge modules (HSDM) and enhanced discreet input output modules (EDIO). This concept allows for installation of the Ultra FDRS 2400, 3600, or 4800 models in a given area while the Ultra FDRS RIO is installed in a different area that is located physically closer to individual work areas. The Ultra FDRS RIO cabinet is ordered as needed in a quantity that is sized to the needs of the particular application.

Ultra FDRS Model RIO

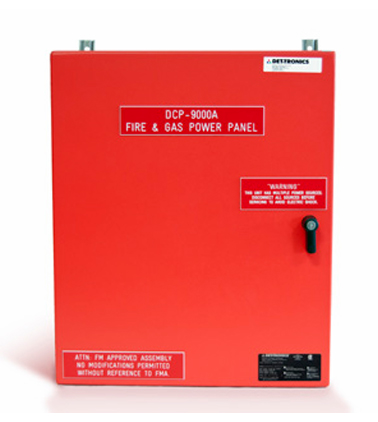

  • Red Painted (RAL 3020) Steel Enclosure, locking key handle door, mounting feet, NEMA 4
  • 36”(H) x 24”(W) x 8”(D) (914mm x 610mm x 203mm)
  • Accommodates up to eighteen (18) inputs from flame detectors (Class B)
  • Provides up to eighteen (18) 24VDC ultra-high-speed outputs (Class B)
  • Provides up to seven (7) non-high speed inputs or outputs
  • Lockable Physical Solenoid Disconnect Switches
  • Interposing terminals to accommodate field wiring
  • FM/CSA and SIL2 approved for indoor, non-hazardous areas
  • Permits compliance with NFPA 72 and NFPA 15 (Chapter 12)

Ultra-High-Speed Flame Detection and Releasing System (Ultra FDRS)

Model Enclosure Size
(mm)
Door
Window
EQP
Controller
Quantity
HSDM
Quantity
EDIO
Quantity
Physical
Disconnect
Switch
Quantity
Flame
Detector
Inputs
Ultra
High
Speed
24VDC
Outputs
Non
High
Speed
I/O
Ultra FDRS
2400
24″x20″x8″
(610mm x 508mm x
203mm)
Yes 1 1 1 2 6 6 7
Ultra FDRS
3600
36″x24″x8″
(914mm x 610mm x
203mm)
Yes 1 3 1 6 18 18 7
Ultra FDRS
4800
48″x24″x10″
(1219mm x 610mm x
254mm)
Yes 1 5 1 10 30 30 7
Ultra FDRS
RIO
36”x24”x8”
(914mm x 610mm x
203mm)
No 0 3 1 6 18 18 7

*Other non-standard Ultra FDRS options are available. These non-standard options may incur higher costs and longer lead times. Contact Det-Tronics for additional information on building a system that meets your requirements.

Det-Tronics Ultra FDRS systems are listed—an official designation that means the Authority Having Jurisdiction (AHJ) recognizes the systems as acceptable and the installed systems pass regular inspections.
