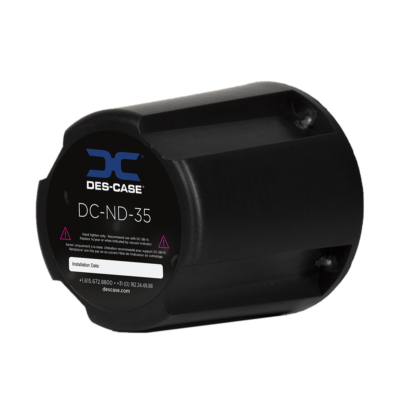

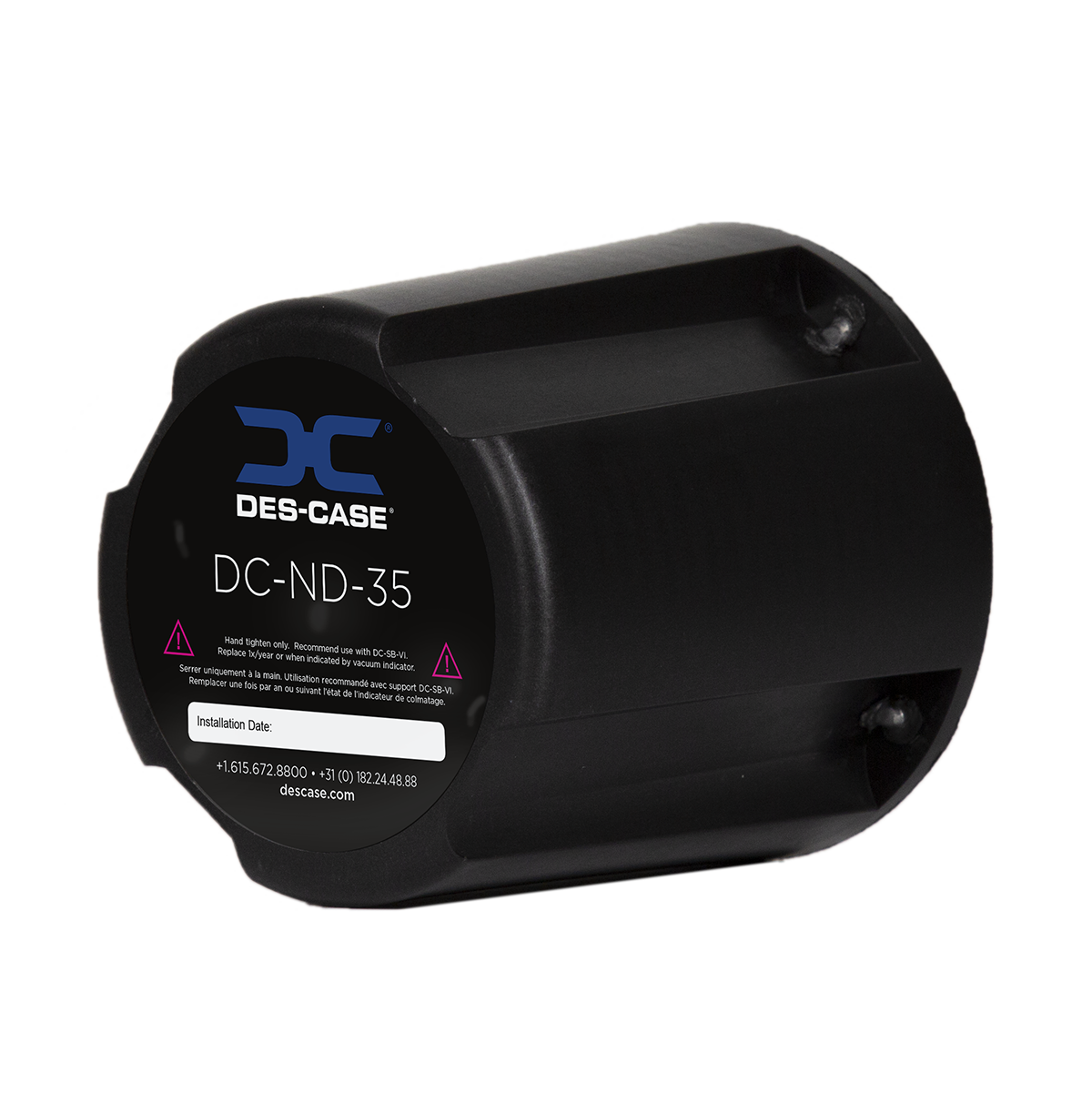

Des-Case DC-ND-35 Non-Desiccant Breather

Non-Desiccant Breathers

Des-Case Non-Desiccant breathers prevent contamination ingress in low humidity environments or in applications where water-based fluids are in use (e.g. water glycol hydraulic fluid). They help to prevent contamination by preventing free water as well as particles down to 1 micron from getting into the reservoir.

Features

By the Numbers

1. Spin-On Filter Cap
A spin-on filter cap provides increased dirt holding capacity and removes airborne contamination to 3-micron absolute.

2. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.

3. External Ribs
External ribs on shell to create greater durability and grip when installing or replacing breather.

4. Splash Guard
Glass filled nylon standpipe with incorporated splash guard for increased durability and chemical compatibility, while protecting desiccant from oil mist and splashing.

5. Optional Check Valves
High quality check valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life and protecting system integrity.

6. Threaded Mounting
Internal threads provide durability and stability and can be used with one of several adapter options.

Specifications

Model: 121 Series
Unit Height: 6.00 in (152 mm)
Unit Diameter: 4.10 in (104 mm)
Filter Efficiency: 3μ absolute (β3≥200)
Amount of ZR Gel: 2.20 lbs (1000 g)
Adsorption Capacity: 9.3 fl oz (288 g)
Max. Flow Rate: 53.0 cfm (1500 l/min)
Temperature Range: -40°F to 194°F (-40°C to 90°C)
Connection Size: 1 1/4″ BSP Male
Max. Airflow at 1 psid: 53.0 cfm (1500 l/min)
Gearbox/Storage Tank Max. Volume: N/A
Hydraulic Reservoir Max. Volume: N/A
