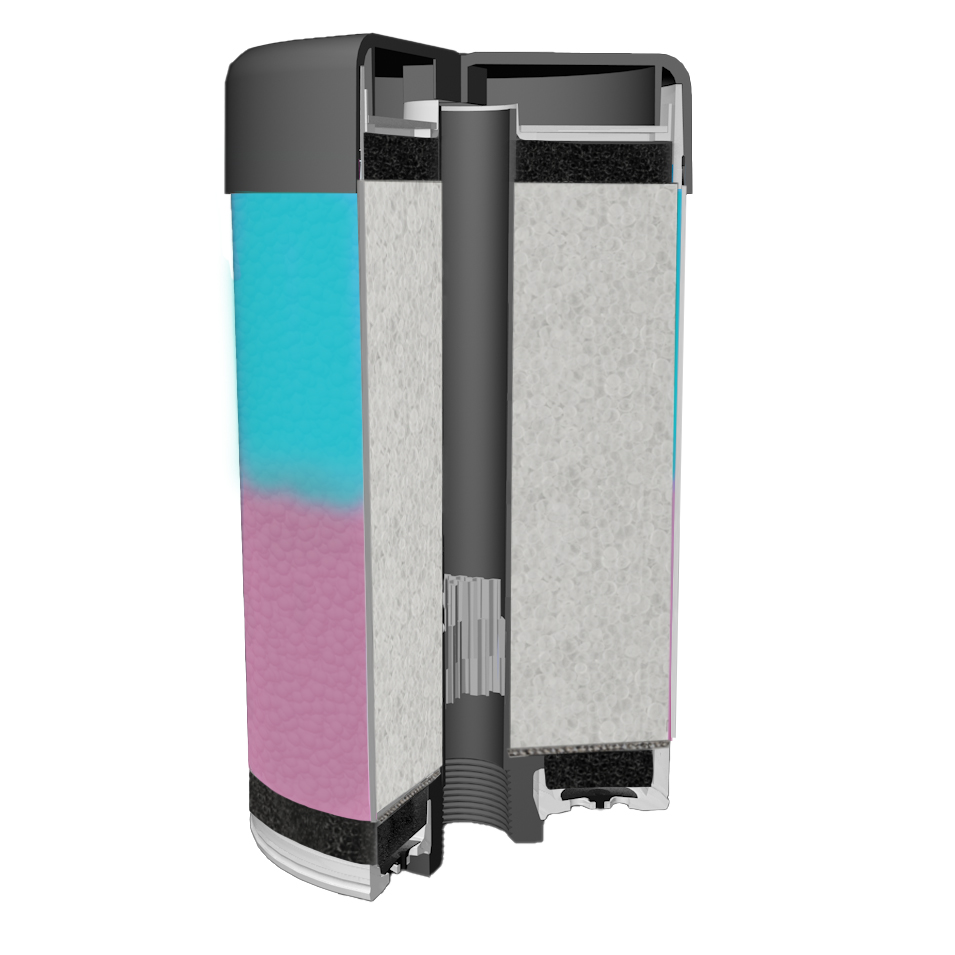

Des-Case DC-CHC-EX-4 Desiccant Breather

OUR PROPRIETARY COLORASSIST TECHNOLOGY COUPLED WITH THE HIGH-CAPACITY DESICCANT DELIVERS 30% MORE LIFE.

Features

1. HIGH-CAPACITY DESICCANT
High-capacity desiccant provides 30% more service life than color indicating silica gels.

2. COLORASSIST™ TECHNOLOGY INDICATOR
Enhanced color indicator that accurately gauges remaining life of the breather, diagnoses the source of moisture contamination, and improves in-use visibility.

3. SIX CHECK-VALVES
High-quality umbrella check-valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life, and protecting system integrity.

4. INTEGRATED NYLON STANDPIPE WITH THREADED MOUNTING
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, preventing inaccurate readings of desiccant saturation. Internal threads provide durability and stability and can be used with one of several adapters.

5. HONEYCOMB TECHNOLOGY OIL MIST REDUCER
The oil mist reducer is situated inside the standpipe, made from polypropylene for maximum chemical compatibility. Mimicking nature’s intricate honeycomb design, this feature allows oil mist to coalesce and drain back into the reservoir, rather than compromising the desiccant.

6. RESILIENT POLYCARBONATE BODY
Shock-absorbing, clear casing provides reliable service, easy visual maintenance, and UV resistance.

7. FILTER ELEMENTS
Polyester filter elements remove airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.

Specifications

2Volume of Desiccant: 140 in3 (2300 cc)
Temperature Range: -20 ̊F to 200 ̊F (-29 ̊C to 93 ̊C)
Connection Size: 1″ FNPT
Flow Rate: 24 cfm @1 psid (680 lpm)
Suction/Return Rate: 180 gpm @1 psid (680 lpm)
Gearbox & Storage Tank Max Volume: 1,000 gal (3,785 L)
Hydraulic Reservoir Max Volume: 400 gal (1,514 L)
