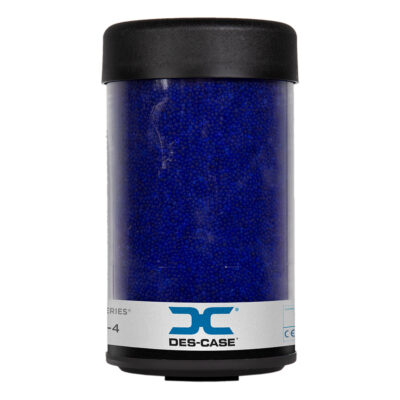

Des-Case DC-EX-1 Desiccant Breather
$149.14 – $894.85
Bulk Orders
Extended® Series Desiccant Breathers
Des-Case Extended Series® desiccant breathers combine the trusted materials and design of our Standard breathers with the check-valves of our VentGuard™ and HydroGuard® breathers, plus a new oil mist reducing feature, higher air flows and more than double the desiccant! These high airflow, long-lasting desiccant breathers are ideal for tank farms and large or remote applications.
Features
1–Six Check-Valves
High-quality umbrella check-valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life, and protecting system integrity.
2–Integrated Nylon Standpipe
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, preventing inaccurate readings of desiccant saturation.
3–Honeycomb Technology Oil Mist Reducer
The oil mist reducer is situated inside the standpipe, made from polypropylene for maximum chemical compatibility. Mimicking nature’s intricate honeycomb design, this feature allows oil mist to coalesce and drain back into the reservoir, rather than compromising the desiccant.
4–Resilient Polycarbonate Body
Shock-absorbing, clear casing provides reliable service, easy visual maintenance, and UV resistance.
5–Filter Element
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.
6–Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
7–Water Vapor Adsorbent
Silica gel adsorbs water from incoming air and can hold up to 40% of its weight. Condition is indicated by change of color from blue to light pink.
8– Secondary Filter Element
Second polyester filter element protects against migration of desiccant dust, providing maximum efficiency.
9–Threaded Mounting
Internal threads provide durability and stability and can be used with one of several adapters.
Specifications
Unit Height: 4.7 in (119 mm)
Unit Diameter: 5.66 in (143.88 mm)
Filter Efficiency: 3μ absolute (β3≥200)
Amount of Silica Gel: 1.2 lbs (0.54 kg)
Adsorption Capacity: 7.7 fl oz (228 ml)
Flow Rate: 27 cfm (765 lpm)
Operating Temp. Range: -20°F to 200°F (-29°C to 93°C)
Connection Size: 1″ Female (FNPT)
Suction/Return Rate at 1 psid: 202 gpm (765 lpm)
Gearbox/Storage Tank Max. Volume: 400 gal (1,514 L)
Hydraulic Reservoir Max. Volume: 100 gal (379 L)
Micron Rating: 3 micron
Micron Rating: 3 micron
Additional information
Weight | N/A |
---|---|
Size | 1 Pack, Case of 6 |
