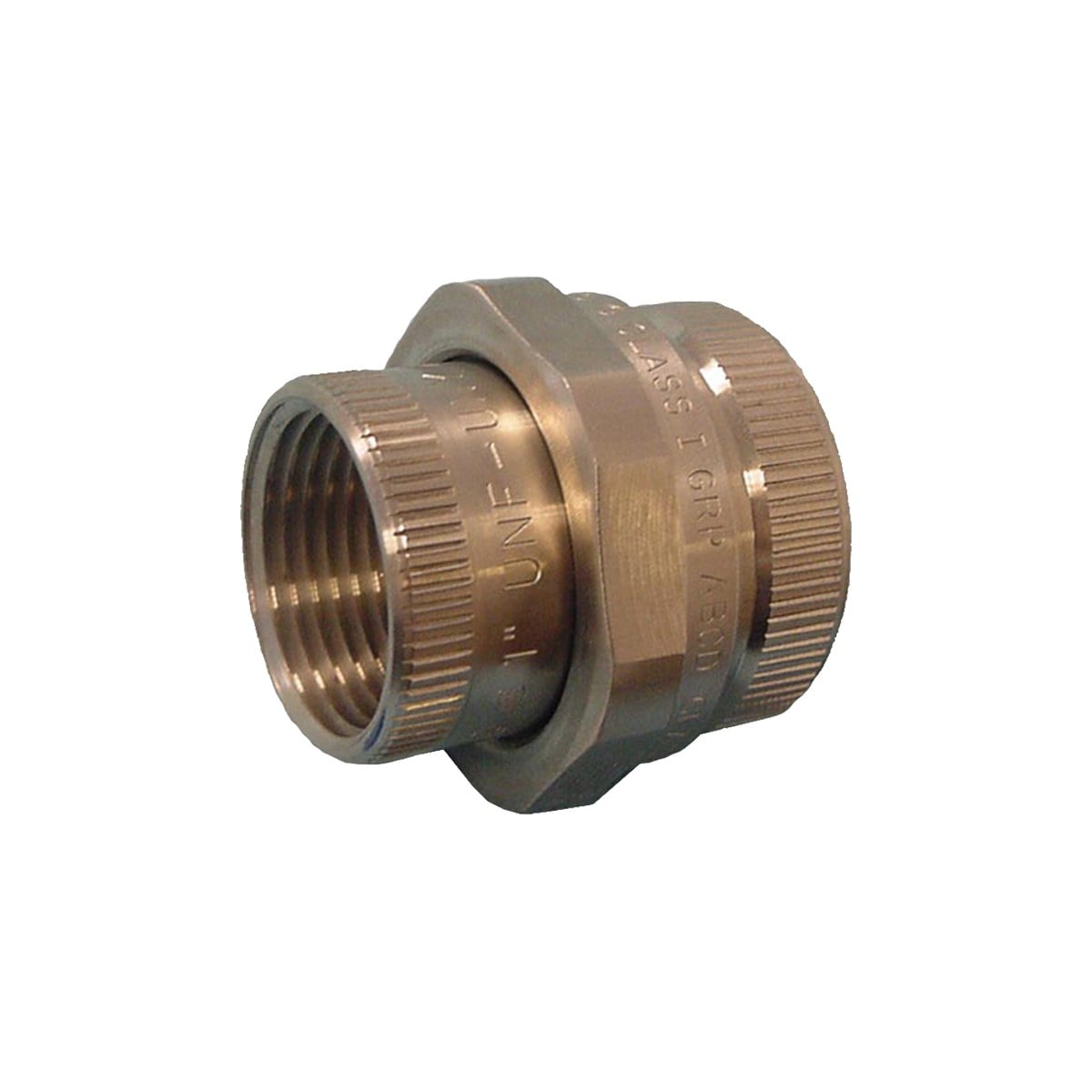

Appleton UNY, UNF, and UNL Unions

What are Appleton UNY, UNF, and UNL Unions?

Appleton UNY, UNF, and UNL Unions are used for joining conduit and connecting conduit to enclosures and facilitate modifications by permitting the removal of an enclosure without the need to turn or remove the conduit. These explosionproof, dust-ignitionproof unions have accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity. A smooth, rounded integral bushing in each hub protects conductor insulation. Non-expansion unions have a concentric ring interlocked design allowing for a smaller diameter, making them ideal for use in tighter spaces. Expansion unions have a one-piece design, eliminating need for disassembly during installation. The telescoping cylinder within cylinder design permits expansion or contraction.

What are the key features of the Appleton UNY, UNF, and UNL Unions?

• UNY, UNF, and UNL are UL Listed and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded rigid metal conduit and IMC.

What are the specifications of the Appleton UNY, UNF, and UNL Unions?

Environment: Hazardous (Classified) Locations
Product type and listings: Conduit Union
Materials: Aluminum, Iron, Steel, Copperfree Aluminum
Used with: IMC, Threaded Rigid Metal Conduit

Which Appleton catalog numbers belong to the UNY, UNF, and UNL Unions?

Appleton lists 119 catalog numbers in this series:

UNF100, UNF100A, UNF100NR, UNF100NRA, UNF100NRSS, UNF100S, UNF100SS, UNF125, UNF125A, UNF125NR, UNF125NRA, UNF150, UNF150A, UNF150G, UNF150NR, UNF150NRA, UNF200, UNF200A, UNF200G, UNF200NR, UNF200NRA, UNF250A, UNF250R, UNF250RA, UNF300, UNF300A, UNF300G, UNF300R, UNF300RA, UNF350A, UNF350R, UNF350RA, UNF400, UNF400A, UNF400G, UNF400R, UNF400RA, UNF400RNP, UNF50, UNF500, UNF500R, UNF50NR, UNF50NRA, UNF50NRSS, UNF50SS, UNF600, UNF600R, UNF75, UNF7550NR, UNF7550NRA, UNF75NR, UNF75NRA, UNF75NRSS, UNFL100, UNFL50, UNFL75, UNL5075N, UNL50N, UNL7550N, UNL75N, UNY100, UNY100NR, UNY100NRA, UNY100NRSS, UNY100SS, UNY125, UNY125A, UNY125G, UNY125NR, UNY125NRA, UNY150A, UNY150G, UNY150NR, UNY150NRA, UNY200, UNY200A, UNY200G, UNY200NR, UNY200NRA, UNY250, UNY250A, UNY250G, UNY250R, UNY250RA, UNY250RNP, UNY300, UNY300A, UNY300G, UNY300R, UNY300RA, UNY350, UNY350A, UNY350R, UNY350RA, UNY400A, UNY400R, UNY400RA, UNY50, UNY500, UNY500R, UNY50NR, UNY50NRA, UNY50NREP, UNY50NRSS, UNY50S, UNY50SS, UNY600, UNY600R, UNY75, UNY7550NR, UNY7550NRA, UNY75NR, UNY75NRA, UNY75NREP, UNY75NRSS, UNY75SS, UNYL100, UNYL50, UNYL75

How do I request a quote for the Appleton UNY, UNF, and UNL Unions?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
