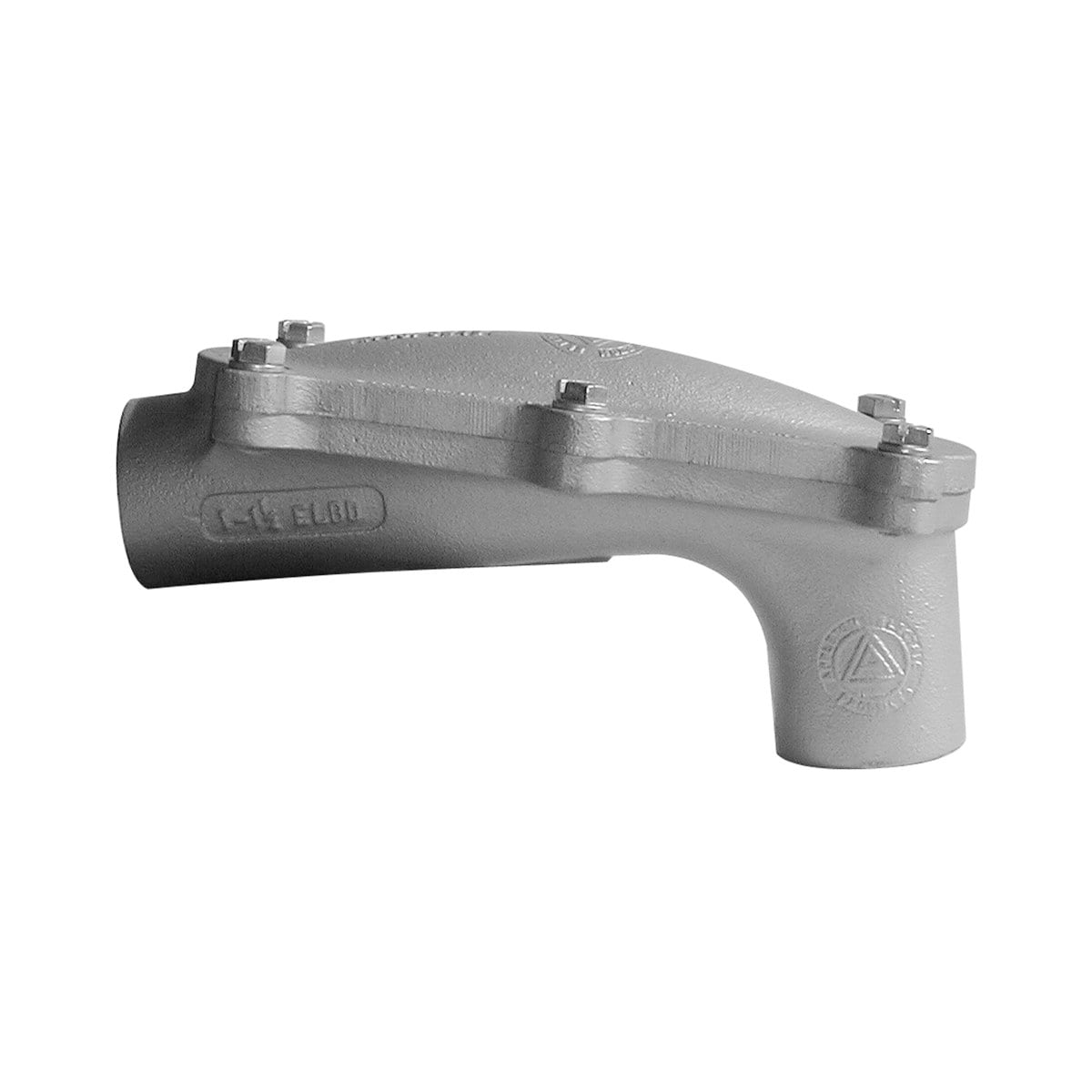

Appleton ELBD Pulling Elbows

What are Appleton ELBD Pulling Elbows?

Appleton ELBD Pulling Elbows are used to join and make 90° bends in lengths of conduit. These explosionproof, dust-ignitionproof elbows have accurately tapped, tapered threaded hubs for tight, rigid joints. Smooth cover opening and pulling surfaces prevents abrasion of the conductors. The cover opens on an angle, permitting conductors to be pulled straight through either hub allowing the elbow to act as a pulling fitting. The 2-1/2 thru 4 inch, malleable iron elbows feature built-in rollers to facilitate cable pulling.

What are the key features of the Appleton ELBD Pulling Elbows?

• ELBD is UL Listed for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit and IMC.

What are the specifications of the Appleton ELBD Pulling Elbows?

Environment: Hazardous (Classified) Locations
Product type and listings: Pulling Elbow, Conduit Elbow
Materials: Iron, Copperfree Aluminum
Used with: IMC, Threaded Metal Conduit

Which Appleton catalog numbers belong to the ELBD Pulling Elbows?

Appleton lists 20 catalog numbers in this series:

ELBD100, ELBD100A, ELBD125, ELBD125A, ELBD150, ELBD150A, ELBD200, ELBD200A, ELBD250, ELBD250A, ELBD300, ELBD300A, ELBD350, ELBD350A, ELBD400, ELBD400A, ELBD50, ELBD50A, ELBD75, ELBD75A

How do I request a quote for the Appleton ELBD Pulling Elbows?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
