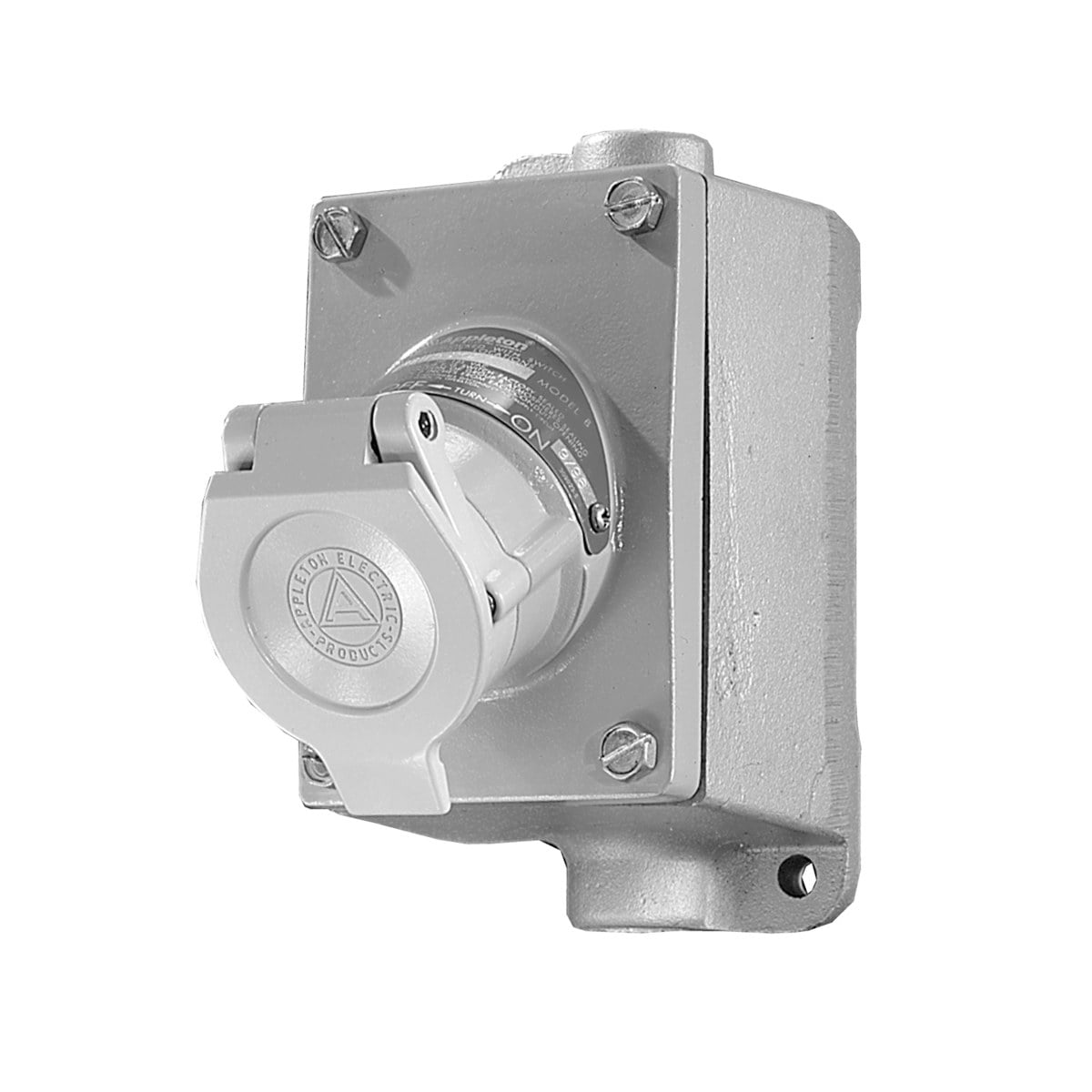

Appleton U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles

What are Appleton U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles?

Appleton U-Line Contender 20 Amp Factory Sealed Plugs and Receptacles are ideal for use in damp or corrosive conditions where receptacles are used with stationary or portable electrically operated devices such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, and pumps. These explosionproof, dust-ignitionproof receptacles offer a dead front design, therefore, it is not energized until plug is fully inserted and switch is engaged. The insulators provide superior dielectric and mechanical strength and lowest arc tracking. The ECP plug fits any standard non-explosionproof receptacle (Ordinary [Unclassified] Location) (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles. U-Line receptacles are designed so that they can’t be energized by a plug designed for Ordinary (Unclassified) locations.

What are the key features of the Appleton U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles?

• U-Line Contender 20 Amp Plugs and Receptacles are UL Listed for use in Hazardous (Classified) Locations.
• 125 or 250 Vac. 20 Amp.
• Appleton U-Line Contender ENR receptacles are interchangeable with Crouse-Hinds ENP plugs of like NEMA blade configurations. Appleton U-Line Contender ENR receptacle covers are UL Classified to mount on Crouse-Hinds Ark-Gard Series EDS mounting boxes. Appleton U-Line ECP and NCP plugs are UL Classified for use with CrouseHinds Ark-Gard ENR receptacles and PowerGard CFS Series receptacles.

What are the specifications of the Appleton U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles?

Environment: Hazardous (Classified) Locations
Voltage: 125 Vac, 250 Vac
Amperage: 20 Amp

Which Appleton catalog numbers belong to the U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles?

Appleton lists 55 catalog numbers in this series:

ENR11201, ENR11201SA, ENR11202, ENR11202SA, ENR12201, ENR12201GFI, ENR12201GFISA, ENR12201SA, ENR12202, ENR21201, ENR21201SA, ENR21202, ENR21202SA, ENR22201, ENR22201GFI, ENR22201GFISA, ENR22202, ENR22202SA, ENR31201, ENR31201SA, ENR31202, ENR31202SA, ENR32201, ENR32201GFI, ENR32201GFISA, ENR32201SA, ENR32202, ENR32202SA, ENR5201, ENR6202, ENRC11201, ENRC11201SA, ENRC11202, ENRC12201, ENRC12201GFI, ENRC12201GFISA, ENRC12202, ENRC21201, ENRC21201SA, ENRC21202, ENRC21202SA, ENRC22201, ENRC22201GFI, ENRC22201GFISA, ENRC22201SA, ENRC22202, ENRC22202SA, ENRC31201, ENRC31201SA, ENRC31202, ENRC32201, ENRC32201GFI, ENRC32201GFISA, ENRC32202, GFS1

How do I request a quote for the Appleton U-Line Contender Factory Sealed 20 Amp Plugs and Receptacles?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
