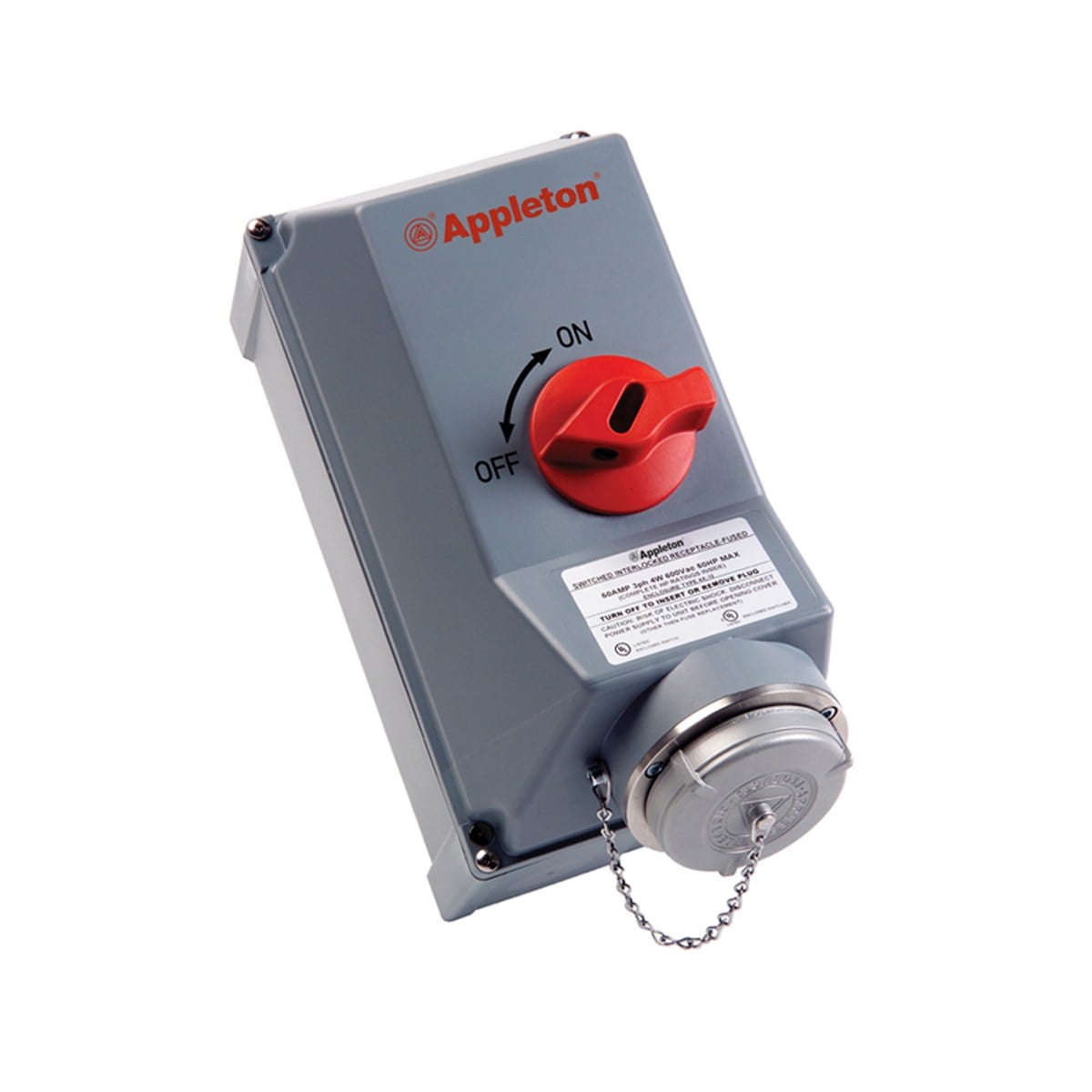

Appleton ASR Nonmetallic Interlocked Receptacles

What are Appleton ASR Nonmetallic Interlocked Receptacles?

Appleton ASR Nonmetallic Interlocked Receptacles are ideal for use where an interlocked disconnect switch is desired to control a Powertite receptacle. Interlock prohibits plug insertion or removal under load; therefore the plug is secured in place by interlock and cannot be withdrawn unless interlock switch is actuated. They are ideal for heavy duty applications where a service outlet is required for portable or fixed electrical equipment. ASR Receptacles are also suitable for use as a motor disconnect. Manufactured of thermoplastic polyester with seamless form in place gasket make it ideal for use in hose-down areas, damp or corrosive locations, raintight or watertight non-hazardous applications.

What are the key features of the Appleton ASR Nonmetallic Interlocked Receptacles?

• ASR is cULus Listed for use in Ordinary (Unclassified) Locations.
• 600 Vac. 30 or 60 Amp. Fused or Non-Fused.

What are the specifications of the Appleton ASR Nonmetallic Interlocked Receptacles?

Environment: Ordinary (Unclassified) Locations
Voltage: 600 Vac
Amperage: 30 Amp, 60 Amp

Which Appleton catalog numbers belong to the ASR Nonmetallic Interlocked Receptacles?

Appleton lists 14 catalog numbers in this series:

ASR3034, ASR3034F, ASR30AUX, ASR30FDAUX, ASR3430MIRCF, ASR3430MIRCNF, ASR3460MIRCF, ASR3460MIRCNF, ASR6034, ASR6034F, ASR60AUX, ASR60FDAUXC, ASR60FDAUXO, NMACP3034BC

How do I request a quote for the Appleton ASR Nonmetallic Interlocked Receptacles?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
