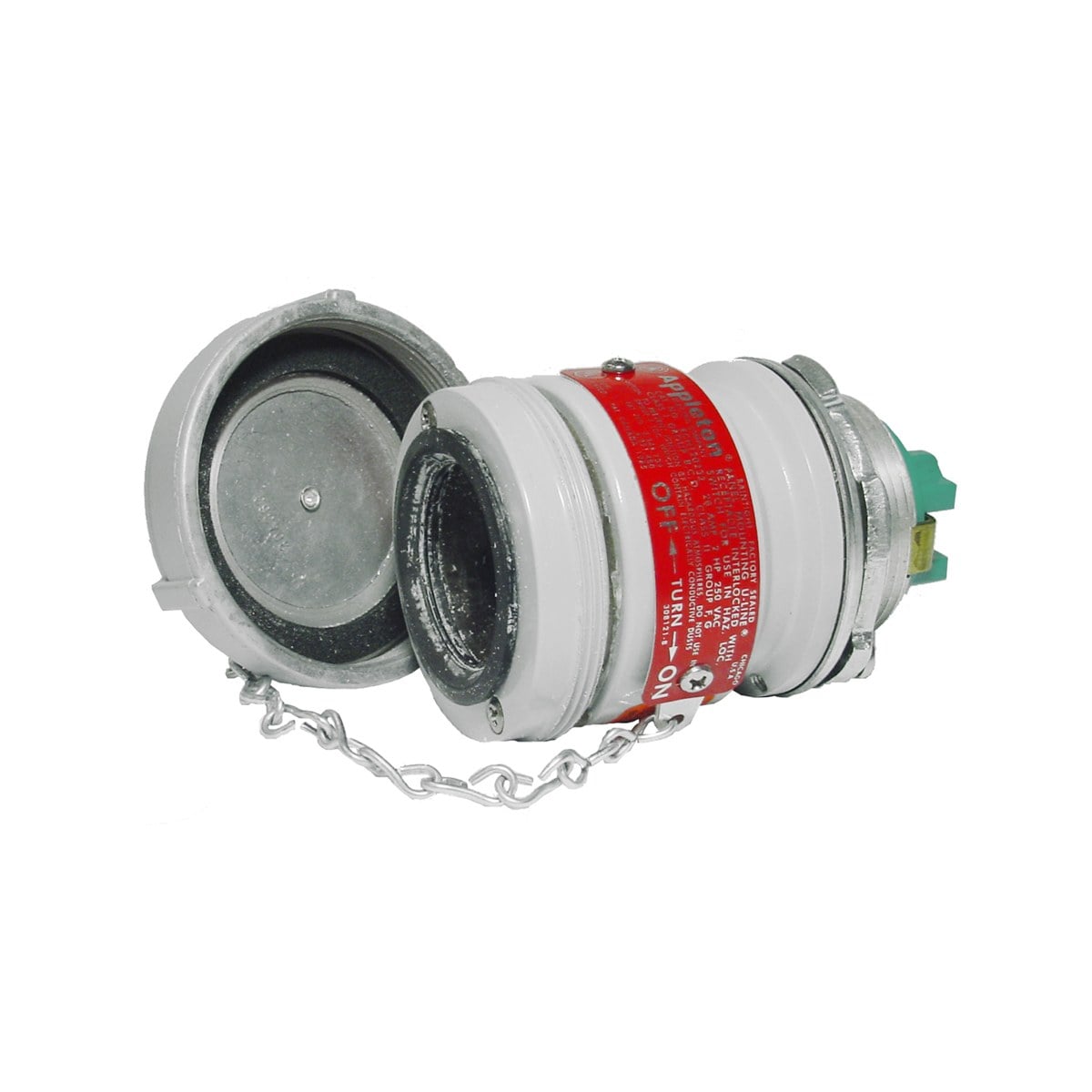

Appleton U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles

What are Appleton U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles?

Appleton U-Line Factory Sealed 20 Amp Panel Mounting Receptacles provide dead-front safety construction and are suitable for use with approved enclosures having threaded or non-threaded openings. They are ideal for use with electrical equipment in Class I, Division 1 or Class I, Division 2 environments requiring an explosionproof, dust-ignitionproof, and watertight solution. ECHT is designed to be used where the unit is threaded into 1-1/2″ NPT (tapered) threads, such as in panelboards. ECH is designed to be used where the unit is threaded into 2″ NPSM (straight) threads.

What are the key features of the Appleton U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles?

• U-Line 20 Amp Panel Mounting Receptacles are UL Listed and CSA Certified for use in Hazardous (Classified) Locations.
• 125 or 250 Vac. 20 Amp.

What are the specifications of the Appleton U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles?

Environment: Hazardous (Classified) Locations
Voltage: 125 Vac, 250 Vac
Amperage: 20 Amp

Which Appleton catalog numbers belong to the U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles?

Appleton lists 4 catalog numbers in this series:

ECH2023, ECH20232, ECHT2023, ECHT20232

How do I request a quote for the Appleton U-Line 20 Amp ECH/ECHT Panel Mounting Receptacles?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
