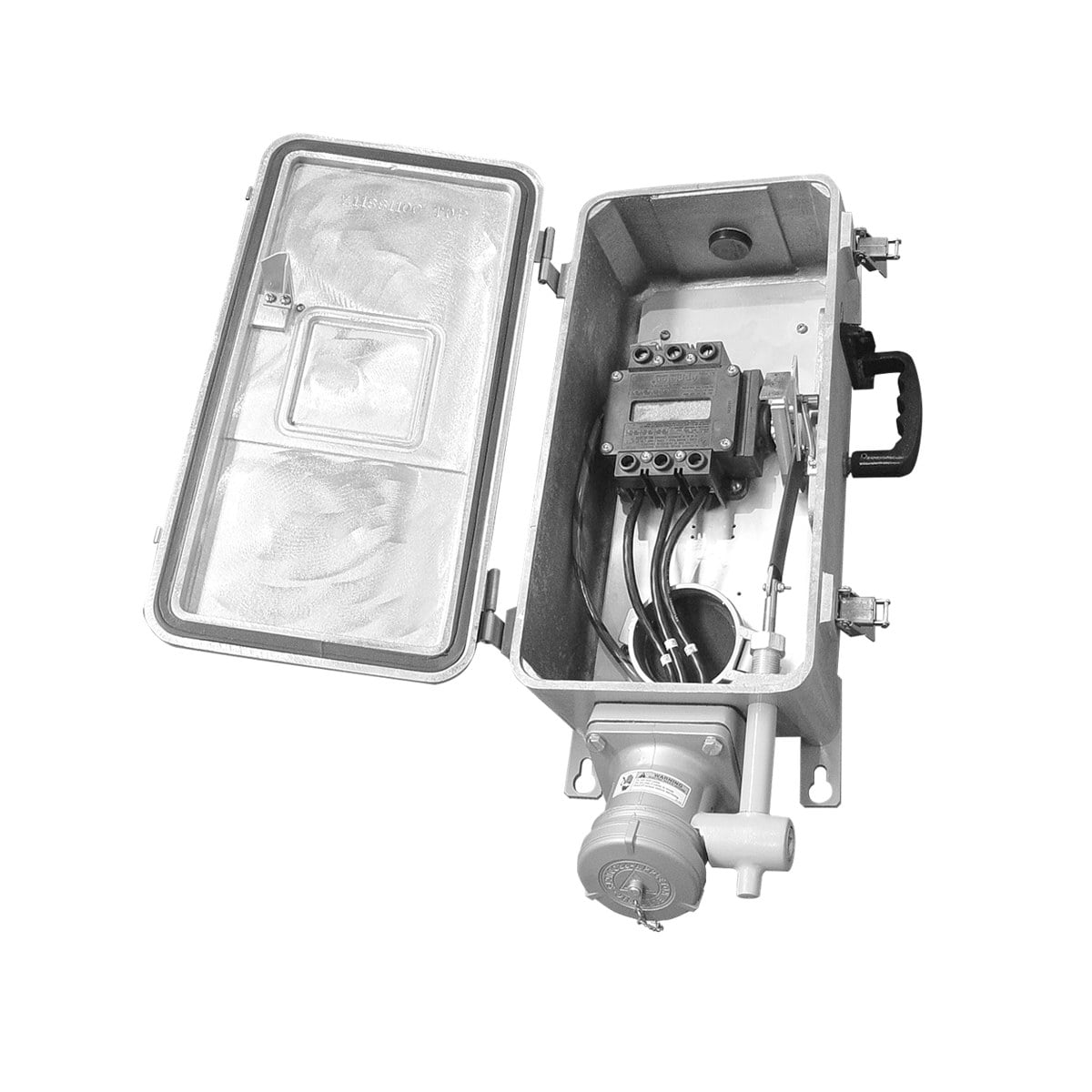

Appleton ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles

What are Appleton ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles?

Appleton ID2SR Factory Sealed Interlocked Switched Receptacles deliver power to portable and permanent equipment like lighting systems, power tools, welding equipment, compressors, pumps, motors, and other similar devices in hazardous, damp and corrosive environments. Designed to provide short circuit protection, they are available in fused and non-fused versions. These pin and sleeve receptacles provide Style 2 (shell and extra pole) grounding, and positive polarization, ensuring only plugs of the same style, number of poles, and amperage rating may be used. The ACP plugs have mechanical cable clamps to prevent strain on cables; they meet or exceed UL strain relief pull-out requirements.

What are the key features of the Appleton ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles?

• ID2SR is CSA Certified for use in Hazardous (Classified) Locations.
• 240 or 600 Vac. 30, 60 or 100 Amp.

What are the specifications of the Appleton ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles?

Environment: Hazardous (Classified) Locations
Voltage: 240 Vac, 600 Vac
Amperage: 30 Amp, 60 Amp, 100 Amp

Which Appleton catalog numbers belong to the ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles?

Appleton lists 5 catalog numbers in this series:

ID2SR3023W, ID2SR3034FW, ID2SR3034W, ID2SR6023, ID2SR6034

How do I request a quote for the Appleton ID2SR 30, 60 and 100 Amp Series Interlocked Receptacles?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
