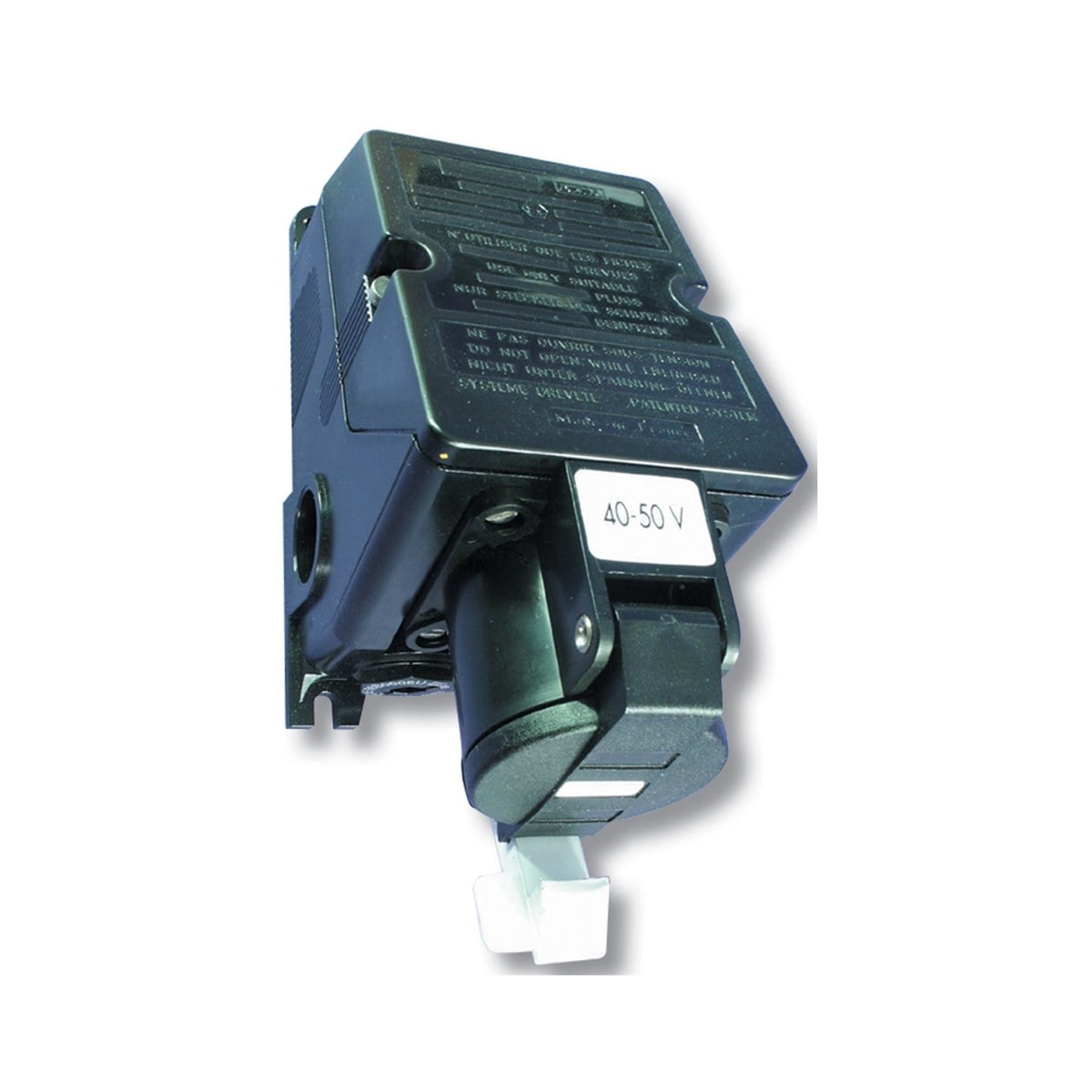

Appleton PRE Series 16 Amp Plugs and Sockets

What are Appleton PRE Series 16 Amp Plugs and Sockets?

Appleton ATX PRE Series 16 Amp Plugs and Sockets are ideal for use where an increased safety (Ex e) socket is required for use with portable or stationery electrical equipment such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, and pumps. Plug and socket system is designed with a safe disconnect mechanism to ensure maximum hazardous location protection in damp, wet or corrosive environments. The sockets are available in wall-mount, flush-mount and mobile versions. The PRE is designed so that the contact separation is in a flameproof chamber, while the automatic electrical disconnection of each phase is contained in a second flameproof chamber. They have a short circuit protection of 20 kA, while normal reference is 10 kA. Each voltage model is color coded for easy identification. For added safety the receptacles are keyed to accept only ATX plugs (other plugs cannot be accidently inserted).

What are the key features of the Appleton PRE Series 16 Amp Plugs and Sockets?

• PRE is ATEX, IECEx, and INMETRO Certified for use in Hazardous (Classified) Locations.
• 20/25, 40/50, 100/130, 200/250, 380/415, 50/500, or 480/500 Vac or 20/50 Vdc. 16 Amp.

What are the specifications of the Appleton PRE Series 16 Amp Plugs and Sockets?

Environment: Hazardous (Classified) Locations
Voltage: 20/25 Vac, 20/50 Vdc, 40/50 Vac, 50/500 Vac, 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac
Amperage: 16 Amp

Which Appleton catalog numbers belong to the PRE Series 16 Amp Plugs and Sockets?

Appleton lists 37 catalog numbers in this series:

96886, 97426, PRE216FW1, PRE216MW1, PRE216PW1, PRE216RW1, PRE316FB, PRE316FP, PRE316FY, PRE316MB, PRE316MP, PRE316MY, PRE316PB, PRE316PP, PRE316PY, PRE316RB, PRE316RP, PRE316RY, PRE416FB, PRE416FN, PRE416MB, PRE416MN, PRE416PB, PRE416PN, PRE416PR, PRE416RB, PRE416RN, PRE416RR, PRE432FR, PRE516PB, PRE516PG, PRE516PR, PRE516RG, PRE516RR, PRE616MP, PRE616PP, PRE616RP

How do I request a quote for the Appleton PRE Series 16 Amp Plugs and Sockets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
