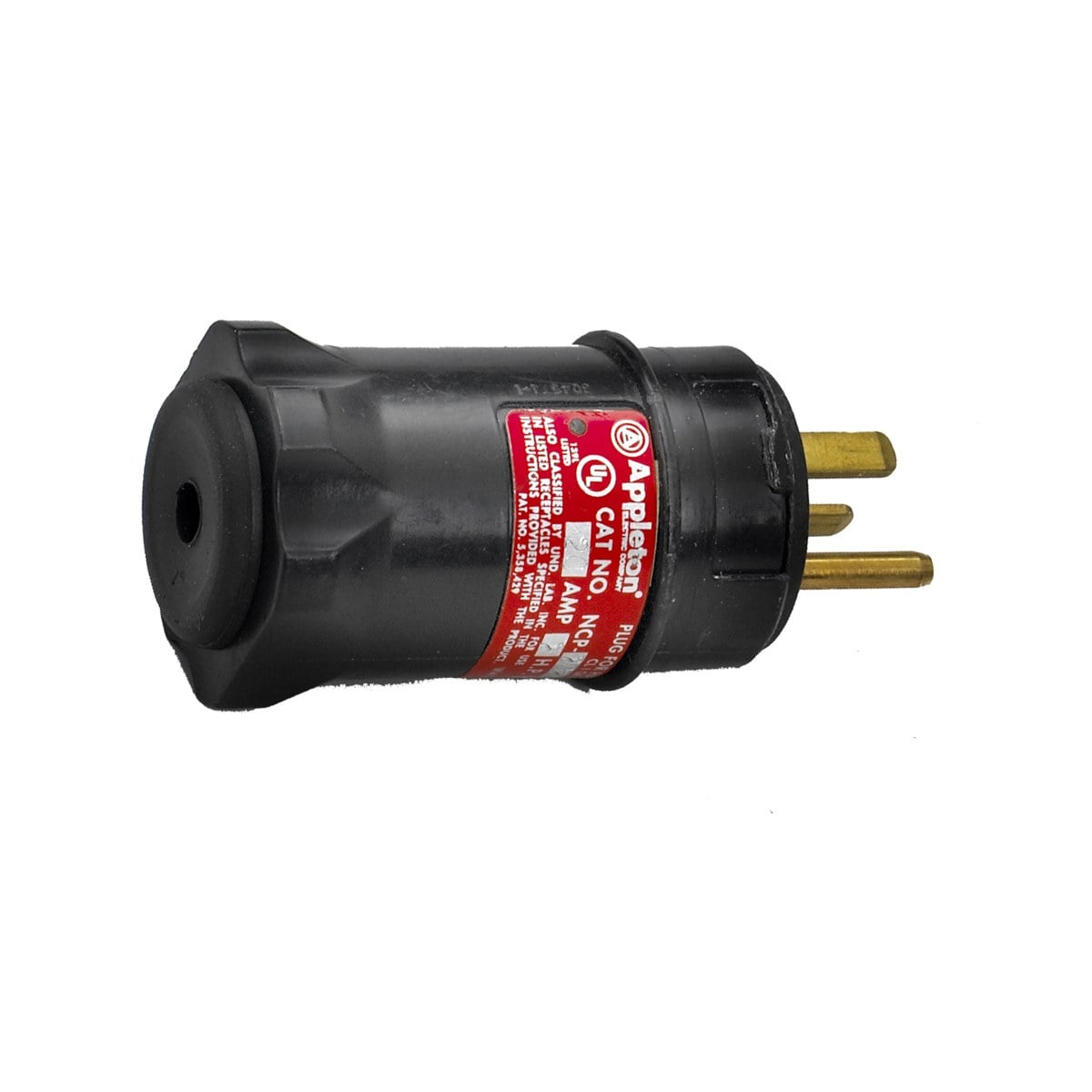

Appleton U-Line Interchanger 15 and 20 Amp Plugs

What are Appleton U-Line Interchanger 15 and 20 Amp Plugs?

Appleton U-Line Interchanger Plugs deliver power to portable and permanent electrical equipment like lighting systems, power tools, welding equipment, compressors, pumps, motors, and other similar devices. These watertight plugs reduce the risks of power outages, and damage to vital equipment, and even protects against ingress of water, even when the plug is not mated. They fit any standard non-explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line explosionproof receptacles. The ECP plug is suitable for use in such areas as refineries, petrochemical plants, and other areas where ignitable gases are present. A twist of the plug produces an audible “click” to indicate fast make and break of built-in switch contacts, ensuring it cannot be accidentally pulled out. The NCP plug is ideal where moisture or corrosion is a constant problem, such as production facilities on marine platforms, and pipeline transportation facilities. It features a special neoprene watertight plug bushing that accommodates flexible cords ranging from .538″ to .639″ in diameter.

What are the key features of the Appleton U-Line Interchanger 15 and 20 Amp Plugs?

• ECP and NCP can be used in Hazardous (Classified) Locations with approved UL Listed and CSA Certified Receptacles.
• Appleton U-Line ECP and NCP plugs are UL Classified for use with Crouse-Hinds Ark-Gard ENR receptacles and PowerGard CFS Series receptacles.
• 125 or 250 Vac. 15 or 20 Amp.

What are the specifications of the Appleton U-Line Interchanger 15 and 20 Amp Plugs?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Voltage: 125 Vac, 250 Vac
Amperage: 20 Amp, 15 Amp

Which Appleton catalog numbers belong to the U-Line Interchanger 15 and 20 Amp Plugs?

Appleton lists 6 catalog numbers in this series:

ECP1523, ECP2023, ECP20232, NCP1523, NCP2023, NCP20232

How do I request a quote for the Appleton U-Line Interchanger 15 and 20 Amp Plugs?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
