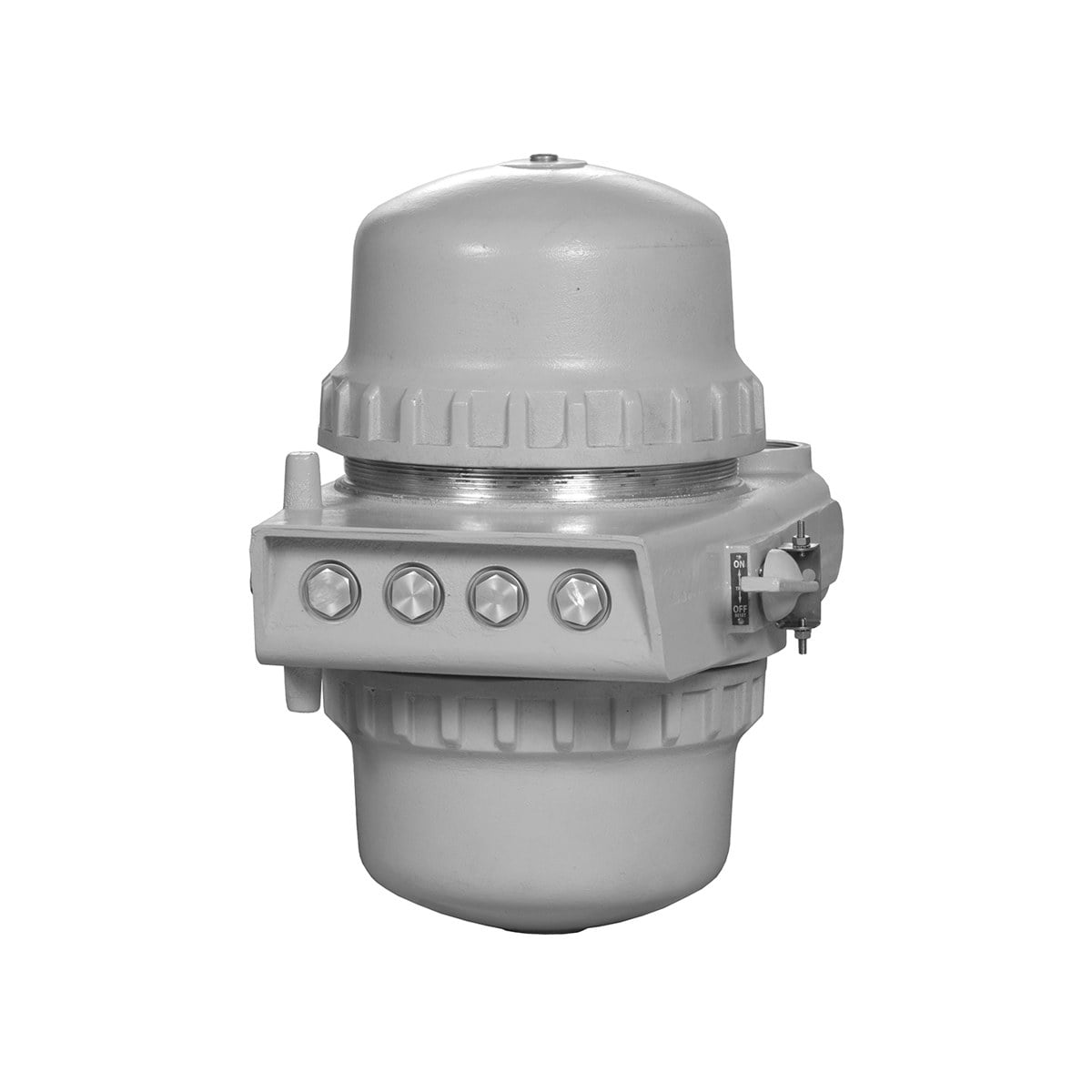

Appleton Threaded Circuit Breakers and Enclosures

What are Appleton Threaded Circuit Breakers and Enclosures?

Appleton Threaded Circuit Breakers and Enclosures are used for overload and short circuit protection. They provide disconnect means and thermal time delay overload protection. Ideal for use where hazardous materials are handled or stored, the explosionproof, dust-ignitionproof, watertight enclosure is designed with Acme screw type square threads to prevent seizing. Bell threads are located inside the housing to protect against damage or contaminants. Enclosures can be furnished with or without breakers. There are standard outlets for line and load wiring, plugged 1/2 inch outlets on the top and bottom for breather and drain. The breakers are mounted on a painted removable pan.

What are the key features of the Appleton Threaded Circuit Breakers and Enclosures?

• AE is UL Listed for use in Hazardous (Classified) Locations.
• 240, 480, or 600 Vac. 100, 150, 250, 400, or 600 Amp.

What are the specifications of the Appleton Threaded Circuit Breakers and Enclosures?

Environment: Hazardous (Classified) Locations
Product type and listings: Circuit Breaker, Explosionproof, Dust-ignitionproof, Watertight
Voltage: 240 Vac, 480 Vac, 600 Vac
Amperage: 100 Amp, 150 Amp, 400 Amp, 250 Amp, 600 Amp

How do I request a quote for the Appleton Threaded Circuit Breakers and Enclosures?

Request a quote with the Appleton catalog number or your specification and the quantity. We confirm price, availability and lead time with the quote.
