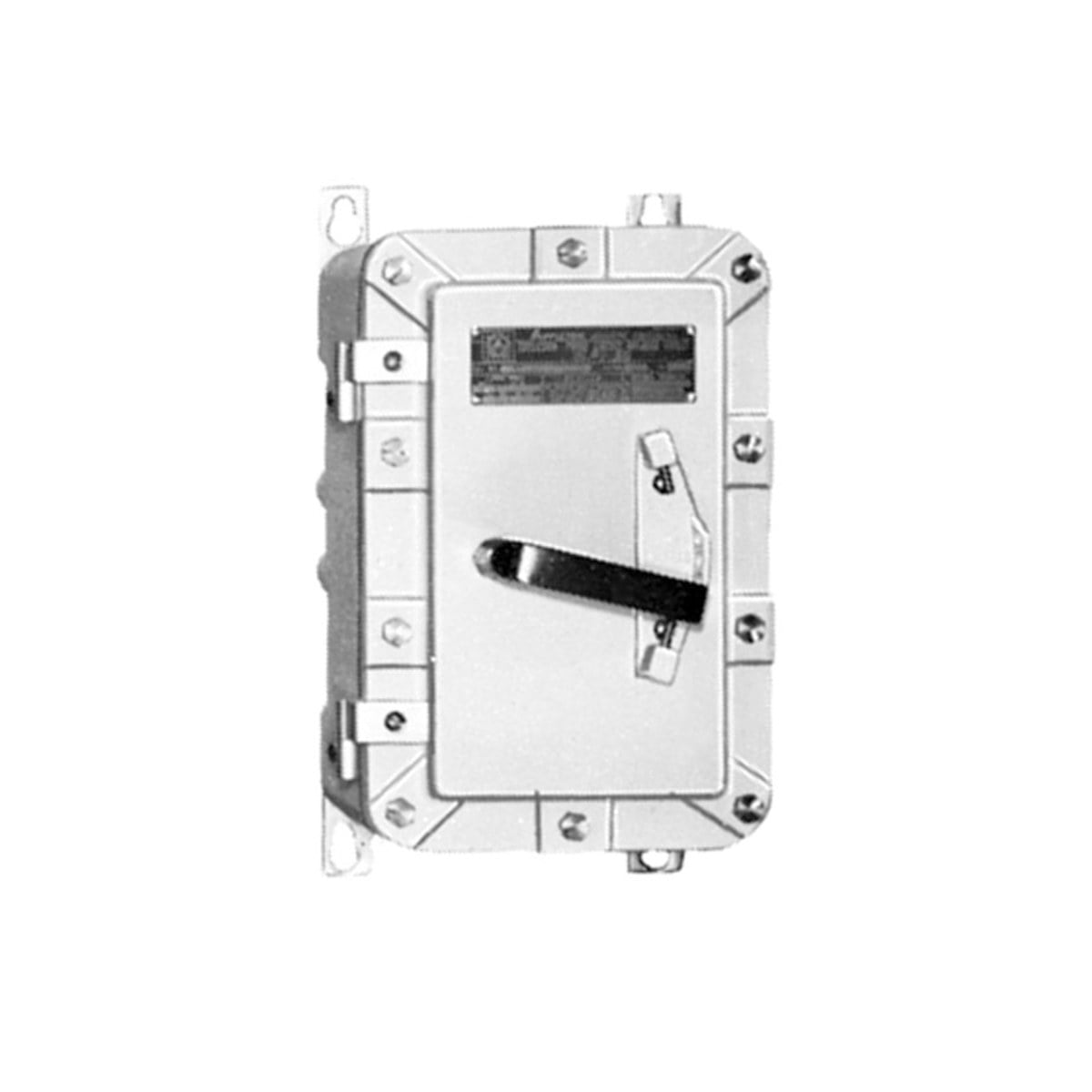

Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)

What is the Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)?

Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures are CSA Certified to be used for the protection and control of electrical equipment and circuits. The thermal magnetic breakers provide short circuit protection and thermal time delay overload protection, plus a disconnect means for service entrances and feeder or branch circuits used for lighting, heating, motors and equipment. Ideal for use in hazardous locations or in damp, wet or corrosive environments, the explosionproof, dust-ignitionproof enclosure surfaces are precision ground to explosionproof specifications. The breaker handle is positive operating and accommodates up to 3 locks. The breaker actuator is designed to self-locate on the breaker handle, preventing damage to the breaker toggle if the door is closed without aligning handle with breaker toggle position. The left side cover hinges are removable, allowing easier access to the interior for installation and maintenance, or can be left in place during routine maintenance to help protect the explosionproof machined surface. With four removable mounting lugs with key holes, the EB Series can easy be installed as an individual mounting or on a rack.

What are the key features of the Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)?

• EB is CSA Certified for use in Hazardous (Classified) Locations.
• 480 or 600 Vac, 250 Vdc. 15 to 225 Amp.

What are the specifications of the Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)?

Environment: Hazardous (Classified) Locations
Product type and listings: Circuit Breaker, External Operation, Explosionproof, Dust-ignitionproof
Voltage: 250 Vdc, 480 Vac, 600 Vac
Amperage: 15 to 225 Amp

Which Appleton catalog numbers belong to the EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)?

Appleton lists 71 catalog numbers in this series:

EB2EH2W100CN, EB2EH2W15CN, EB2EH2W20CN, EB2EH2W30CN, EB2EH2W40CN, EB2EH2W50CN, EB2EH2W70CN, EB2EH2W90CN, EB2EH3W15CN, EB2EH3W20CN, EB2EH3W30CN, EB2EH3W40CN, EB2EH3W50CN, EB2EH3W70CN, EB2EH3W90CN, EB2FB2W100CN, EB2FB2W125CN, EB2FB2W150CN, EB2FB2W15CN, EB2FB2W20CN, EB2FB2W30CN, EB2FB2W40CN, EB2FB2W50CN, EB2FB2W60CN, EB2FB2W70CN, EB2FB2W90CN, EB2FB3W100CN, EB2FB3W125CN, EB2FB3W15CN, EB2FB3W15CNDV, EB2FB3W20CN, EB2FB3W30CN, EB2FB3W40CN, EB2FB3W40CNDV, EB2FB3W50CN, EB2FB3W60CN, EB2FB3W70CN, EB2FB3W90CN, EB2HF2W100CN, EB2HF2W125CN, EB2HF2W150CN, EB2HF2W15CN, EB2HF2W175CN, EB2HF2W200CN, EB2HF2W20CN, EB2HF2W225CN, EB2HF2W30CN, EB2HF2W40CN, EB2HF2W50CN, EB2HF2W70CN, EB2HF2W90CN, EB2HF3W100CN, EB2HF3W100CN4X, EB2HF3W125CN, EB2HF3W150CN, EB2HF3W150CN4X, EB2HF3W15CN, EB2HF3W15CNDV, EB2HF3W175CN, EB2HF3W200CN, EB2HF3W20CN, EB2HF3W20CNDV, EB2HF3W225CN, EB2HF3W30CN, EB2HF3W40CN, EB2HF3W40CNDV, EB2HF3W50CN, EB2HF3W60CN, EB2HF3W70CN, EB2HF3W70CN4X, EB2HF3W90CN

How do I request a quote for the Appleton EB Series Bolt-ON Series Circuit Breakers and Enclosures (CEC)?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
