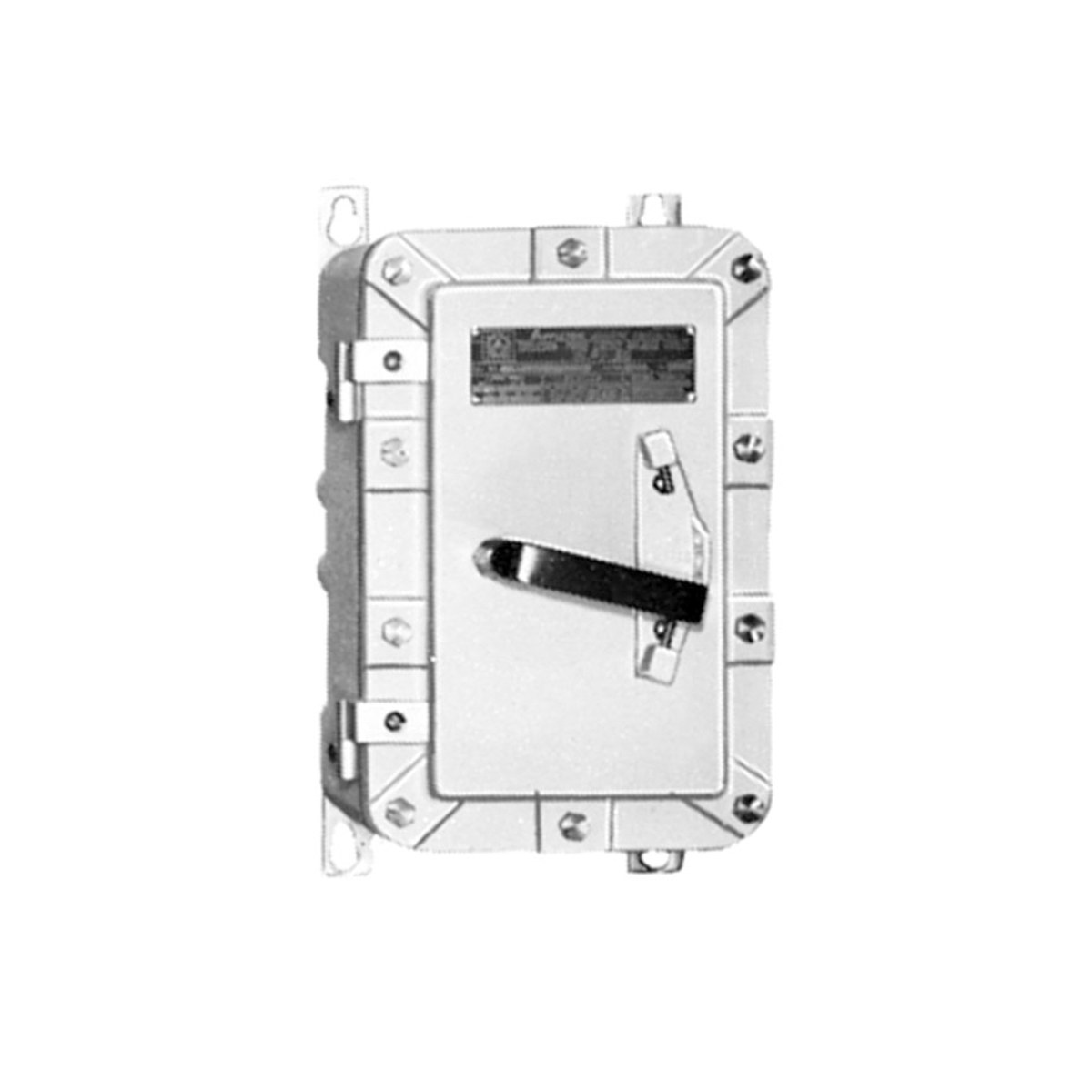

Appleton EB Series Circuit Breakers and Enclosures (NEC)

What is the Appleton EB Series Circuit Breakers and Enclosures (NEC)?

Appleton EB Series Circuit Breakers and Enclosures provide thermal time delay overload protection for service entrances and feeder or branch circuits used for lighting, heating, motors and equipment. The thermal magnetic breakers provide over current and short circuit protection and safe disconnect. Ideal for use in indoor or outdoor hazardous locations or in damp, wet or corrosive environments, the explosionproof, dust-ignitionproof enclosure surfaces are precision ground to explosionproof specifications. The breaker handle is positive operating and accommodates up to 3 locks. The breaker actuator is designed to self-locate on the breaker handle, preventing damage to the breaker toggle if the door is closed without aligning handle with breaker toggle position. The left side cover hinges are removable, allowing easier access to the interior for installation and maintenance, or it can be left in place during routine maintenance to help protect the explosionproof machined surface. With four removable mounting lugs with key holes, the EB Series can easily be installed as an individual mounting or on a rack.

What are the key features of the Appleton EB Series Circuit Breakers and Enclosures (NEC)?

• EB is UL Classified for use in Hazardous (Classified) Locations.
• 480 or 600 Vac, 250 Vdc. 15 to 150 Amp.

What are the specifications of the Appleton EB Series Circuit Breakers and Enclosures (NEC)?

Environment: Hazardous (Classified) Locations
Product type and listings: Circuit Breaker, External Operation, Explosionproof, Dust-ignitionproof
Voltage: 250 Vdc, 480 Vac, 600 Vac
Amperage: 15 to 150 Amp

Which Appleton catalog numbers belong to the EB Series Circuit Breakers and Enclosures (NEC)?

Appleton lists 61 catalog numbers in this series:

EB1EH2W15, EB1EH2W20, EB1EH2W25, EB1EH2W30, EB1EH2W30DV, EB1EH2W40, EB1EH2W50, EB1EH2W60, EB1EH3S30, EB1EH3S50, EB1EH3W15, EB1EH3W20, EB1EH3W20V, EB1EH3W25, EB1EH3W30DV, EB1EH3W40, EB1EH3W50, EB1EH3W60, EB1FB2W15, EB1FB2W20, EB1FB2W30, EB1FB2W40, EB1FB2W50, EB1FB2W60, EB1FB3W15, EB1FB3W20, EB1FB3W30, EB1FB3W40, EB1FB3W50, EB1FB3W60, EB2, EB2EH2W100, EB2EH2W70, EB2EH2W90, EB2EH3W100, EB2EH3W30, EB2EH3W70, EB2EH3W70DV, EB2EH3W90, EB2FB2W100, EB2FB2W125, EB2FB2W150, EB2FB2W70, EB2FB2W90, EB2FB3W100, EB2FB3W125, EB2FB3W150, EB2FB3W70, EB2FB3W90, EB3JB2W125, EB3JB2W175, EB3JB2W200, EB3JB2W225, EB3JB2W250, EB3JB3W125, EB3JB3W150, EB3JB3W200, EB3JB3W225, EB3JB3W250, GCGDX835, GCGDX850

How do I request a quote for the Appleton EB Series Circuit Breakers and Enclosures (NEC)?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
