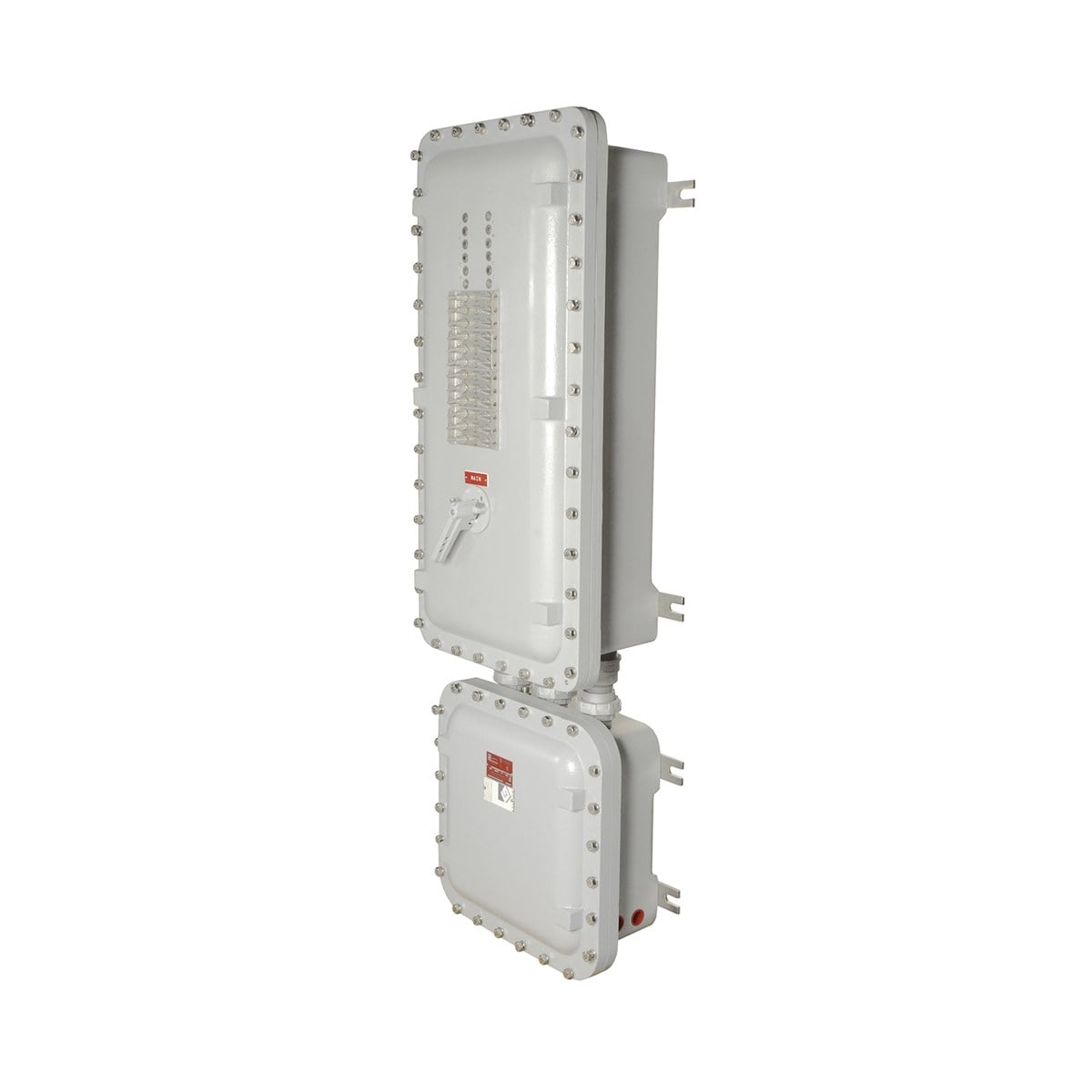

Appleton ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards

What are Appleton ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards?

Appleton ALPF Factory Sealed Lighting Panelboards and APPF Power Distribution Panelboards are used to provide protection and control of electrical equipment. Ideal for use in hazardous locations, the explosionproof, dust-ignitionproof, watertight panelboard provides a centrally controlled switching system for large quantities of branch circuits for lighting, heating, small motors, and other similar electrical equipment. The breaker operators can be locked in the ON or OFF position. There are standard outlets at the top and bottom for line and load wiring. They are designed with a precision machined flamepath between the box and cover. Breakers are housed in the panel section and prewired to maximum circuit capacity, then wired to numbered terminals in the wiring compartment. The terminal compartment is interconnected to panel section with sealing hubs, unions and poured with sealing compound.

What are the key features of the Appleton ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards?

• ALPFand APPF are UL Classified: for use in Hazardous (Classified) Locations.
• 120/240, 120/208, or 240 Vac, or 24, or 125/250 Vdc. 100 or 225 Amp.

What are the specifications of the Appleton ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards?

Environment: Hazardous (Classified) Locations
Product type and listings: External Operation, Explosionproof, Dust-ignitionproof, Watertight, Factory Sealed, Lighting Panelboards, Distribution Panelboards
Voltage: 24 Vdc, 120/240 Vac, 240 Vac, 125/250 Vdc, 120/208 Vac
Amperage: 100 Amp, 225 Amp

Which Appleton catalog numbers belong to the ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards?

Appleton lists 71 catalog numbers in this series:

AEPLG8RL, ALPFJ11A12ML, ALPFJ12C12ML, ALPFK11A18ML, ALPFK12C18ML, ALPFM11A12M1, ALPFM11A18M1, ALPFM11A24ML, ALPFM11A30ML, ALPFM12C12M1, ALPFM12C18M1, ALPFM12C24ML, ALPFM12C30ML, ALPFM21A18M2, ALPFM21A18ML, ALPFM21A24ML, ALPFM21A30ML, ALPFM22C18M2, ALPFM22C18ML, ALPFM22C24ML, ALPFM22C30ML, ALPFN11A24M1, ALPFN11A30M1, ALPFN12C24M1, ALPFN12C30M1, ALPFN21A24M2, ALPFN21A30M2, ALPFN21A36M2, ALPFN21A36ML, ALPFN21A42ML, ALPFN22C30M2, ALPFN22C36M2, ALPFN22C36ML, ALPFN22C42ML, ALPFQ21A42M2, ALPFQ22C42M2, APPFJ14C12ML, APPFK14C18ML, APPFM14C12M1, APPFM14C18M1, APPFM14C24ML, APPFM14C30ML, APPFM24C18M2, APPFM24C18ML, APPFM24C24ML, APPFM24C30ML, APPFN14C24M1, APPFN24C24M2, APPFN24C30M2, APPFN24C36M2, APPFN24C36ML, APPFN24C42ML, APPFP14C12M1, APPFP14C12ML, APPFP14C18ML, APPFP14C24ML, APPFP24C18ML, APPFQ24C42M2, APPFR14C18M1, APPFR14C24M1, APPFR14C30M1, APPFR14C30ML, APPFR24C18M2, APPFR24C24M2, APPFR24C24ML, APPFR24C30ML, APPFR24C36ML, APPFS24C30M2, APPFS24C36M2, APPFS24C42M2, APPFS24C42ML

How do I request a quote for the Appleton ALPF Factory Sealed Lighting and APPF Power Distribution Panelboards?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
