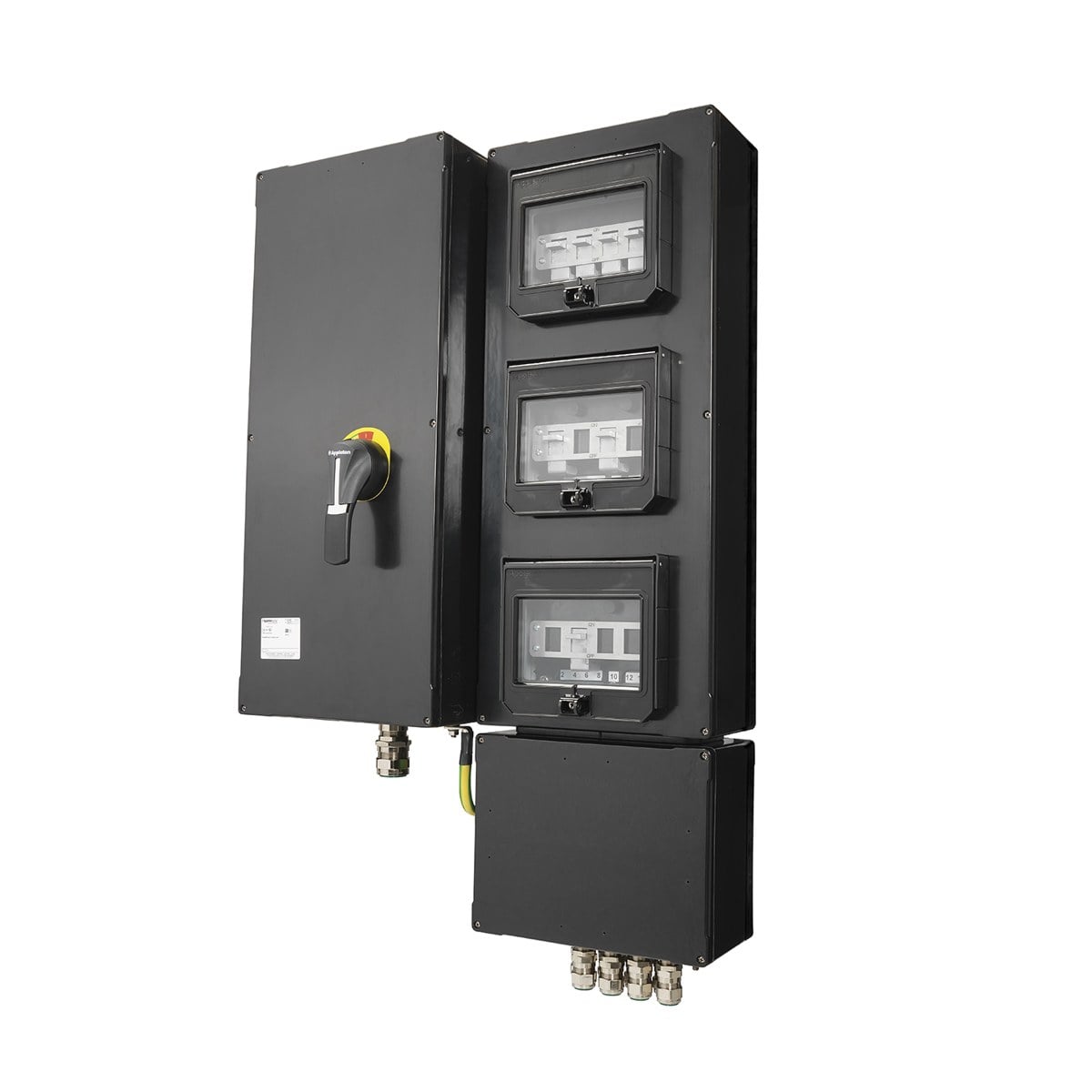

Appleton IEC PlexPower Series Factory Sealed Panelboards

What are Appleton IEC PlexPower Series Factory Sealed Panelboards?

Appleton IEC PlexPower Factory Sealed Panelboard provides indoor and outdoor protection and control of electrical circuits in wet, corrosive environments or where flammable gases or vapors are likely to be present. They are ideal for use on lighting, heat trace and power circuits. This PlexPower series features a ground-breaking design that uses individual breaker housings to minimize the downtime and costs associated with servicing circuit breakers in hazardous locations. Standard, off-the-shelf breakers are used. The lighter weight enclosures can be padlocked in either the ON or OFF position and be quickly opened in the field for easier servicing. They offer limitless flexibility through horizontal and vertical coupling options. 1 circuit to 72 circuit panelboard configurations are standard, with or without main breaker. Branch circuit breakers available in 1-, 2- 3- and 4-pole.

What are the key features of the Appleton IEC PlexPower Series Factory Sealed Panelboards?

• IEC PlexPower Panelboards are ATEX and IECEx Certified for use in Hazardous (Classified) Locations.
• Branch breakers available with 1-pole at 120, 240 Volts, 63 Amp maximum, and 2-, 3- or 4-pole at 240 or 415 Volts, 63 Amp maximum. Main circuit breaker is available with 2-, 3- or 4-pole at 40 to 250 Amp.

What are the specifications of the Appleton IEC PlexPower Series Factory Sealed Panelboards?

Environment: Hazardous (Classified) Locations
Product type and listings: External Operation, Factory Sealed, Distribution Panelboards
Voltage: 240 Vac, 120 Vac, 415 Vac
Amperage: 63 Amp, 40 to 250 Amp

How do I request a quote for the Appleton IEC PlexPower Series Factory Sealed Panelboards?

Request a quote with the Appleton catalog number or your specification and the quantity. We confirm price, availability and lead time with the quote.
