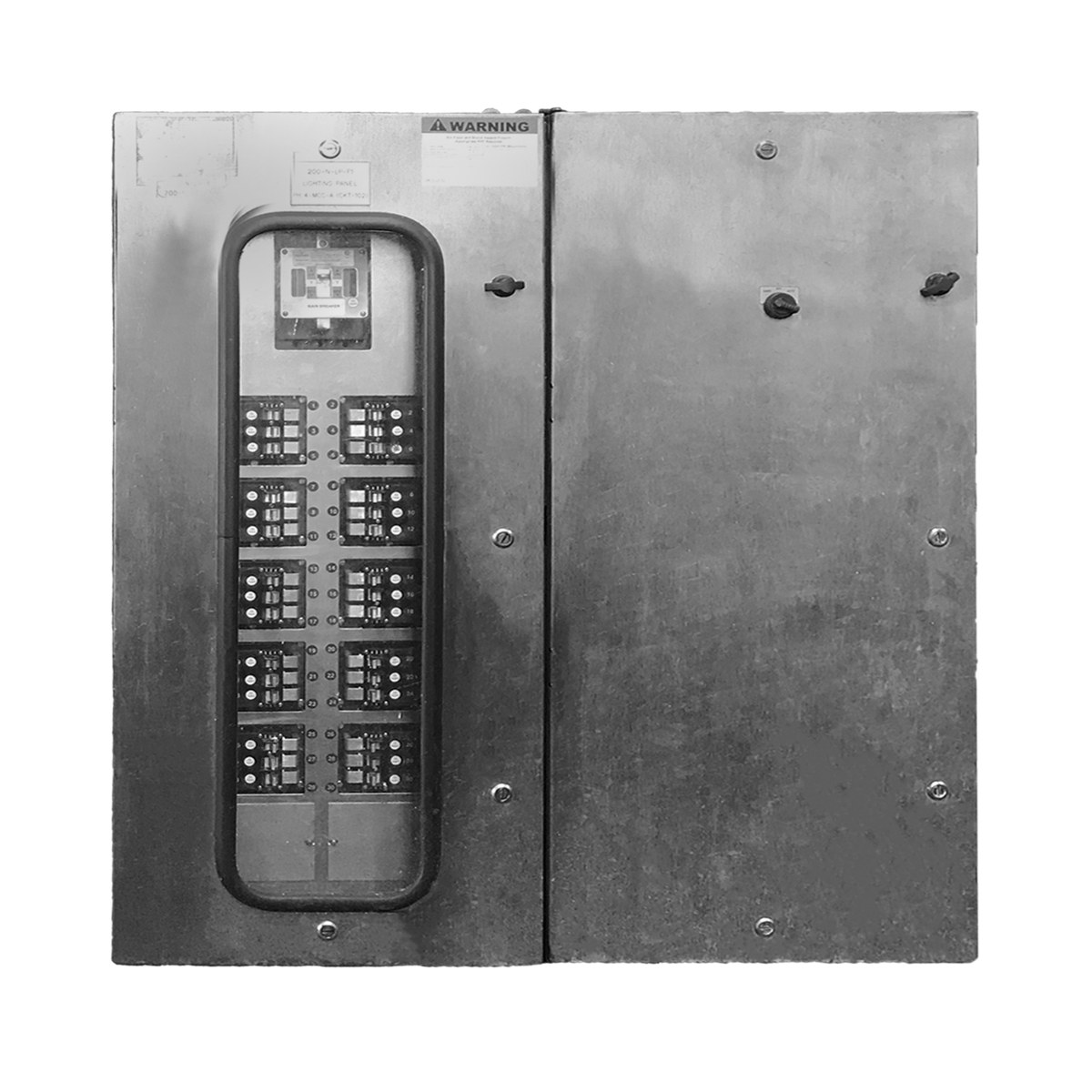

Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor

What is the Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor?

Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor provides indoor and outdoor protection and control of electrical circuits in wet, corrosive environments or where flammable gases or vapors are likely to be present. They are ideal for use on lighting, heat trace and power circuits. This PlexPower series features a ground-breaking design that uses a lighter weight, individual lighting contactor housing with quarter turn latches, can be quickly opened in the field for easier servicing, minimizing the downtime and costs associated with maintenance in hazardous locations. They are available as 120 to 240 Vac lighting panels with QC breakers or 480 to 600 Vac power panels with F-Frame breakers. The PlexPower lighting contactor modules accommodate non-proprietary off-the-shelf lighting contactors, making replacements readily available from multiple sources. Breakers can be easily replaced, upgraded or added in the field with no bolted cover to remove, no need for sealing or rewiring and no danger of compromising flamepath integrity.

What are the key features of the Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor?

• PlexPower Lighting Panelboards and Contactors are cCSAus Certified for use in Hazardous (Classified) Locations.
• 120/240, 240, 120/208, 277/480, 480, 347/600, or 600 Vac. 100 or 225 Amp.

What are the specifications of the Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor?

Environment: Hazardous (Classified) Locations
Product type and listings: External Operation, Factory Sealed, Lighting Panelboards, Distribution Panelboards
Voltage: 120/240 Vac, 240 Vac, 480 Vac, 600 Vac, 120/208 Vac, 277/480 Vac, 347/600 Vac
Amperage: 100 Amp, 225 Amp

How do I request a quote for the Appleton PlexPower Factory Sealed Lighting Panelboard and Contactor?

Request a quote with the Appleton catalog number or your specification and the quantity. We confirm price, availability and lead time with the quote.
