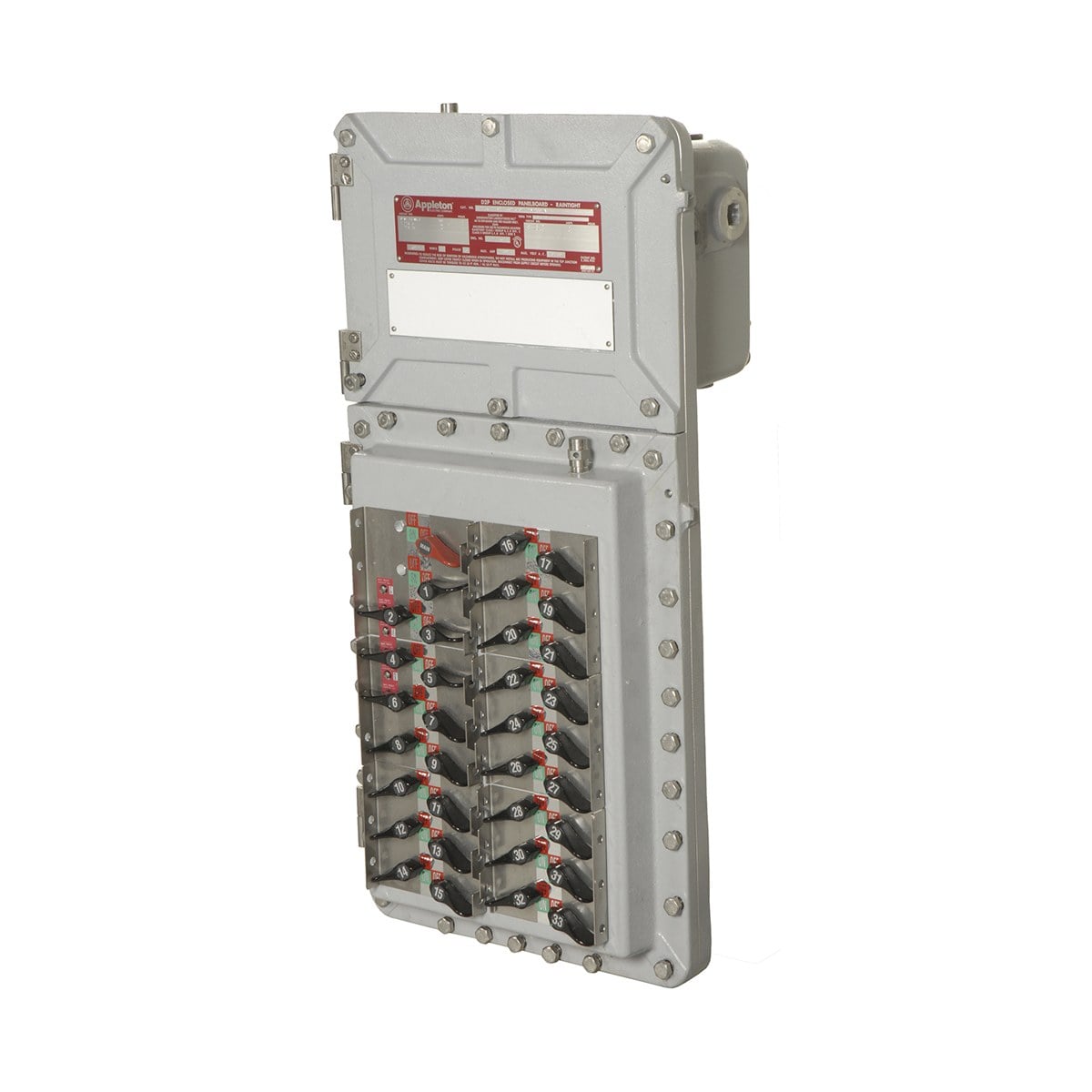

Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards

What are Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards?

Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards are used for protection and control of electrical equipment and circuits such as lighting and heat tracing. Ideal for use in hazardous locations or in damp, wet or corrosive environments, the explosionproof, dust-ignitionproof, watertight enclosure is designed with a precision machined flamepath between the box and the cover. Available in a choice of three sizes they feature a double door design, with provisions for drains/breathers in both compartments. One is the junction compartment, and one is the breaker compartment. Both doors are fully gasketed to provide raintight fit for both compartments. The breakers are prewired to the terminal block, minimizing installation time. Rotary actuating handles can be individually padlocked in either the OFF or ON position without tripping the breakers.

What are the key features of the Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards?

• D2P and EWP are UL Classified for use in Hazardous (Classified) Locations.
• 120/208 or 120/240 Vac. 6 to 36 Amp.

What are the specifications of the Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards?

Environment: Hazardous (Classified) Locations
Product type and listings: Circuit Breaker, External Operation, Explosionproof, Dust-ignitionproof, Watertight, Factory Sealed
Voltage: 120/240 Vac, 120/208 Vac
Amperage: 6 to 36 Amp

Which Appleton catalog numbers belong to the D2P and EWP Factory Sealed Circuit Breaker Panelboards?

Appleton lists 19 catalog numbers in this series:

D2P4A12, D2P4A12QRP, D2P4A6, D2P4A8, D2P4B12, D2P4B14, D2P4B24QRP, D2P4C24, D2P4C26, D2P4C36, D2P4C36QRP, D2P5A12, D2P5A12QRP, D2P5B22, D2P5B24, D2P5B24QRP, D2P5C30, D2P5C36, D2P5C36QRP

How do I request a quote for the Appleton D2P and EWP Factory Sealed Circuit Breaker Panelboards?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
