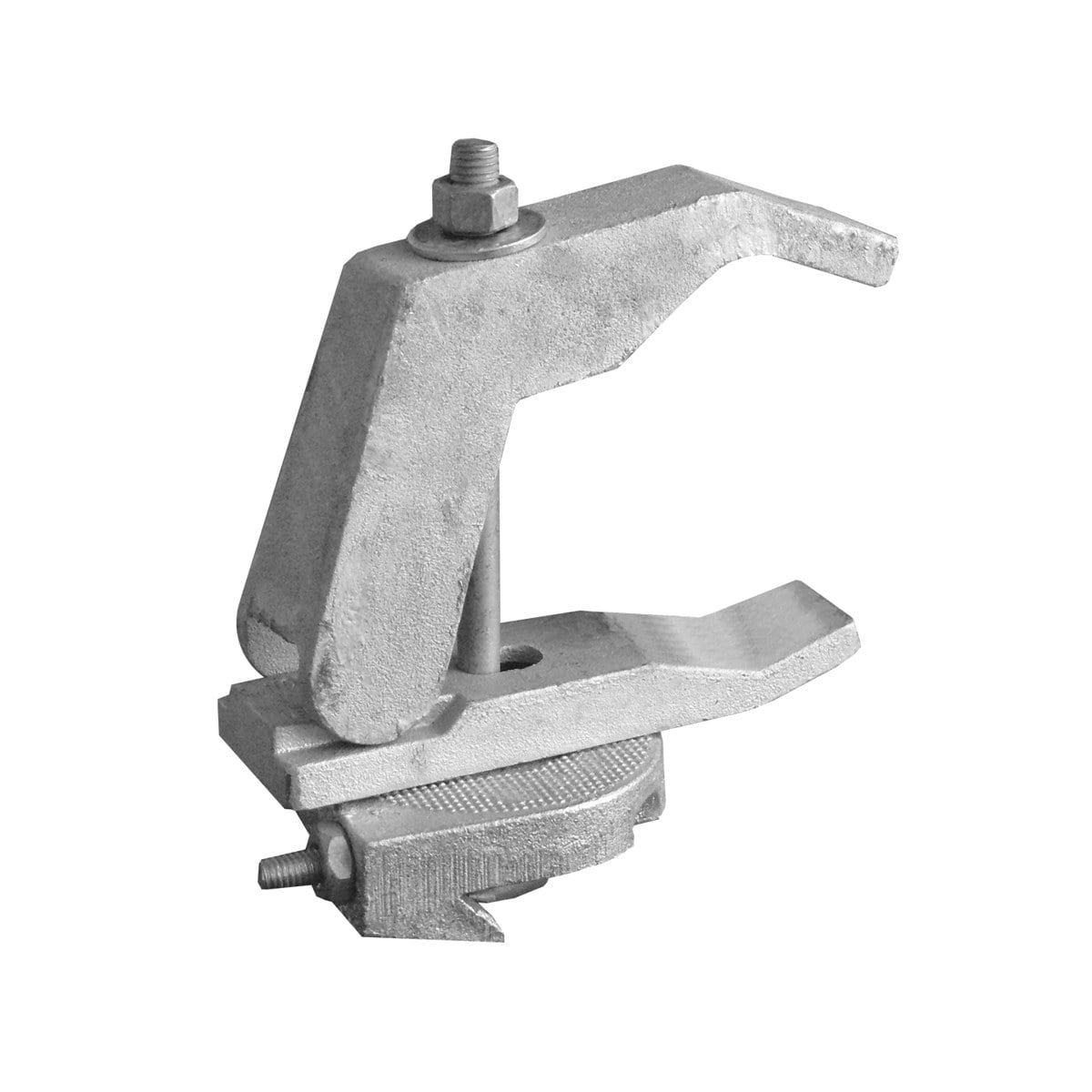

Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps

What are Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps?

Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps are used for supporting conduit to the cable tray flange at each location where tray cable exits the tray and is run through the conduit raceway to control panelboards, motor starters, or other electrical devices. They are designed to mount on all types of tray configurations (inside, outside, or double flange) and provide greater cable capacity and working area within the tray by reducing internal clamp obstruction. These clamps feature an exclusive design which provides full 360° swivel, allowing exit conduit positioning at any angle, eliminating the need for separate inside or outside flange clamps, and field modification. Type TCCD features double conduit clamp to conserve space where multiple cables exit the tray at one location.

What are the key features of the Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps?

• Clamps are UL Listed for use in Ordinary (Unclassified) Locations.
• For use with rigid conduit.

What are the specifications of the Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps?

Environment: Ordinary (Unclassified) Locations
Product type and listings: Cable Clamp
Materials: Iron
Used with: IMC, EMT, Rigid Metal Conduit

Which Appleton catalog numbers belong to the TCC Single and TCCD Double Conduit Cable Tray Clamps?

Appleton lists 7 catalog numbers in this series:

CTC0507, CTC1012, CTC150, CTC200, CTC300, CTC350, CTC400

How do I request a quote for the Appleton TCC Single and TCCD Double Conduit Cable Tray Clamps?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
