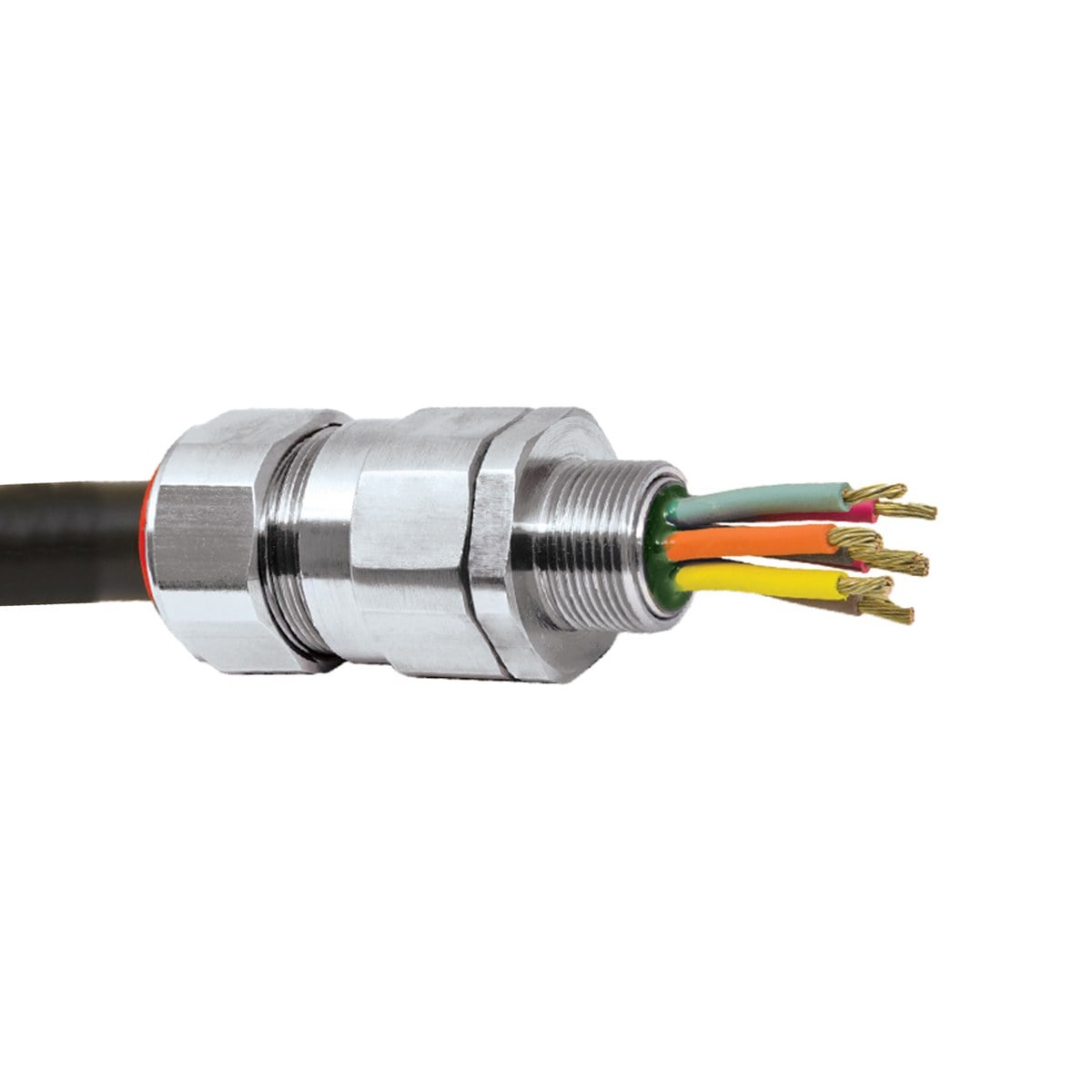

Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands

What are Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands?

Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands are for use with all types of armored cables (braid, tape, wire and lead sheath version) to terminate an Ex d (flameproof IIB or IIC), Ex e (increased safety), Ex nR (restricted breathing), Ex d (flameproof), hazardous area (gas and dust), onshore, or open-sea pipeline certified enclosure. PX2K-REX provides an environmental seal on the cable jacket and an explosionproof liquid resin barrier seal around the cable inner cores. It utilizes RapidEx high speed liquid resin sealing compound that vastly reduces installation time and associated costs. This solution is particularly effective on multicore cables where traditional compound is difficult and time consuming to apply.

What are the key features of the Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands?

• PX2K-REX is cCSAus, ATEX, IECEx, UKEX, INMETRO, and EAC Certified for use in Hazardous (Classified) Locations. Other certifications are available.
• For use with all types of armored cables (braid, tape, wire and lead sheath version).

What are the specifications of the Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands?

Environment: Hazardous (Classified) Locations
Product type and listings: Cable Gland
Materials: Stainless Steel, Copperfree Aluminum, Nickel Plated Brass
Used with: Armored Cable, Tape Cable, Lead Sheathed Cable, Braided Armor Cable, Wire Cable

Which Appleton catalog numbers belong to the PX2K-REX Series Liquid Resin Barrier Type Cable Glands?

Appleton lists 27 catalog numbers in this series:

2016PX2KREX5, 20PX2KREX0505, 20PX2KREX5, 20SPX2KREX5, 20SPX2KRX0505, 25PX2KREX0755, 25PX2KREX5, 25SPX2KREX5, 25SPX2KRX0755, 32PX2KREX1005, 32PX2KREX5, 40PX2KREX1255, 40PX2KREX5, 50PX2KREX2005, 50PX2KREX5, 50SPX2KREX5, 50SPX2KRX1505, 63PX2KREX2505, 63PX2KREX5, 63SPX2KREX5, 63SPX2KRX2005, 75PX2KREX3005, 75PX2KREX5, 75SPX2KREX5, 75SPX2KRX2505, 90PX2KREX3505, 90PX2KREX5

How do I request a quote for the Appleton PX2K-REX Series Liquid Resin Barrier Type Cable Glands?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
