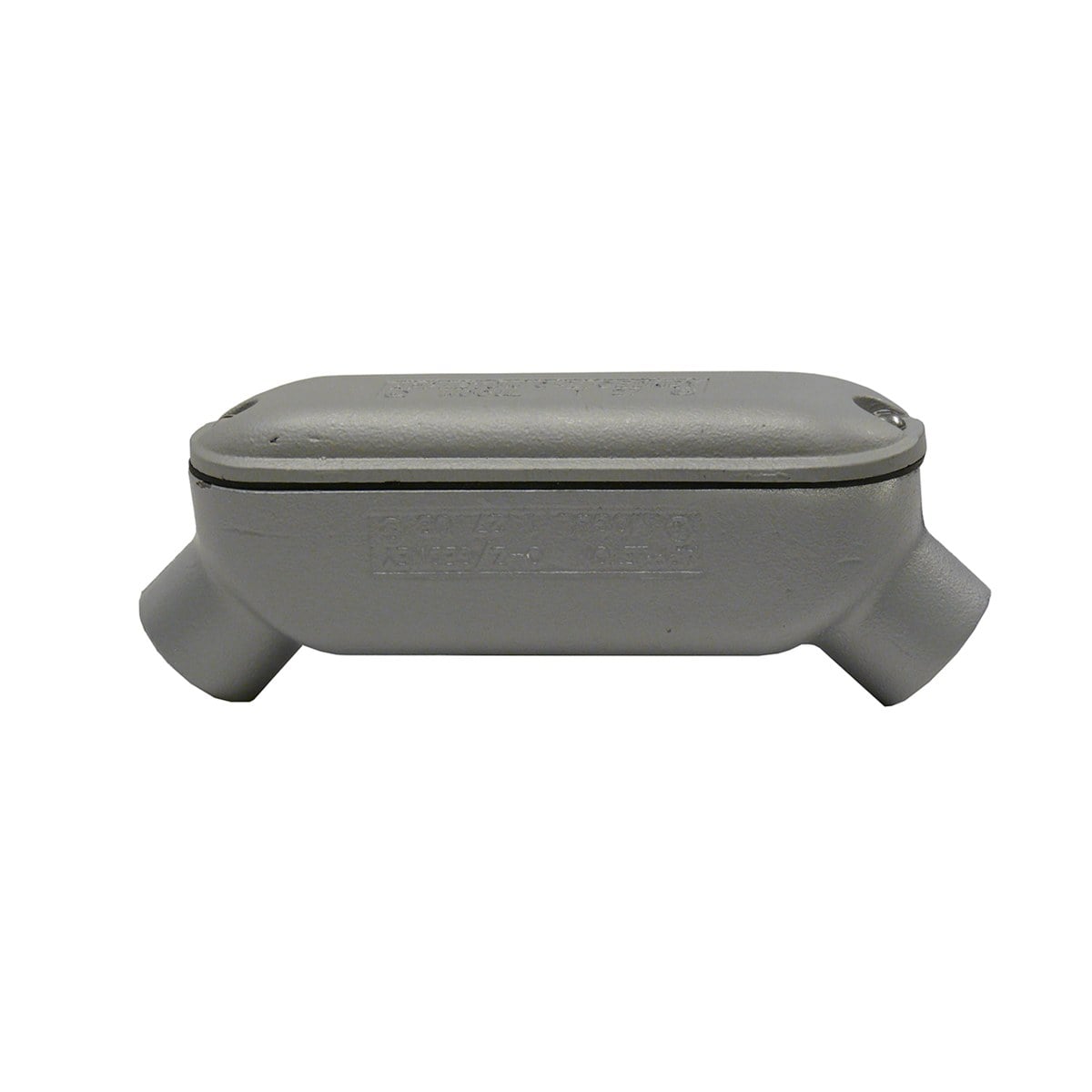

Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets

What are Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets?

Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets are used to connect and change direction of conduit runs. The larger body size facilitates pulling of large and heavy conductors, and the specially designed raised cast cover, with captive screws, permits easy access to conductors for splicing and maintenance. They have accurately tapped, tapered threads for tight, rigid joints and ground continuity. A smooth, rounded integral bushing in each hub protects conductor insulation. Type C, LB, and UB 1-1/4 inch and up have exclusive built-in rollers to facilitate cable pulling. Most models exceed the six times trade length requirement for conduit body to the largest raceway per NEC 314.28(A)(2).

What are the key features of the Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets?

• Moguls are UL Listed and CSA Certified for use in Ordinary (Unclassified) Locations. They are suitable for use in Hazardous (Classified) Locations.
• For use with threaded rigid metal conduit and IMC.

What are the specifications of the Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Conduit Body, Conduit Body Cover, Conduit Body Cover Gasket
Materials: Iron, Copperfree Aluminum
Used with: IMC, Threadedless Rigid Metal Conduit

Which Appleton catalog numbers belong to the NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets?

Appleton lists 127 catalog numbers in this series:

BC100A, BC100M, BC125A, BC125M, BC150A, BC150M, BC200A, BC200M, BC250A, BC250M, BC300A, BC300M, BC350A, BC350M, BC400A, BC400M, BG100, BG150, BGC125, BGC200, BGC250, BGC300, BGC350, BGC400, BGL125, BGL200, BGL250, BGL300, BGL350, BGL400, BKG100A, BKG100M, BKG150A, BKG150M, BKGC125A, BKGC125M, BKGC200A, BKGC200M, BKGC250A, BKGC250M, BKGC300A, BKGC300M, BKGC350A, BKGC350M, BKGC400A, BKGC400M, BKGL125A, BKGL125M, BKGL200A, BKGL200M, BKGL250A, BKGL250M, BKGL300A, BKGL300M, BKGL350A, BKGL350M, BKGL400A, BKGL400M, BKGU300A, BKGU300M, BKGU400A, BKGU400M, BLB100A, BLB100M, BLB125A, BLB125M, BLB150A, BLB150M, BLB200A, BLB200M, BLB250A, BLB250M, BLB300A, BLB300M, BLB350A, BLB350M, BLB400A, BLB400M, BLL100A, BLL100M, BLL125A, BLL125M, BLL150A, BLL150M, BLL200A, BLL200M, BLR100A, BLR100M, BLR125A, BLR125M, BLR150A, BLR150M, BLR200A, BLR200M, BT100A, BT100M, BT125A, BT125M, BT150A, BT150M, BT200A, BT200M, BT250A, BT250M, BT300A, BT300M, BT350A, BT350M, BT400A, BT400M, BUB100A, BUB100M, BUB125A, BUB125M, BUB150A, BUB150M, BUB200A, BUB200M, BUB250A, BUB250M, BUB300A, BUB300M, BUB350A, BUB350M, BUB400A, BUB400M, CBB2300

How do I request a quote for the Appleton NEC 6x8x Mogul Conduit Outlet Bodies, Covers, and Gaskets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
