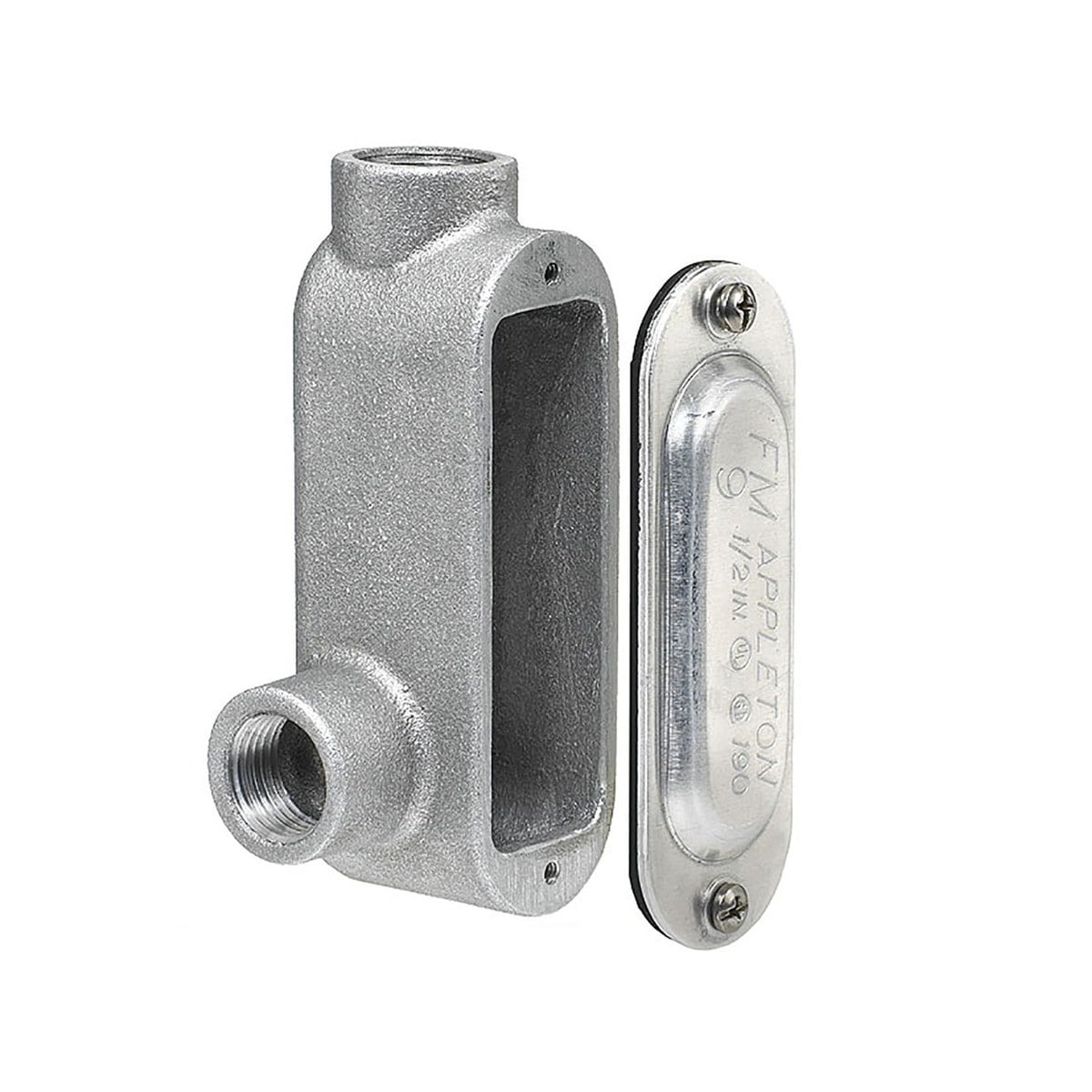

Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets

What are Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets?

Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies have roomy interiors making them ideal for use as pulling fittings and permit easy access to conductors for splicing and maintenance. They have accurately tapped, tapered threads for tight, rigid joints and ground continuity. A smooth, rounded integral bushing in each hub protects conductor insulation. Stainless steel pan-head cover screws secure the cover to the body and provide superior screwdriver seating and torque. Cover screws are captive to prevent loss in 1/2-to-2-inch sizes. FM9 covers with integral gasket are suitable for use in wet locations.

What are the key features of the Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets?

• FM9 is UL Listed and CSA Certified for use in Ordinary (Unclassified) Locations. They are suitable for use in Hazardous (Classified) Locations.
• For use with rigid steel, rigid aluminum, and IMC conduit.
• Appleton FM9 conduit bodies and covers with gaskets are completely interchangeable with equivalent Crouse-Hinds Form 9 conduit bodies and covers. Applications and installation dimensions are also comparable.

What are the specifications of the Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Conduit Body, Conduit Body Cover, Conduit Body Cover Gasket
Materials: Copperfree Aluminum
Used with: IMC, Rigid Aluminum Conduit, Rigid Steel Conduit

Which Appleton catalog numbers belong to the FM9 Conduit Outlet Bodies, Covers, and Gaskets?

Appleton lists 68 catalog numbers in this series:

190IG, 290IG, 390IG, 490IG, 590IG, 690IG, 889IG, 989IG, APP190, APP290, APP390, APP490, APP590, APP690, APP889, APP989, APPC1089, APPC19, APPC29, APPC39, APPC49, APPC59, APPC69, APPC789, APPC889, APPLB1089, APPLB19, APPLB29, APPLB39, APPLB49, APPLB59, APPLB69, APPLB789, APPLB889, APPLL1089, APPLL19, APPLL29, APPLL39, APPLL49, APPLL59, APPLL69, APPLL889, APPLR19, APPLR29, APPLR39, APPLR49, APPLR59, APPLR69, APPLR789, APPLR889, APPT1089, APPT19, APPT29, APPT39, APPT49, APPT59, APPT69, APPT789, APPT889, APPTB19, APPTB29, APPTB39, APPTB49, APPTB59, APPTB69, APPX19, APPX29, APPX39

How do I request a quote for the Appleton FM9 Conduit Outlet Bodies, Covers, and Gaskets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
