Oldham Simtronics OLCT 60 Fixed Gas Detector
Bulk Orders
The generation of high quality gas detectors designed for the detection of flammable, toxic gases or oxygen.
The OLCT 60 Series is available in several versions:
- Explosion-proof XP or intrinsically safe IS sensor (combustible, toxic or oxygen versions).
- Remote or on-board sensor. The OLCT 60 can be remotely mounted, allowing detection in inaccessible locations or in Zone 0 or 20 in the case of the intrinsically safe (IS) version.
The OLCT 60 is equipped with a local display and non-intrusive access to a safe menu. In hazardous areas, calibration can be done without the need of a hot work permit.
The detector units are made of 316L stainless steel, and are rugged and resistant to corrosion.
Certified IP66, the OLCT 60 is sealed against dust and splash water. The versatile instrument is the ideal solution for gas detection covering all industrial needs for a wide variety of applications.
Features
- Pre-calibrated sensors
- Non-intrusive calibration
- Infrared Version
Infrared sensor available
An infrared sensor is already available for CO2, SF6 and refrigerant gases detection.
Sensors technical specifications:
XP Transmitter with XP sensor:
| Sensor | Catalytic / Electrochemical / Semi conductor / Infrared |
| Detected gases | Explosive or toxic gases, O2, VOC and refrigerant |
| Material | Epoxy coated aluminium + 316 stainless steel sensor |
| Pre-calibrated block | Yes |
| Power supply | 16 to 30 V DC |
| Average consumption |
|
| Output signal | 0 – 23 mA (4-20 mA reserved for measurement) |
| Cable | 3 active wires, shielded cable |
| Max. cable loop resistance / length |
|
| Ingress protection | IP 66 |
| Approvals | OLCT60D (with integrated cell): ATEX II 2 GD Ex db IIC T6 Gb – Ex tb IIIC T85°C Db Ambient temperature: -20°C to 60°C OLCT60D d (with remote cell): ATEX II 2 GD Ex db IIC T6 Gb – Ex tb IIIC T85°C Db Ambient temperature: -20°C to 70°C (for the detector) ATEX II 2 GD – Ex db IIC T6 Gb – Ex tb IIIC T85°C Db Ambient temperature: -20°C to 70°C (for the remote cell) Electromagnetic compatibility according to EN50270 |
| Weight | 2.1 kg |
| Dimensions | 154 x 186 x 121 mm / 6.06 x 7.32 x 4.76 inches |
| Operating temperature | -20°C to +60°C |
XP transmitter with IS sensor:
| Sensor | Electrochemical |
| Detected gases | Toxic gases or O2 |
| Material | Epoxy coated aluminium + 316 stainless steel sensor |
| Pre-calibrated block | Yes |
| Power supply | 16 to 30 V DC |
| Average consumption | 80 mA |
| Output signal | 0 – 23 mA (4-20 mA reserved for measurement) |
| Cable | 3 active wires, shielded cable |
| Max. cable loop resistance / length with OLDHAM controller |
48 Ω / 1.5 km at 1.5 mm2 (16 AWG) |
| Ingress protection | IP 66 |
| Approvals | OLCT60id (with integrated cell): ATEX II 2 GD – Ex db [ia Ga] ia IIC T4 Gb – Ex tb [ia Da] ia IIIC T135°C Db Ambient temperature: -20°C to 60°C OLCT60D id: (with remote cell) ATEX II 2 (1) GD – Ex db [ia Ga] IIC T4 Gb – Ex tb [ia Da] IIIC T135°C Db Ambient temperature: -20°C to 60°C (for the detector) ATEX II 1 GD – Ex ia IIC T4 Ga – Ex ia IIIC T135°C Da Ambient temperature: -20°C to 70°C (for the remote cell) Electromagnetic compatibility according to EN 50270 |
| Weight | 2.1 kg |
| Dimensions | 154 x 186 x 121 mm / 6.06 x 7.32 x 4.76 inches |
| Operating temperature | -20°C to +60°C |

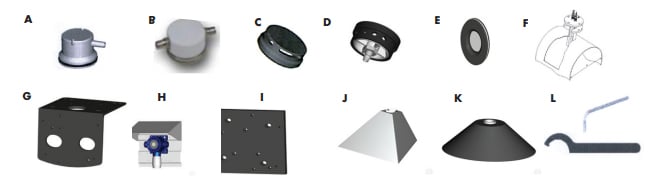

Accessories:
A Calibration cup (6331141) allows introduction of calibration gas on the sensor
B Bypass adapter (6327910) allows measurement of samples
C Splash guard system (6329004) protects the detector from liquid projections
D Remote gas introduction head (6327911) allows introduction of gas without opening the detector
E Removable protective filter (6335975) protects the sensor against projections and dust
F Duct measurement kit (6793322) allows gas monitoring in a duct
G Mounting bracket (6322420) allows the mounting of the detector to the ceiling
H Protective cover (6123716) protects the detector against bad weather conditions or against direct sun radiations
I Adapter plate (6793718) allows the replacement of another OLDHAM detector without re-drilling
J Wall mounted collecting cone (6331169) for use with lighter-than-air gases
K Ceiling mount collecting cone (6331168) for use with lighter-than-air gases
L Tool kit (6147877)
