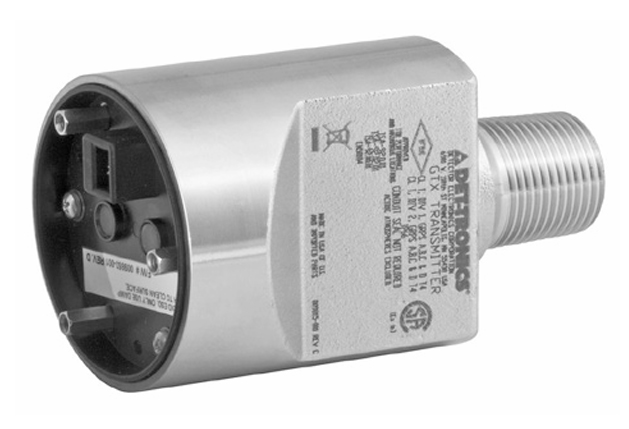

Det-Tronics GTX Toxic Gas Transmitter (GT3000 Series)
SKU: GTX
Manufacturer:
Det-Tronics
Bulk Orders
Competitive Pricing
Short Lead Times
Consolidated Shipping
Prompt Response
Request a Quote
GTX Toxic Gas Transmitter (Spec Sheet: 90-1199). Stainless steel, toxic gas transmitter that provides an accurate measurement of toxic gasses.
- 316 Stainless Steel
- Approved as a stand-alone device when combined with a GTS toxic gas sensor
- 4-20 mA output with HART
- Intrinsically safe (IS) or Explosion-proof design
- IP66 rated
- SIL 2 capable sensors are Hydrogen Sulfide and Oxygen
- Performance approved and verified
- Self-contained transmitter circuitry
- Event and calibration logs are stored in non-volatile memory and are accessible using a UD10/UD20, HART device, AMS software, or Gas Inspector.
- FDT/DTM capable
- Real-time clock with battery back-up
- Magnetic switch and LEDs for user interface
- 2-wire loop powered
GTX Model Matrix
MODEL | DESCRIPTION |
GTX | Toxic Gas Transmitter |
TYPE | MATERIAL |
S | Stainless Steel (316) |
TYPE | THREAD TYPE |
N | 3/4″ NPT |
M | Metric M25 |
TYPE | OUTPUTS |
26 | 4-20 mA w/HART (3.5 mA fault) |
29 | 4-20 mA w/HART (2.45 mA fault) |
TYPE | APPROVALS |
B | INMETRO (Brazil) |
K | KAZAKH |
N | FM/CSA/IEXEx |
R | RUSSIA |
Y | CHINA |
TYPE | CLASSIFICATION (Division/Zone) |
4 | Intrinsically Safe |
5 | Explosion-proof |

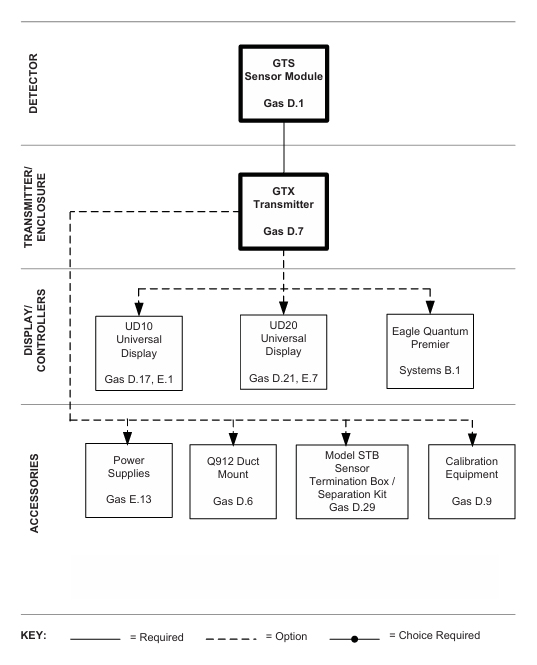

GTX Toxic Gas Transmitter (for use with FlexVu models UD10/20, and GDTB)
Model Number | Part Number | Threads | IS | Ex Proof | Approvals |
GTXSN26N4 | 009480-321 | 3/4 NPT | X | FM/CSA/IECEx | |
GTXSM26N4 | 009480-322 | M25 | X | FM/CSA/IECEx | |
GTXSN26N5 | 009480-323 | 3/4 NPT | X | FM/CSA/IECEx | |
GTXSM26N5 | 009480-324 | M25 | X | FM/CSA/IECEx | |
GTXSN26B5 | 009480-305 | 3/4 NPT | X | INMETRO | |
GTXSM26B5 | 009480-306 | M25 | X | INMETRO | |
GTXSM26SK5 | 009480-866 | M25 | X | KAZAKH | |
GTXSN26R4 | 009480-905 | 3/4 NPT | X | RUSSIA | |
GTXSM26R4 | 009480-906 | M25 | X | RUSSIA | |
GTXSN26R5 | 009480-907 | 3/4 NPT | X | RUSSIA | |
GTXSM26R5 | 009480-908 | M25 | X | RUSSIA | |
GTXSN26Y4 | 009480-805 | 3/4 NPT | X | CHINA | |
GTXSM26Y4 | 009480-806 | M25 | X | CHINA | |
Ship Weight: <1lb (<0.45kg) |
NOTE: Refer to the GT3000 Instruction Manual 95-8616 for details on performance approvals.
GTX Toxic Gas Transmitter (for use with U9500)
Model Number | Part Number | Threads | IS | Ex Proof | Approvals |
GTXSN29N4 | 009480-325 | 3/4 NPT | X | FM/CSA/IECEx | |
GTXSM29N4 | 009480-326 | M25 | X | FM/CSA/IECEx | |
GTXSN29N5 | 009480-327 | 3/4 NPT | X | FM/CSA/IECEx | |
GTXSM29N5 | 009480-328 | M25 | X | FM/CSA/IECEx | |
GTXSN29B5 | 009480-307 | 3/4 NPT | X | INMETRO | |
GTXSM29B5 | 009480-308 | M25 | X | INMETRO | |
Ship Weight: <1lb (<0.45kg) |
NOTE: Refer to the GT3000 Instruction Manual 95-8616 for details on performance approvals.
