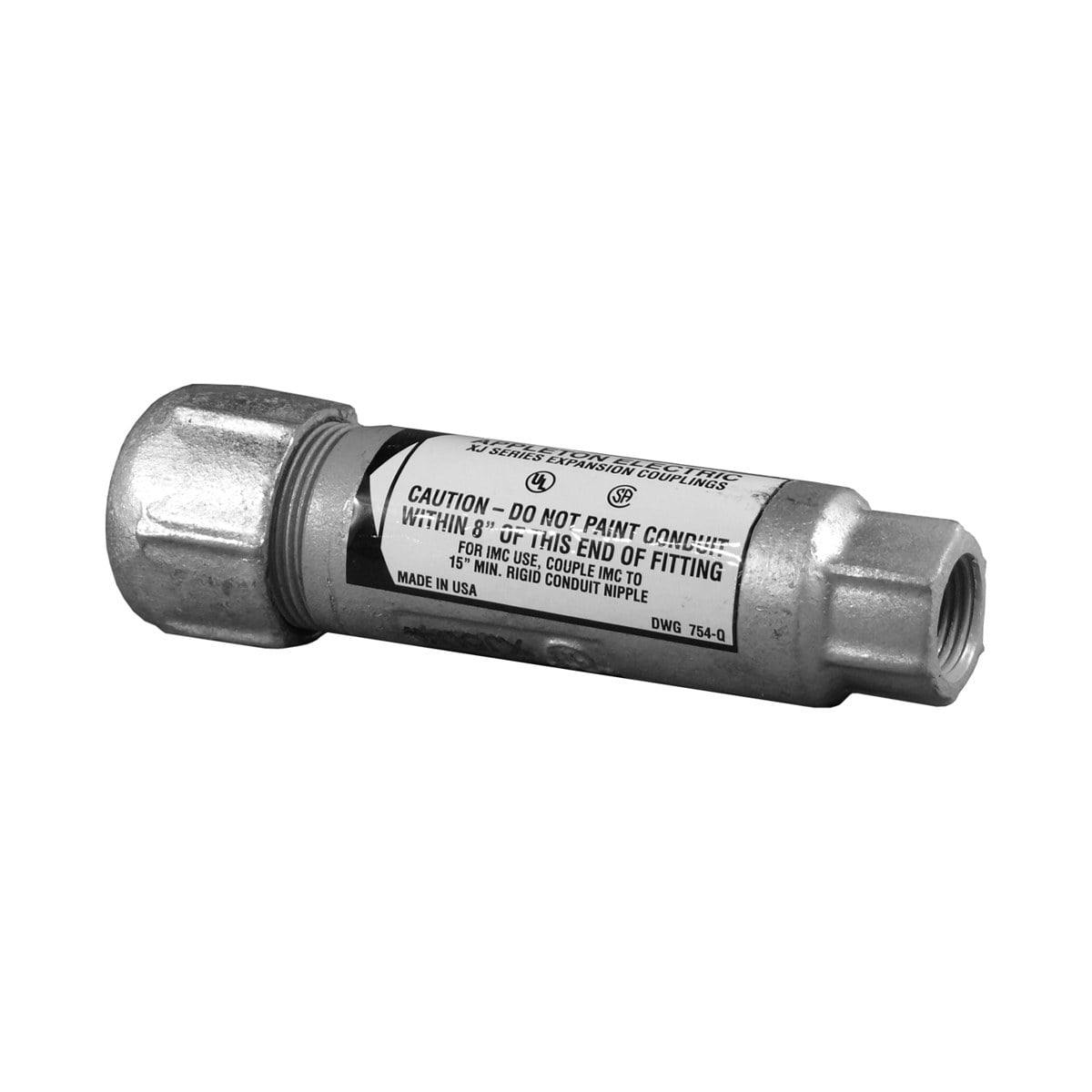

Appleton XJ Expansion Fittings

What are Appleton XJ Expansion Fittings?

Appleton XJ Expansion Fittings provide for movement that takes place on long runs of conduit installed in buildings of great length and between divisions of buildings which are sectioned apart by structural expansion joints. These couplings have the equivalent of weather-tight joints and may be used with heavy-wall conduit. A metallic packing ring ensures the entire conduit system remains a continuous electrical conductor. Copper bonding jumpers are available to provide an additional effective metallic bond to each conduit run.

What are the key features of the Appleton XJ Expansion Fittings?

• XJ is UL Listed for use in Ordinary (Unclassified) Locations. They are suitable for use in Hazardous (Classified) Locations.
• For use with rigid metal conduit.

What are the specifications of the Appleton XJ Expansion Fittings?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Expansion Fitting
Materials: Iron
Used with: Rigid Steel Conduit

Which Appleton catalog numbers belong to the XJ Expansion Fittings?

Appleton lists 23 catalog numbers in this series:

XJ1004, XJ1008, XJ1254, XJ1258, XJ1504, XJ1508, XJ2004, XJ2008, XJ2504, XJ2508, XJ3004, XJ3008, XJ3504, XJ3508, XJ4004, XJ4008, XJ5004, XJ5008, XJ504, XJ508, XJ6008, XJ754, XJ758

How do I request a quote for the Appleton XJ Expansion Fittings?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
