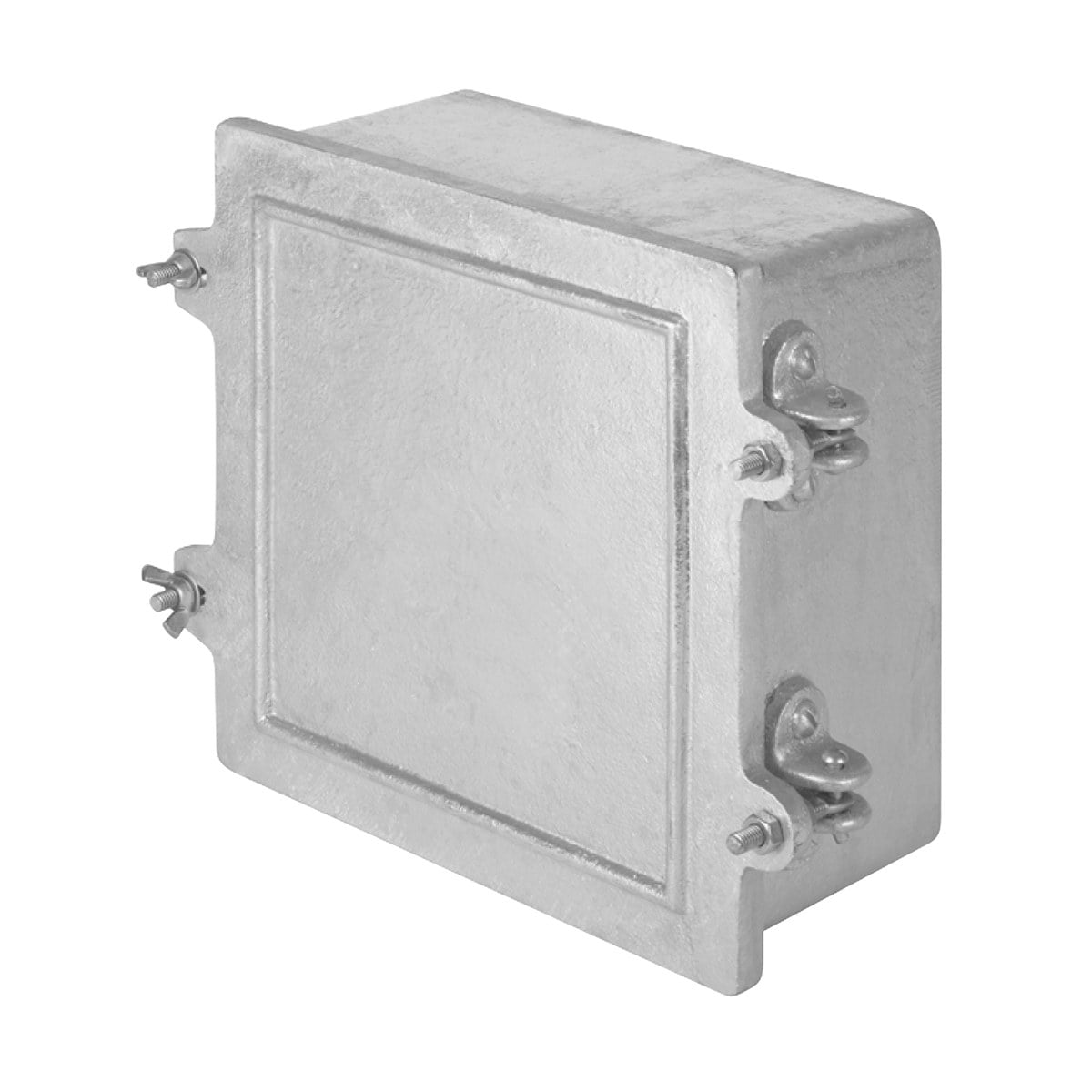

Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes

What are Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes?

Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes are designed for surface mounting and feature an overlapping hinged cover allowing easy access to the equipment within the box for inspection or maintenance. They serve as intermediate pulling and splicing points in a conduit system. They are ideal for use to protect personnel against accidental contact with enclosed electrical devices or connections and to protect the enclosed devices or connections against external conditions. These raintight, watertight, dust-tight, cast iron, Type 4 boxes are ideal for use in indoor or outdoor environments and are suitable for installations subjected to rain, dripping or splashing water or hose-directed water. The WYW and YW boxes are available in two sizes with custom drilling, tapping, and mounting lug options.

What are the key features of the Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes?

• WYW and YW are UL Listed and CSA Certified for use in for Ordinary (Unclassified) Locations and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with cover gasket.

What are the specifications of the Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: NEC Explosionproof, CEC Explosionproof, Junction Box
Enclosure material: Iron
Cover material: Iron

Which Appleton catalog numbers belong to the WYW and O-Z/Gedney YW Type Hinged Cover Boxes?

Appleton lists 4 catalog numbers in this series:

WYW080806, WYW121208, YW080806, YW121208

How do I request a quote for the Appleton WYW and O-Z/Gedney YW Type Hinged Cover Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
