Appleton BJE Series Octagonal Polycarbonate Junction Boxes

What are Appleton BJE Series Octagonal Polycarbonate Junction Boxes?

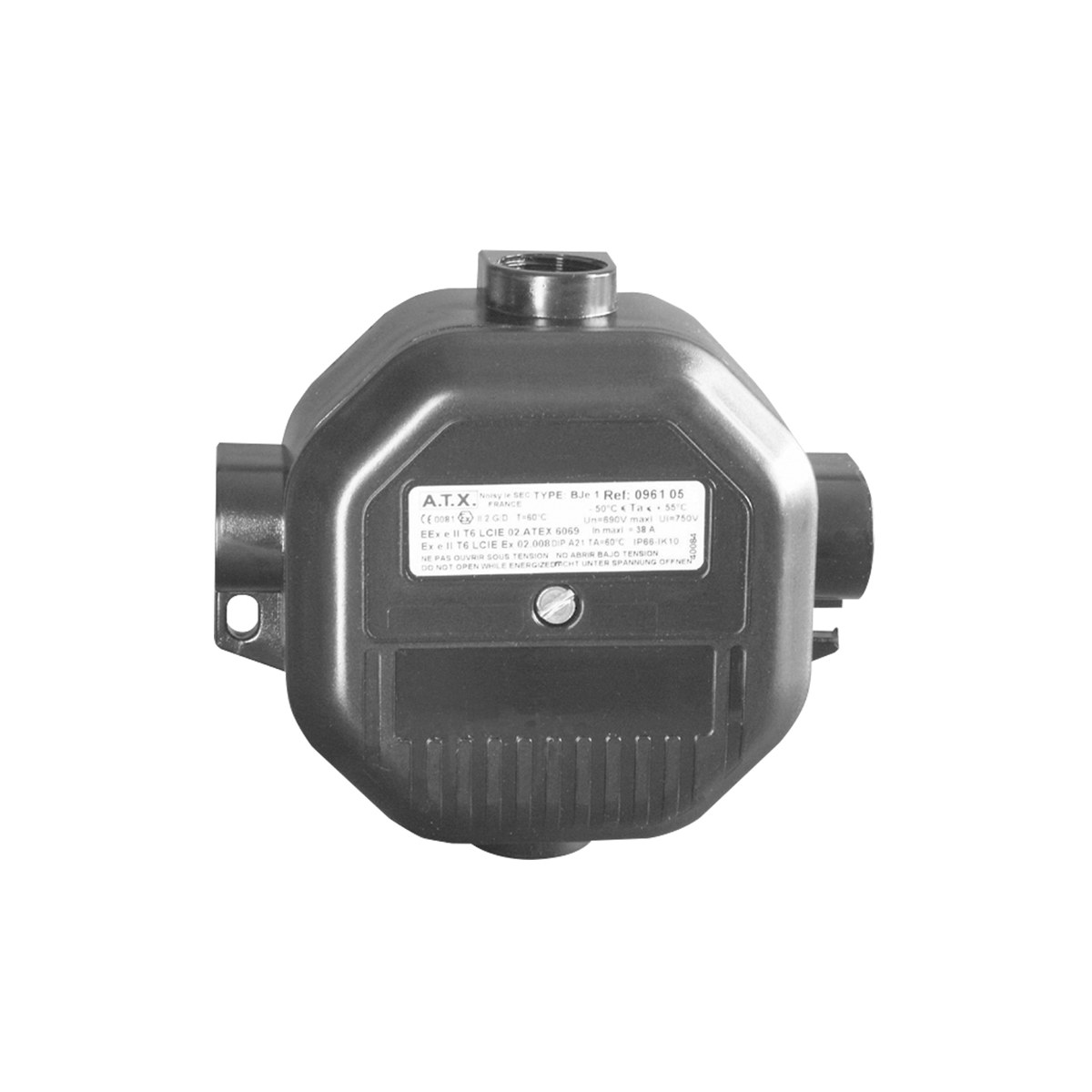

Appleton BJE Series Octagonal Polycarbonate Junction Boxes are designed to facilitate electrical connections in hazardous areas. They are ideal for use in wet, corrosive environments or where flammable gases or vapors are present either continuously or intermittently. The small, high impact resistant box is available in standard sizes, with either external or internal hubs, and a poured in place polyurethane door gasket. The BJE is available for non-armored or armored cable. The armored cable version supplied is with a ground continuity plate.

What are the key features of the Appleton BJE Series Octagonal Polycarbonate Junction Boxes?

• BJE is cCSAus Certified for use in Hazardous (Classified) Locations.
• For use with non-armored or armored cable. Armored cable version supplied with ground continuity plate.

What are the specifications of the Appleton BJE Series Octagonal Polycarbonate Junction Boxes?

Environment: Hazardous (Classified) Locations
Product type and listings: Conduit Outlet Box and Cover, NEC Explosionproof, CEC Explosionproof
Enclosure material: Nonmetallic
Cover material: Nonmetallic

Which Appleton catalog numbers belong to the BJE Series Octagonal Polycarbonate Junction Boxes?

Appleton lists 12 catalog numbers in this series:

BJE1TN4P16, BJE1TA4M20, BJE2TN3M20, BJE2TN4M20, BJE2TN3M25, BJE2TN4M25, BJE2TA4M20, BJE2TA4M25, 737EM2T15, 737EM2T25, 737EM3T25, 737EM3T35

How do I request a quote for the Appleton BJE Series Octagonal Polycarbonate Junction Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
