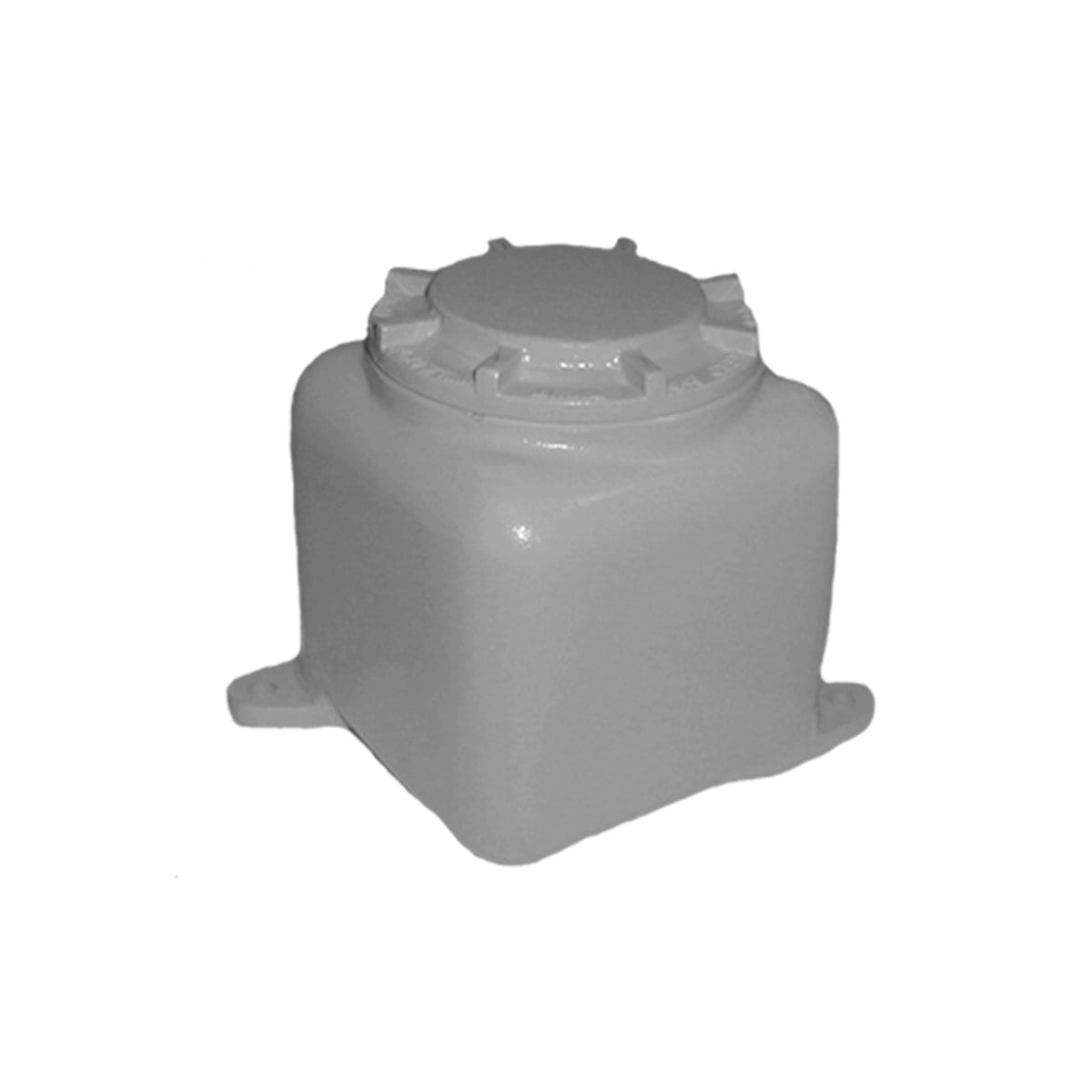

Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures

What are Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures?

Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures are used to pull or splice wires and/or to mount and enclose electrical devices in hazardous locations. They are ideal for use in indoor, outdoor, wet, or corrosive environments where hazardous materials are handled or stored. These explosionproof, dust-ignitionproof enclosures are designed with a precision threaded flame path between the box and the cover. An O-ring gasket is provided to seal out moisture, dust, oil, dirt etc. All enclosures feature a large cover opening for easy access and cast mounting feet. Models are available with solid or window covers to accommodate different application requirements.

What are the key features of the Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures?

• AGUB and NGUB are cULus Classified and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with an O-ring.

What are the specifications of the Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures?

Environment: Hazardous (Classified) Locations
Product type and listings: NEC Explosionproof, CEC Explosionproof, Junction Box, ATEX Flameproof, IECEx Flameproof
Enclosure material: Copperfree Aluminum
Cover material: Copperfree Aluminum

Which Appleton catalog numbers belong to the AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures?

Appleton lists 64 catalog numbers in this series:

AGK25, AGUB10105A, AGUB10106A, AGUB10108A, AGUB1093A, AGUB121212A, AGUB12128A, AGUB443A, AGUB555A, AGUB664A, AGUB976A, AGUB984A, AGUBSW10105A, AGUBSW10106A, AGUBSW10108A, AGUBSW1093A, AGUBSW121212A, AGUBSW12128A, AGUBSW443A, AGUBSW555A, AGUBSW664A, AGUBSW976A, AGUBSW984A, AMPA10105, AMPA1093, AMPA121212, AMPA12128, AMPA443, AMPA555, AMPA976, AMPA984, AMPG10105, AMPG10106, AMPG121212, AMPG12128, AMPG443, AMPG555, AMPG976, AMPG984, ASW10106A, NGUB10105, NGUB10105A, NGUB10106A, NGUB10108A, NGUB1093A, NGUB121212A, NGUB12128A, NGUB443A, NGUB555A, NGUB664A, NGUB976A, NGUB984A, NGUBSW10105A, NGUBSW10106A, NGUBSW10108A, NGUBSW1093A, NGUBSW121212A, NGUBSW12128A, NGUBSW443A, NGUBSW555A, NGUBSW664A, NGUBSW976A, NGUBSW984A, NSW10106A

How do I request a quote for the Appleton AGUB and O-Z/Gedney NGUB Instrument and Meter Enclosures?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
