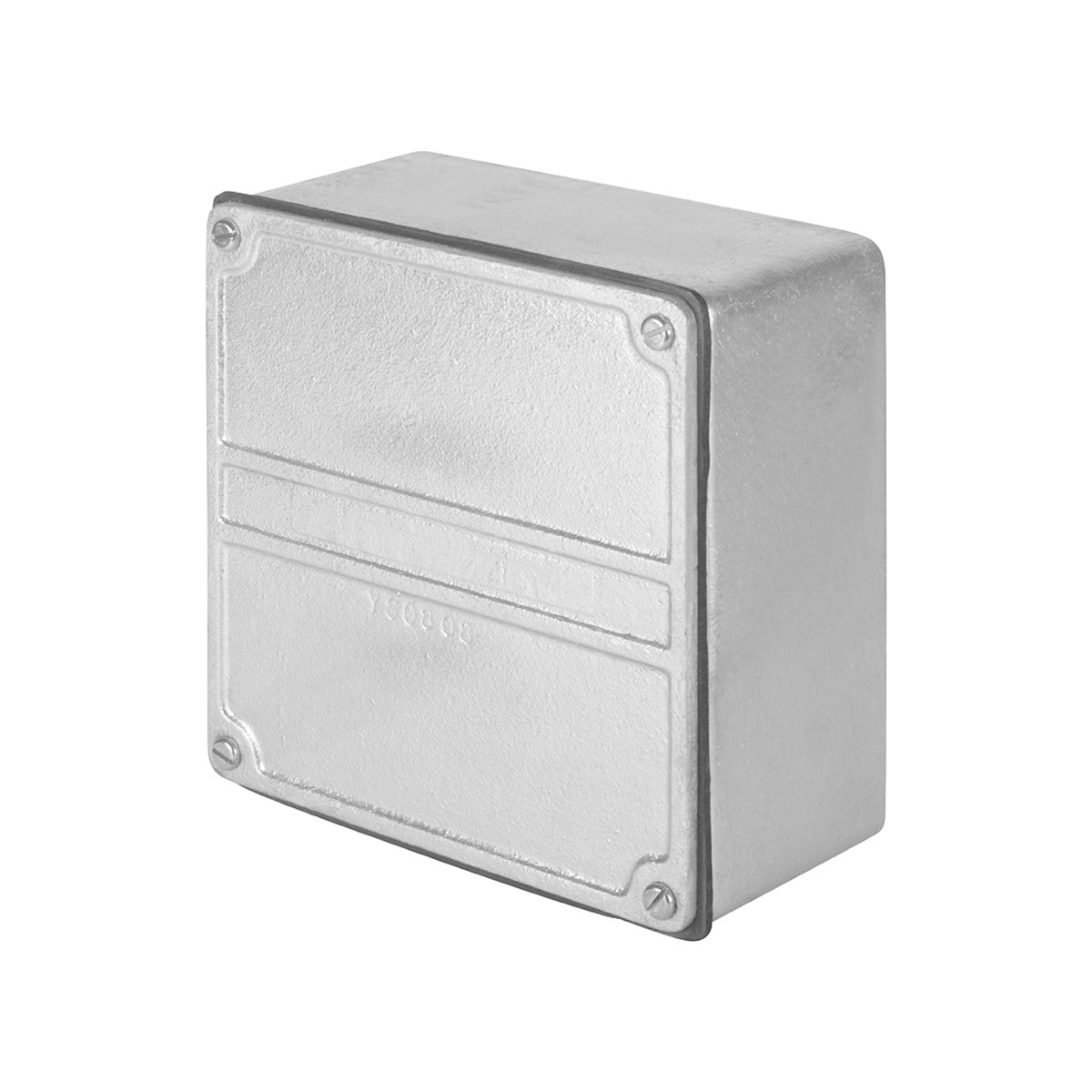

Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes

What are Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes?

Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes are designed for surface mounting and serve as intermediate pulling and splicing points in a conduit system. They are ideal for use to protect personnel against accidental contact with enclosed electrical devices or connections and to protect the enclosed devices or connections against external conditions. These raintight, watertight, dust-tight, cast iron, Type 4 boxes are ideal for use in indoor or outdoor environments and are suitable for installations subjected to rain, dripping or splashing water or hose-directed water. The WYS and YS boxes are available in several sizes with custom drilling, tapping, and mounting lug options.

What are the key features of the Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes?

• WYS and YS are UL Listed and CSA Certified for use in for Ordinary (Unclassified) Locations and CSA Certified for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit. Supplied with cover gasket.

What are the specifications of the Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Junction Box, Cast Junction Box, NEC Weatherproof, CEC Weatherproof
Enclosure material: Iron
Cover material: Iron

Which Appleton catalog numbers belong to the WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes?

Appleton lists 29 catalog numbers in this series:

WYS040404, WYS060604, WYS080804, WYS080806, WYS080806A, WYS101004, WYS121208, WYS161208, WYS181210, WYS181806, WYS181812, YS040404, YS0404C, YS0404CGH, YS060604, YS0606CGH, YS080804, YS080806, YS0808CGH, YS0808G, YS101004, YS1010CGH, YS121208, YS1212CGH, YS161208, YS1612CGH, YS181210, YS181806, YS181812

How do I request a quote for the Appleton WYS and O-Z/Gedney YS Type Unflanged Junction or Pull Boxes?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
