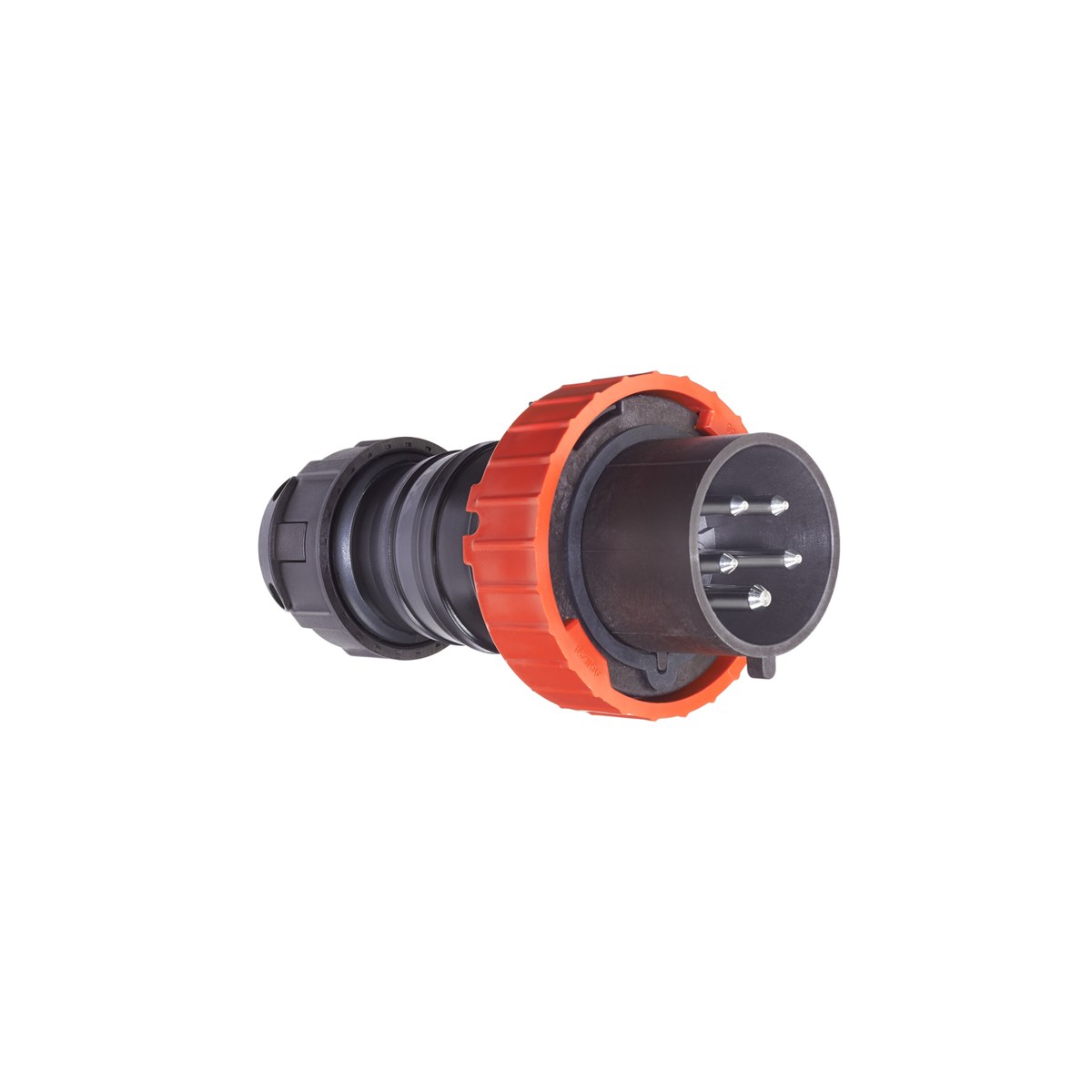

Appleton UPR Series 32 Amp Plugs and Sockets

What are Appleton UPR Series 32 Amp Plugs and Sockets?

Appleton UPR Series 32 Amp Plugs and Sockets are ideal for use where an increased safety (Ex e) socket is required for use with portable or stationery electrical equipment such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, and pumps. Plug and socket system is designed with a mechanical interlock to ensure disengagement cannot occur while energized. A large ON/OFF actuator on the receptacle gives clear, visible indication of the receptacle status for maximum hazardous location protection. This low voltage receptacle can be locked in either the 0 (Off) or 1 (On) position. Each voltage model is color coded for easy identification. For added safety the receptacles are keyed to accept only UPR plugs of the proper voltage.

What are the key features of the Appleton UPR Series 32 Amp Plugs and Sockets?

• UPR is ATEX, IECEx, and INMETRO Certified for use in Hazardous (Classified) Locations.
• 100/130, 200/250, 380/415, 480/500, or 600/690 Vac. 32 Amp.

What are the specifications of the Appleton UPR Series 32 Amp Plugs and Sockets?

Environment: Hazardous (Classified) Locations
Voltage: 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac
Amperage: 32 Amp

Which Appleton catalog numbers belong to the UPR Series 32 Amp Plugs and Sockets?

Appleton lists 18 catalog numbers in this series:

UPR332PB6, UPR332PY4, UPR332RB6, UPR332RY4, UPR432PB9, UPR432PN5, UPR432PN7, UPR432PR6, UPR432RB9, UPR432RN5, UPR432RN7, UPR432RR6, UPR532PB9, UPR532PN7, UPR532PR6, UPR532RB9, UPR532RN7, UPR532RR6

How do I request a quote for the Appleton UPR Series 32 Amp Plugs and Sockets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
