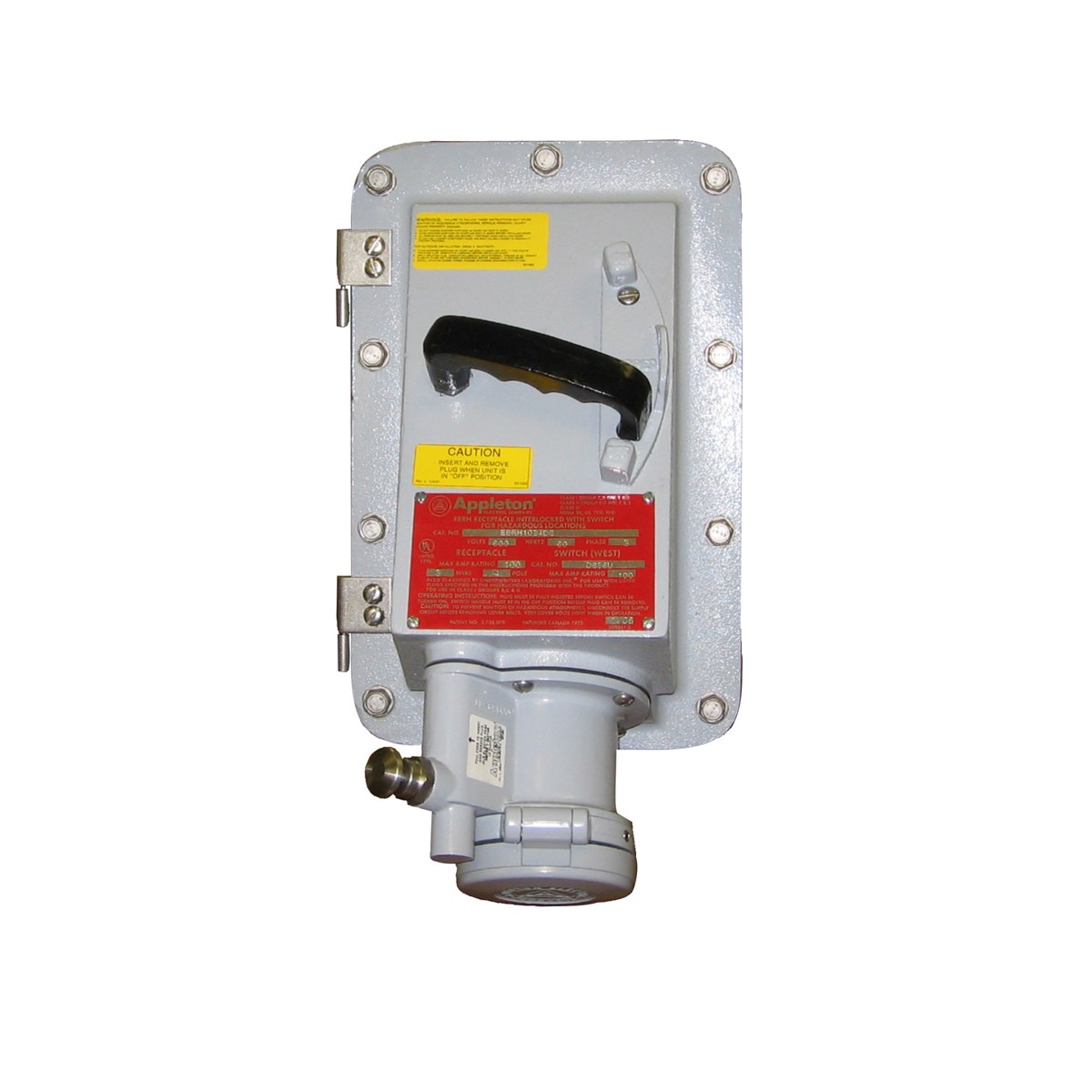

Appleton NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles

What are Appleton NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles?

Appleton EBR Series Receptacles are ideal for use with stationary or portable electrically operated devices in environments where damp or corrosive conditions exist and locations where ignitable amounts of dust are present. The EBR can be supplied with an interlocked disconnect switch for connect and disconnect operations or an interlocked circuit breaker for short circuit and thermal time delay overload protection. These explosionproof, dust-ignitionproof, pin and sleeve receptacles provide Style 2 grounding, delayed action construction, and have deeply recessed energized contacts to reduce the danger of accidental touching. Brass contacts provide superior electrical contact, and insulators provide superior dielectric, mechanical strength and lowest arc tracking. The neoprene bushing prevents water entry, and the receptacles spring door keeps dust out. The ACP and CPH plugs have mechanical cable clamps to prevent strain on cables. Simple to operate, insert the plug and turn the breaker handle to “ON” position, or turn the handle to the “OFF” position, lift the plug release knob and pull the plug out.

What are the key features of the Appleton NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles?

• EBR is UL Listed for use in Hazardous (Classified) Locations.
• 600 Vac or 250 Vdc. 30, 60, 100 or 150 Amp.
• Appleton EBR Series Receptacles are UL Classified for use with Crouse-Hinds Arktite plugs.

What are the specifications of the Appleton NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles?

Environment: Hazardous (Classified) Locations
Voltage: 250 Vdc, 600 Vac
Amperage: 30 Amp, 60 Amp, 100 Amp, 150 Amp

Which Appleton catalog numbers belong to the NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles?

Appleton lists 132 catalog numbers in this series:

EBR1023EH100, EBR1023EH70, EBR1023FB100, EBR1023FB50, EBR1023HFB100, EBR1034EH100, EBR1034EH10022, EBR1034EH100GB, EBR1034EH100P4, EBR1034EH100TB, EBR1034EH70, EBR1034EH70DV, EBR1034EH70GB, EBR1034EH90, EBR1034FB100, EBR1034FB100GB, EBR1034FB70, EBR1034FB90, EBR1034FD1022DV, EBR1034HFB100, EBR1034HFB100GB, EBR1034HFB70, EBR1034HFB90, EBR1034HFB90GB, EBR15034FD100, EBR15034FD100K, EBR15034FD125, EBR15034FD12522, EBR15034FD125K, EBR15034FD150, EBR15034FD15022, EBR15034FD150GB, EBR15034FD150K, EBR15034FD150W, EBR1534FD150GBK, EBR3023EH20, EBR3023EH30, EBR3023EH50, EBR3023FB30, EBR3023HFB30, EBR3023HFB50, EBR3034EH20, EBR3034EH30, EBR3034EH30AUX, EBR3034EH30GB, EBR3034EH30P4, EBR3034EH40, EBR3034EH40P4, EBR3034EH50, EBR3034EH50GB, EBR3034EHD30W, EBR3034FB20, EBR3034FB30, EBR3034FB40, EBR3034FB50, EBR3034HFB20, EBR3034HFB30, EBR3034HFB40, EBR3034HFB50, EBR6023EH50, EBR6023EH60, EBR6023EH70, EBR6023FB100, EBR6023FB60, EBR6023HFB50, EBR6034EH100, EBR6034EH100GB, EBR6034EH50, EBR6034EH50GB, EBR6034EH50P4, EBR6034EH60, EBR6034EH6022, EBR6034EH60GB, EBR6034EH60GB22, EBR6034EH60GBDV, EBR6034EH70, EBR6034EH70GBDV, EBR6034EH70P4, EBR6034EH90, EBR6034EHGE60, EBR6034EHGE60GB, EBR6034FB100, EBR6034FB50, EBR6034FB60, EBR6034FB60GB, EBR6034FB70, EBR6034FBGE60, EBR6034FD6022DV, EBR6034HFB50, EBR6034HFB50GB, EBR6034HFB60, EBR6034HFB60200, EBR6034HFB60GB, EBR6034HFB70, EBR6034HFB7022, EBR6034HFB70GB, EBR6034HFB90, EBR6034HFD60W, EBRH1023DS, EBRH1023DSP4, EBRH1034DS, EBRH1034DSGB, EBRH1034DSP4, EBRH3023DS, EBRH3023DSGB, EBRH3023DSP4, EBRH3034DS, EBRH3034DSAUX, EBRH3034DSAUXCN, EBRH3034DSGB, EBRH3034DSP4, EBRH3034DSP4AUX, EBRH6023DS, EBRH6023DSGB, EBRH6023DSP4, EBRH6034DS, EBRH6034DSAUX, EBRH6034DSDV, EBRH6034DSGB, EBRH6034DSP4, EBRH6034DSP4AUX, EBRI6034, EBRK1034, EBRK1034P4, EBRK15034FD125, EBRK15034FD150, EBRK3034, EBRK3034P4, EBRK6034, EBRK6034HFB70, EBRKIT1, SP10958101

How do I request a quote for the Appleton NEC EBR 30, 60, 100 and 150 Amp Series Interlocked Receptacles?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
