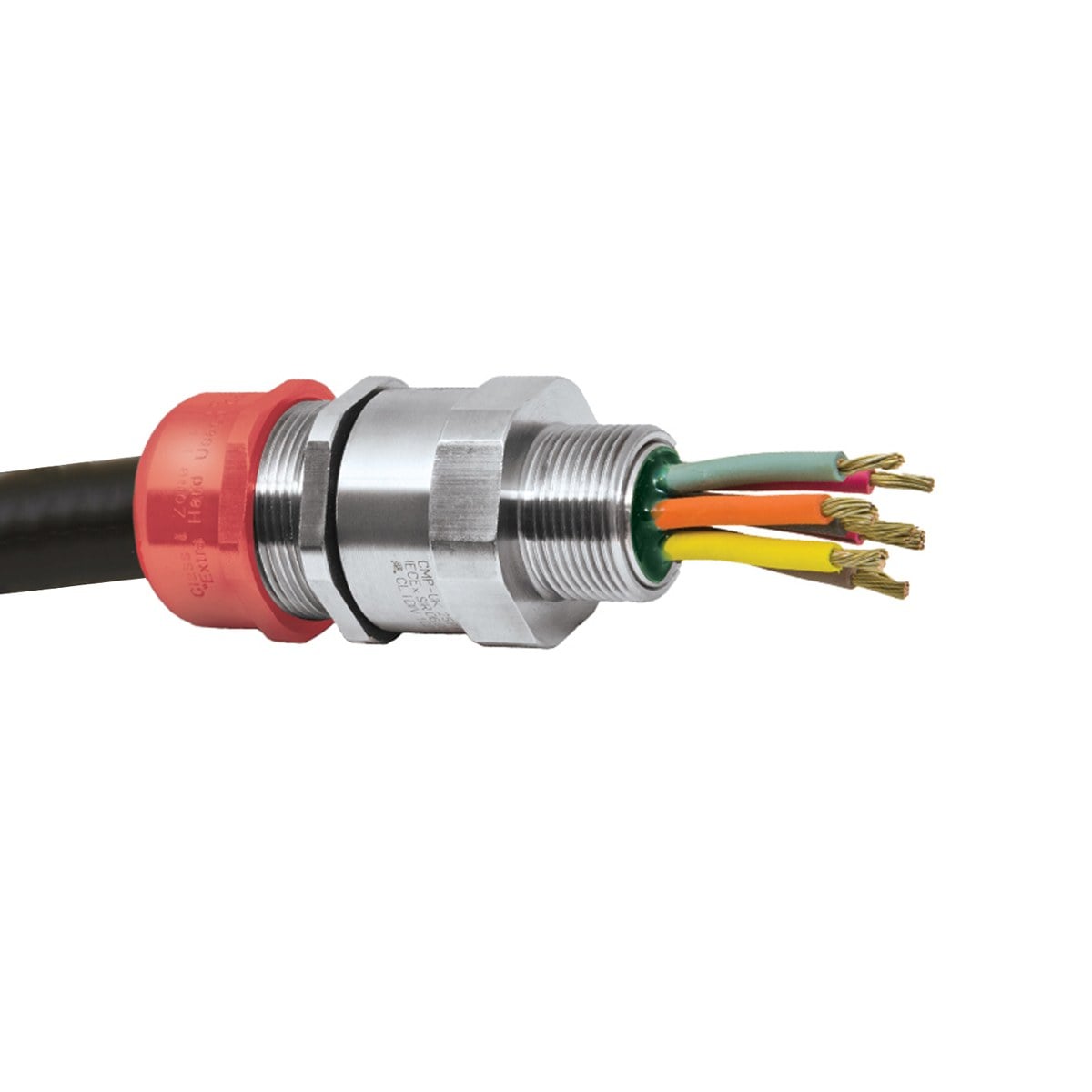

Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector

What is the Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector?

Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector are for use with unarmored, extra hard usage, tray (TC) and shipboard cable to terminate an Ex d (flameproof IIB or IIC), Ex e (increased safety), Ex nR (restricted breathing), Ex d (flameproof), hazardous area (gas and dust), onshore, or open-sea pipeline certified enclosure. PX-REX provides an environmental seal on the cable jacket and an explosionproof liquid resin barrier seal around the cable inner cores. It utilizes RapidEx high speed liquid resin sealing compound that vastly reduces installation time and associated costs. This solution is particularly effective on multicore cables where traditional compound is difficult and time consuming to apply.

What are the key features of the Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector?

• PX-REX (PXSS2K-REX) is cCSAus, ATEX, IECEx, UKEX, INMETRO, and EAC Certified for use in Hazardous (Classified) Locations. Other certifications are available.
• For use with unarmored, extra hard usage, tray (TC) and shipboard cables.

What are the specifications of the Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector?

Environment: Hazardous (Classified) Locations
Product type and listings: Cable Connector
Materials: Aluminum, Stainless Steel, Nickel Plated Brass
Used with: Tray Cable, Shipboard Cable

Which Appleton catalog numbers belong to the PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector?

Appleton lists 43 catalog numbers in this series:

2016SPXREX0505X, 2016SS2K0505, 20LPXREX0505X, 20LPXREX0755X, 20LPXREX5X, 20PXREX0505X, 20PXREX0755X, 20PXREX5X, 20S16PXREX0505X, 20S16PXREX0755X, 20S16PXREX5X, 20SPXREX0505X, 20SPXREX0755X, 20SPXREX5X, 25PXREX0755X, 25PXREX075X, 25PXREX1005X, 25PXREX5X, 32LPXREX1005X, 32LPXREX5X, 32PXREX1004, 32PXREX1005X, 32PXREX1255X, 32PXREX5X, 40PXREX1255X, 40PXREX5X, 50PXREX2005X, 50PXREX2505X, 50PXREX5X, 50SPXREX1505X, 50SPXREX2005X, 50SPXREX5X, 63PXREX2505X, 63PXREX5X, 63SPXREX2005X, 63SPXREX2505X, 63SPXREX5X, 75PXREX3005X, 75PXREX5X, 75SPXREX2505X, 75SPXREX5X, 90PXREX3505X, 90PXREX5X

How do I request a quote for the Appleton PX-REX (PXSS2K-REX) Series Liquid Resin Barrier Type Cable Connector?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
