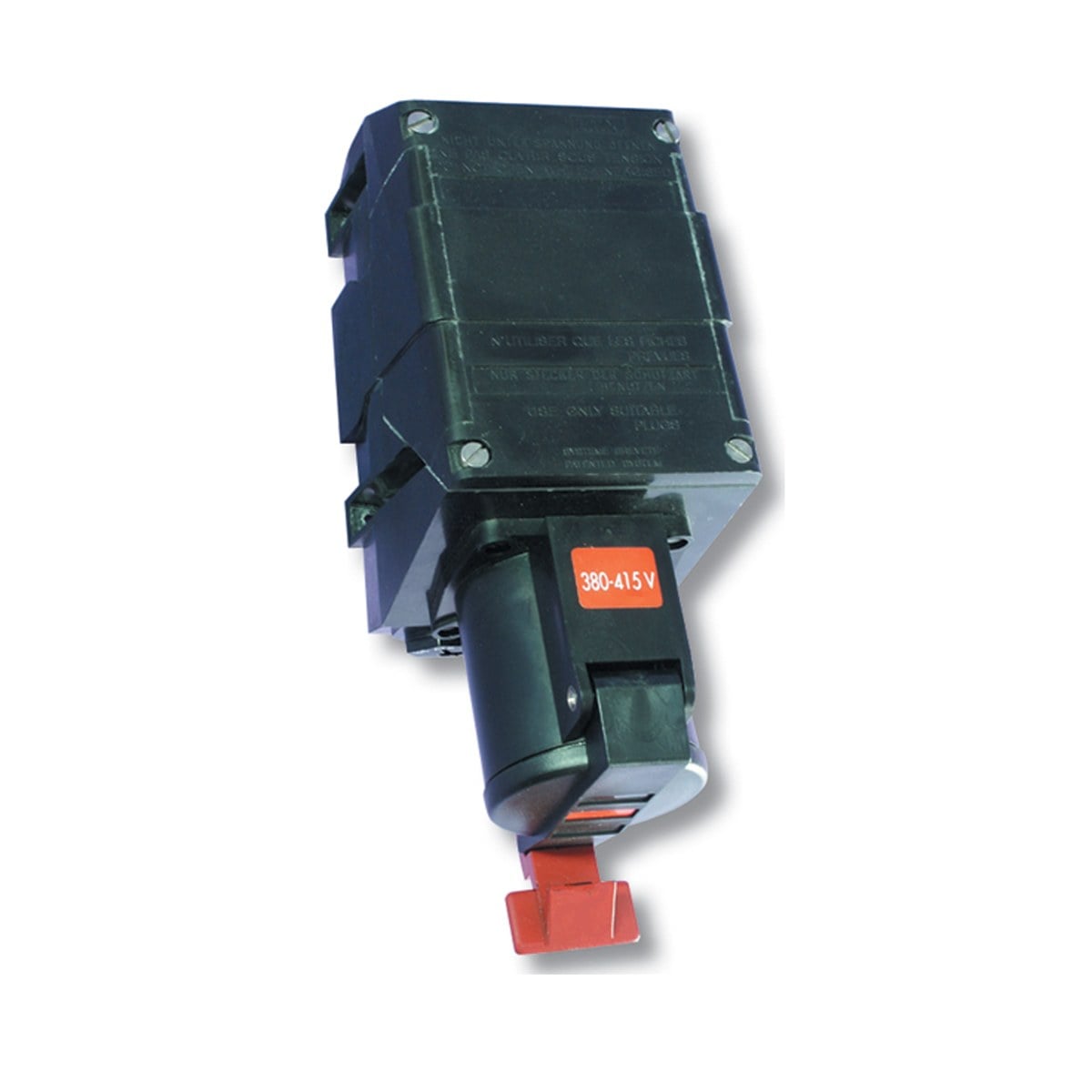

Appleton PRE Series 32 Amp Plugs and Sockets

Name: Appleton PRE Series 32 Amp Plugs and Sockets | Appleton PRE Plugs and Receptacles | Emerson Appleton | PE Energy
Brand: Appleton
SKU: APPLETON-PRE-32A
Rating: 5 (1 reviews)

Appleton PRE Series 32 Amp Plugs and Sockets. Appleton plug and receptacle series with 20 catalog numbers. Quote-only: request a quote by catalog number.

SKU: APPLETON-PRE-32A

Manufacturer:

Appleton

Bulk Orders

Competitive Pricing

Short Lead Times

Consolidated Shipping

Prompt Response

Request a Quote

Description
Reviews (0)

What are Appleton PRE Series 32 Amp Plugs and Sockets?

Appleton ATX PRE Series 32 Amp Plugs and Sockets are ideal for use where an increased safety (Ex e) socket is required for use with portable or stationery electrical equipment such as lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, and pumps. Plug and socket assembly is designed with a safe disconnect mechanism to ensure maximum hazardous location protection in damp, wet or corrosive environments. The sockets are available in wall-mount, flush-mount and mobile versions. The PRE is designed so that the contact separation is in a flameproof chamber, while the automatic electrical disconnection of each phase is contained in a second flameproof chamber. They have a short circuit protection of 20 kA, while normal reference is 10 kA. Each voltage model is color coded for easy identification. For added safety the receptacles are keyed to accept only ATX plugs (other plugs cannot be accidently inserted).

What are the key features of the Appleton PRE Series 32 Amp Plugs and Sockets?

PRE is ATEX, IECEx, and INMETRO Certified for use in Hazardous (Classified) Locations.
100/130, 200/250, 380/415, or 480/500 Vac. 32 Amp.

What are the specifications of the Appleton PRE Series 32 Amp Plugs and Sockets?

Environment: Hazardous (Classified) Locations
Voltage: 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac
Amperage: 32 Amp

Which Appleton catalog numbers belong to the PRE Series 32 Amp Plugs and Sockets?

Appleton lists 20 catalog numbers in this series:

PRE332MY, PRE332PB, PRE332PY, PRE332RB, PRE332RY, PRE432FB, PRE432MB, PRE432MN, PRE432MR, PRE432PB, PRE432PN, PRE432PR, PRE432RB, PRE432RN, PRE432RR, PRE532PB, PRE532PR, PRE532RB, PRE532RR, PREESTM25

How do I request a quote for the Appleton PRE Series 32 Amp Plugs and Sockets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
