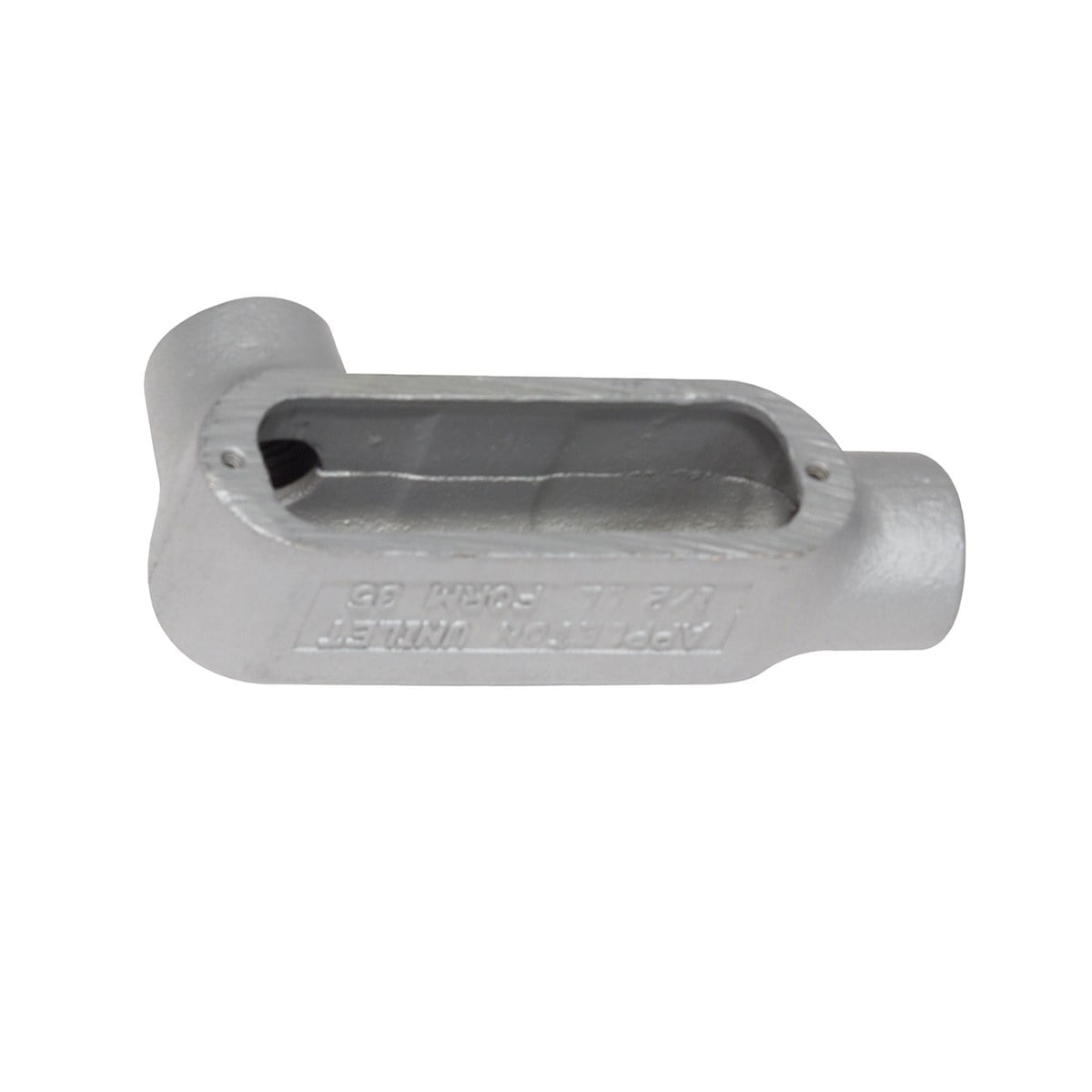

Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets

What are Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets?

Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance. They have accurately tapped, tapered threads for tight, rigid joints and ground continuity. A smooth, rounded integral bushing in each hub protects conductor insulation. 1-1/4-to-4-inch models of Type C and LB feature exclusive, built-in, easy-pulling rollers to eliminate damage to cables when they are pulled through the hubs. 1/2-to-3-inch blank covers are domed for extra wiring space. Select models feature a flat-back design for mounting flat against a surface.

What are the key features of the Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets?

• Form 35 is UL Listed and CSA Certified for use in Ordinary (Unclassified) Locations. They are suitable for use in Hazardous (Classified) Locations.
• For use with rigid steel, rigid aluminum, and IMC conduit.

What are the specifications of the Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets?

Environment: Hazardous (Classified) Locations, Ordinary (Unclassified) Locations
Product type and listings: Conduit Body, Conduit Body Cover, Conduit Body Cover Gasket
Materials: Iron
Used with: IMC, Rigid Aluminum Conduit, Rigid Steel Conduit

Which Appleton catalog numbers belong to the Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets?

Appleton lists 126 catalog numbers in this series:

BC125150, BC250300, C100M, C125M, C150M, C200M, C250M, C300M, C350M, C400M, C50M, C75M, E100M, E125M, E150M, E50M, E75M, GK100N, GK100V, GK125150N, GK125150V, GK200N, GK200V, GK250300N, GK250300V, GK350400N, GK350400V, GK500SN, GK50N, GK50V, GK600SN, GK75N, GK75V, K100, K100CM, K125150, K125150CM, K200, K200CM, K250300, K250300CM, K350400, K350400CM, K50, K500, K50CM, K600, K75, K75CM, KK100, KK50, KK75, LB100M, LB125M, LB150M, LB200M, LB250M, LB300M, LB350M, LB400M, LB500M, LB50M, LB75M, LL100M, LL125M, LL150M, LL200M, LL250M, LL300M, LL350M, LL400M, LL50M, LL75M, LR100CG, LR100M, LR125CG, LR125M, LR150CG, LR150M, LR200CG, LR200M, LR250M, LR300M, LR350M, LR400M, LR50CG, LR50M, LR75CG, LR75M, LRL100M, LRL125M, LRL150M, LRL200M, LRL50M, LRL75M, T100M, T125M, T150M, T200M, T250M, T300M, T350M, T400M, T50M, T75M, TA100M, TA50M, TA75M, TB100CG, TB100M, TB125CG, TB125M, TB150CG, TB150M, TB200CG, TB200M, TB50CG, TB50M, TB75M, X100CG, X100M, X125M, X150M, X200M, X50M, X75M

How do I request a quote for the Appleton Form 35 Malleable Iron Conduit Outlet Bodies, Covers, and Gaskets?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
