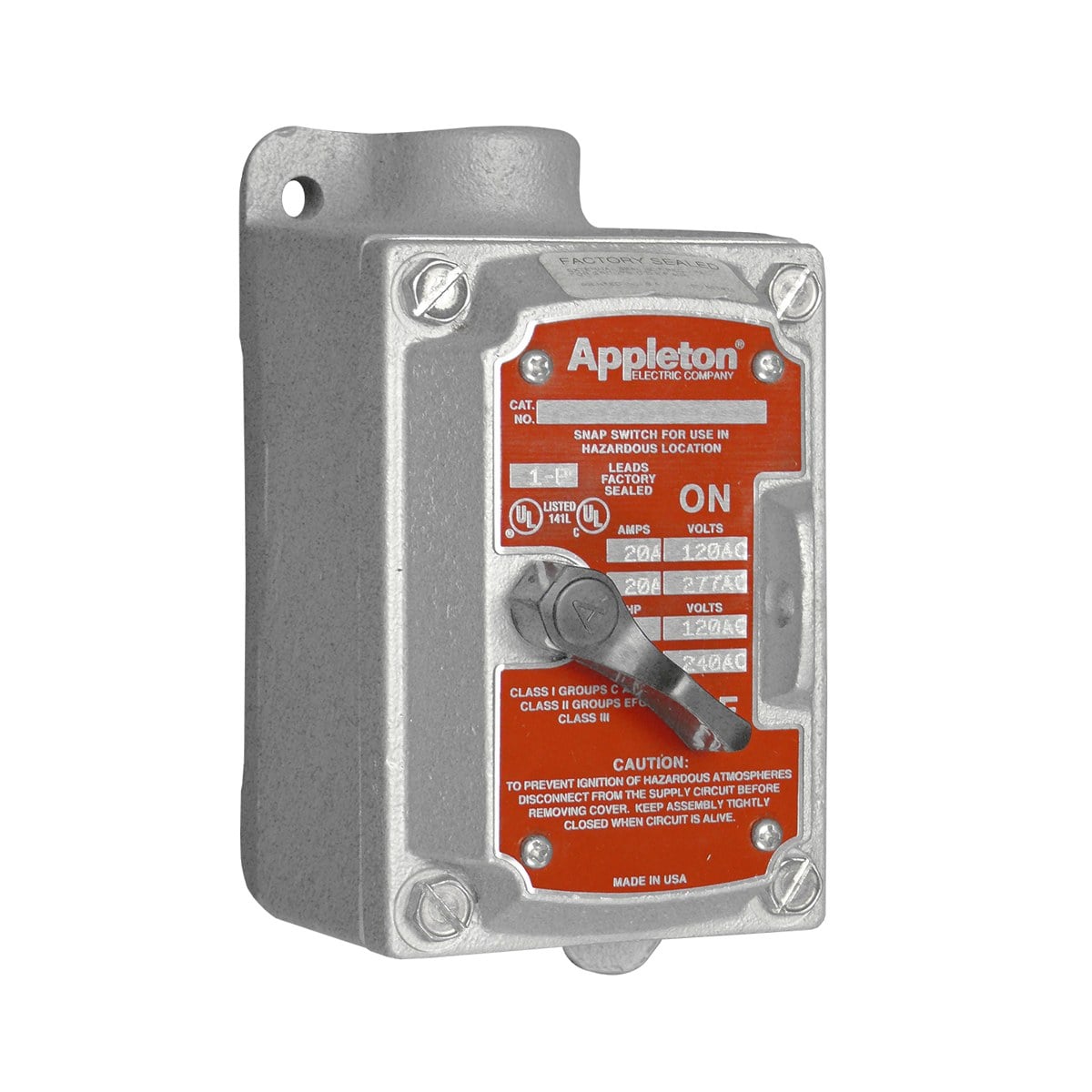

Appleton Contender Series Factory Sealed Front Operated Tumbler Switches

What are Appleton Contender Series Factory Sealed Front Operated Tumbler Switches?

Appleton Contender Series Factory Sealed Front Operated Tumbler Switches are designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads. These explosionproof, dust-ignitionproof tumbler switches are ideal for use in classified areas where ignitable vapors, gases or highly combustible dusts are present. 20- and 30-Amp units are available for use with 120-277 Vac. They are available with either a front-operating or side rocker arm handle which may be locked in the ON or OFF position. Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure. Enclosures have external mounting lugs for ease of mounting and a smooth, rounded integral bushing in each hub protects conductor insulation.

What are the key features of the Appleton Contender Series Factory Sealed Front Operated Tumbler Switches?

• Contender is cULus Listed for use in Hazardous (Classified) Locations.
• For use with threaded metal conduit.

What are the specifications of the Appleton Contender Series Factory Sealed Front Operated Tumbler Switches?

Environment: Hazardous (Classified) Locations
Product type and listings: Control Station, Control Switch
Enclosure material: Iron
Cover material: Iron
Operator type: Selector Switch

Which Appleton catalog numbers belong to the Contender Series Factory Sealed Front Operated Tumbler Switches?

Appleton lists 131 catalog numbers in this series:

EDS1129, EDS1129SA, EDS1130, EDS1130SA, EDS1140, EDS1140SA, EDS118, EDS118SA, EDS1229, EDS1229SA, EDS1230, EDS128, EDS150F1A, EDS150F2A, EDS150F3WA, EDS175F13A, EDS175F23A, EDS175F3W3A, EDS175F3WA, EDS175F4WA, EDS175R1A, EDS175R23A, EDS2129, EDS2129SA, EDS2130, EDS2130SA, EDS2140, EDS2140SA, EDS218, EDS218SA, EDS2229, EDS2229SA, EDS2230, EDS2230SA, EDS2240, EDS228, EDS3129, EDS3129SA, EDS3130, EDS3130SA, EDS3140, EDS3140SA, EDS318, EDS318SA, EDS3229, EDS3229SA, EDS3230, EDS3230SA, EDS3240, EDS3240SA, EDS328, EDS328SA, EDS3591, EDS3591SA, EDS3593, EDS3593NPBRKT, EDS3593SA, EDS3594, EDS3594SA, EDSC1129, EDSC1129SA, EDSC1130, EDSC1130SA, EDSC1140, EDSC1140SA, EDSC118, EDSC118SA, EDSC1229, EDSC1230, EDSC1230SA, EDSC1240, EDSC1240SA, EDSC128, EDSC128SA, EDSC2129, EDSC2129SA, EDSC2130, EDSC2130SA, EDSC2140, EDSC2140SA, EDSC218, EDSC218SA, EDSC2229, EDSC2229SA, EDSC2230, EDSC2230SA, EDSC2240, EDSC2240SA, EDSC228, EDSC3129, EDSC3129SA, EDSC3130, EDSC3130SA, EDSC3140, EDSC3140SA, EDSC318, EDSC318SA, EDSC3229, EDSC3229SA, EDSC3230, EDSC3230SA, EDSC3240, EDSC3240SA, EDSC328, EDSC328SA, EDSC3591, EDSC3591SA, EDSC3593, EDSC3593SA, EDSC3594, EDSC3594SA, EDSF12, EDSF12A, EDSF21AQ, EDSF21Q, EDSF22AQ, EDSF22Q, EDSF23WAQ, EDSF23WQ, EDSF24WAQ, EDSF24WQ, EDSF31AQ, EDSF31Q, EDSF32AQ, EDSF32Q, EDSF33WAQ, EDSF33WQ, EDSF34W, LAB21, LAB22, LAB23W

How do I request a quote for the Appleton Contender Series Factory Sealed Front Operated Tumbler Switches?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
