Appleton APPFT 25kAIC Power Distribution Panelboards

What are Appleton APPFT 25kAIC Power Distribution Panelboards?

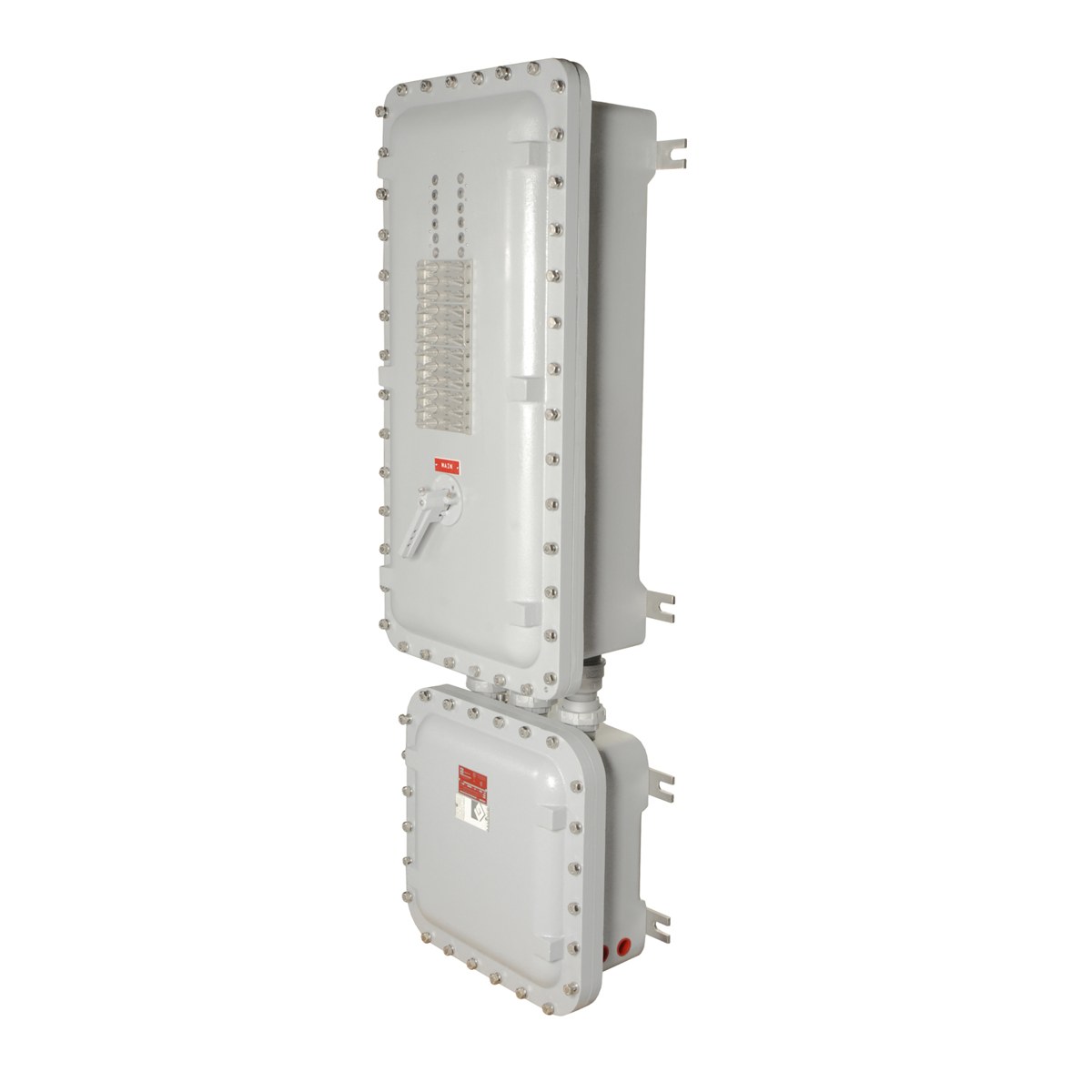

Appleton APPFT 25kAIC Power Distribution Panelboards are used to furnish protection and control of electrical equipment. Ideal for use in hazardous locations, the explosionproof, dust-ignitionproof, watertight panelboard provides a centrally controlled switching system for large quantities of branch circuits for lighting, heating, small motors, and other similar electrical equipment. The breaker operators can be locked in the ON or OFF position. They are designed with a precision machined flamepath between the box and cover. Breakers are housed in the panel section and prewired to maximum circuit capacity, then wired to numbered terminals in the wiring compartment. The terminal compartment is interconnected to panel section with sealing hubs, unions and poured with sealing compound.

What are the key features of the Appleton APPFT 25kAIC Power Distribution Panelboards?

• APPFT 25kAIC is UL Classified for use in Hazardous (Classified) Locations.
• 400, 277/480 Vac, or 24, or 125/250 Vdc. 100 or 225 Amp.

What are the specifications of the Appleton APPFT 25kAIC Power Distribution Panelboards?

Environment: Hazardous (Classified) Locations
Product type and listings: External Operation, Explosionproof, Dust-ignitionproof, Watertight, Distribution Panelboards
Voltage: 24 Vdc, 125/250 Vdc, 400 Vac, 277/480 Vac
Amperage: 100 Amp, 225 Amp

How do I request a quote for the Appleton APPFT 25kAIC Power Distribution Panelboards?

Request a quote with the Appleton catalog number or your specification and the quantity. We confirm price, availability and lead time with the quote.
