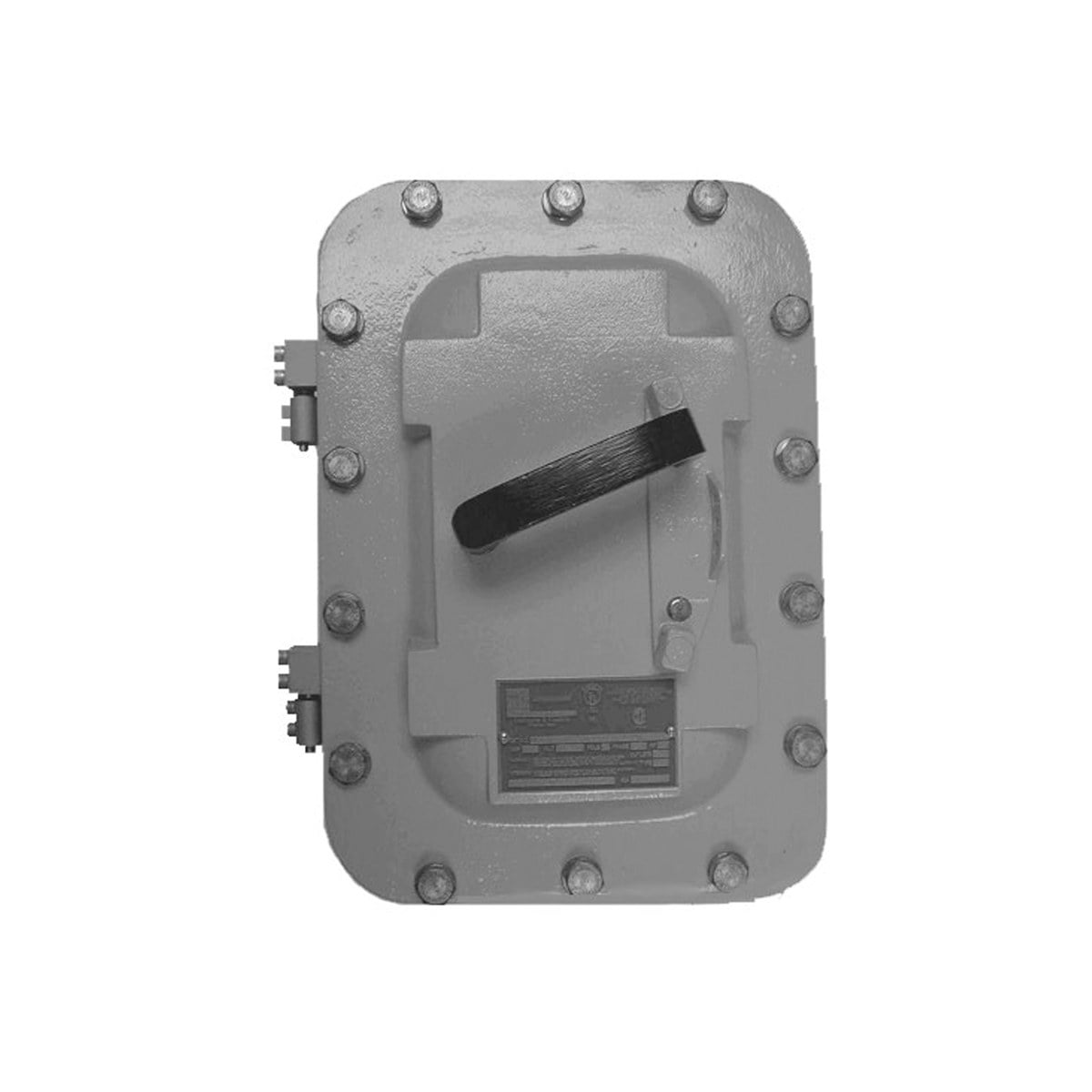

Appleton AETB 25KAIC Bolted Molded Case Circuit Breaker

What is the Appleton AETB 25KAIC Bolted Molded Case Circuit Breaker?

Appleton AETB 25KAIC Bolted Molded Case Circuit Breakers are used for overload and short circuit protection, control of lighting and power circuits. Ideal for use where hazardous materials are handled or stored, the explosionproof, dust-ignitionproof, watertight enclosure is designed with a precision machined flamepath between the box and cover. The external operating handle is equipped with stops for limiting handle travel and the breaker operators can be locked in the ON or OFF position (up to 3 padlocks). There are standard outlets at the top and bottom for line and load wiring, and the disconnects are mounted on a galvanized steel removable pan.

What are the key features of the Appleton AETB 25KAIC Bolted Molded Case Circuit Breaker?

• AETB 25KAIC is UL Classified for use in Hazardous (Classified) Locations.
• 240 or 480 Vac. 240 or 480 Amp.

What are the specifications of the Appleton AETB 25KAIC Bolted Molded Case Circuit Breaker?

Environment: Hazardous (Classified) Locations
Product type and listings: Circuit Breaker, External Operation, Explosionproof, Dust-ignitionproof, Watertight
Voltage: 240 Vac, 480 Vac

Which Appleton catalog numbers belong to the AETB 25KAIC Bolted Molded Case Circuit Breaker?

Appleton lists 17 catalog numbers in this series:

AE4T, AEAT13415C, AEAT13420C, AEAT13430C, AEBT12660C, AEBT13410C, AEBT13460C, AEBT13470C, AEBT13610C, AEBT136150C, AECT, AECT23615C, AECT23620C, AECT23622C, AECT23625C, AEKT12220C, AEKT12250C

How do I request a quote for the Appleton AETB 25KAIC Bolted Molded Case Circuit Breaker?

Request a quote with the Appleton catalog number you need from the list above and the quantity. We confirm price, availability and lead time with the quote.
